TYPICAL APPLICATIO. 10MHz Reference Distribution Amplifier. RELATED PARTS. PART NUMBER. DESCRIPTION. COMMENTS
Model Line for this Datasheet
Text Version of Document
LT6550/LT6551

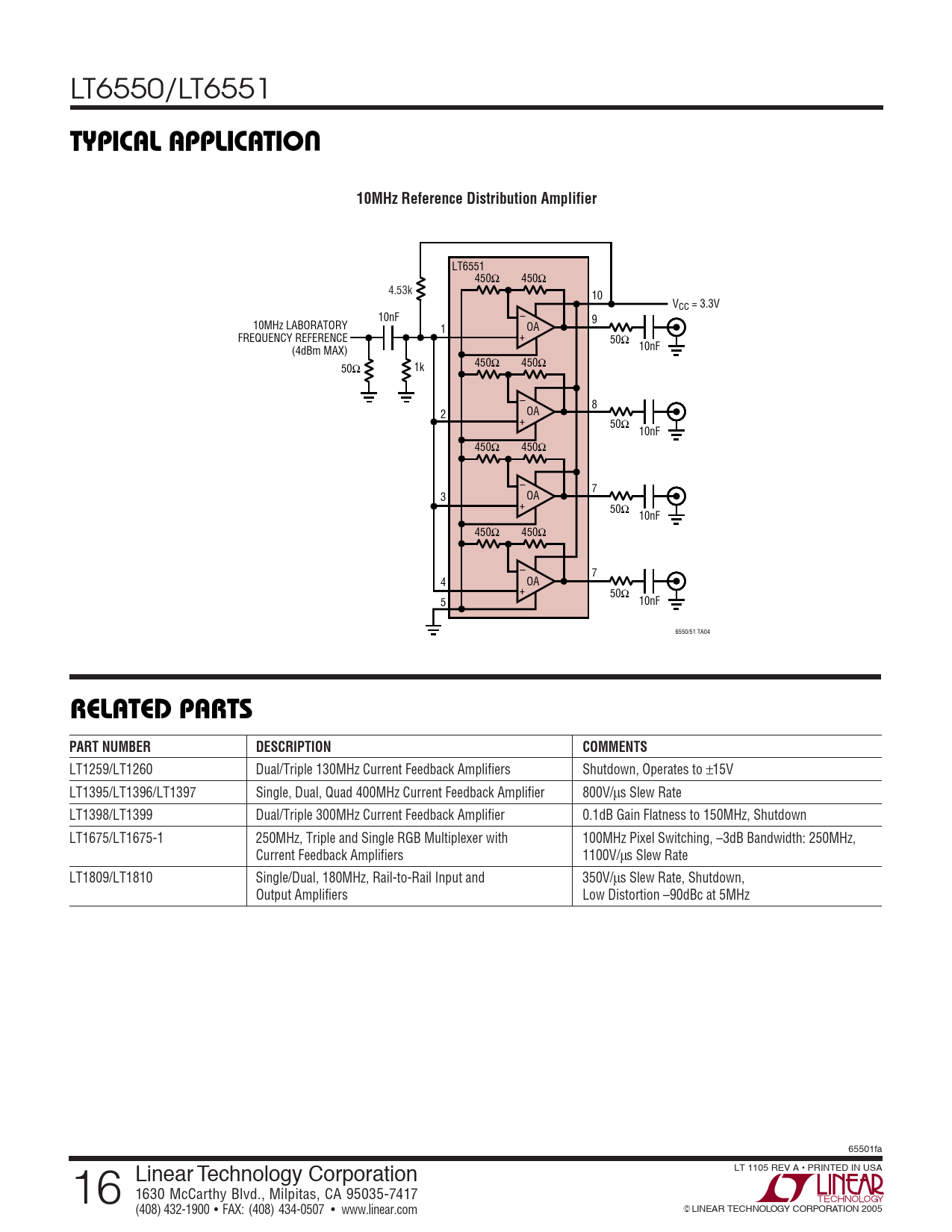

U TYPICAL APPLICATIO 10MHz Reference Distribution Amplifier
LT6551 450Ω 450Ω 4.53k 10 VCC = 3.3V 10nF – 9 10MHz LABORATORY 1 OA FREQUENCY REFERENCE + 50Ω 10nF (4dBm MAX) 450Ω 450Ω 50Ω 1k – 8 2 OA + 50Ω 10nF 450Ω 450Ω – 7 3 OA + 50Ω 10nF 450Ω 450Ω – 7 4 OA + 50Ω 5 10nF 6550/51 TA04
RELATED PARTS PART NUMBER DESCRIPTION COMMENTS
LT1259/LT1260 Dual/Triple 130MHz Current Feedback Amplifiers Shutdown, Operates to ±15V LT1395/LT1396/LT1397 Single, Dual, Quad 400MHz Current Feedback Amplifier 800V/µs Slew Rate LT1398/LT1399 Dual/Triple 300MHz Current Feedback Amplifier 0.1dB Gain Flatness to 150MHz, Shutdown LT1675/LT1675-1 250MHz, Triple and Single RGB Multiplexer with 100MHz Pixel Switching, –3dB Bandwidth: 250MHz, Current Feedback Amplifiers 1100V/µs Slew Rate LT1809/LT1810 Single/Dual, 180MHz, Rail-to-Rail Input and 350V/µs Slew Rate, Shutdown, Output Amplifiers Low Distortion –90dBc at 5MHz 65501fa LT 1105 REV A • PRINTED IN USA 16 Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com © LINEAR TECHNOLOGY CORPORATION 2005
