Datasheet LT1809, LT1810 (Analog Devices) - 22
| Manufacturer | Analog Devices |
| Description | Single/Dual 180MHz, 350V/µs Rail-to-Rail Input and Output Low Distortion Op Amps |
| Pages / Page | 24 / 22 — PACKAGE DESCRIPTION. S6 Package. 6-Lead Plastic TSOT-23 |
| File Format / Size | PDF / 301 Kb |
| Document Language | English |
PACKAGE DESCRIPTION. S6 Package. 6-Lead Plastic TSOT-23
Model Line for this Datasheet
Text Version of Document
LT1809/LT1810

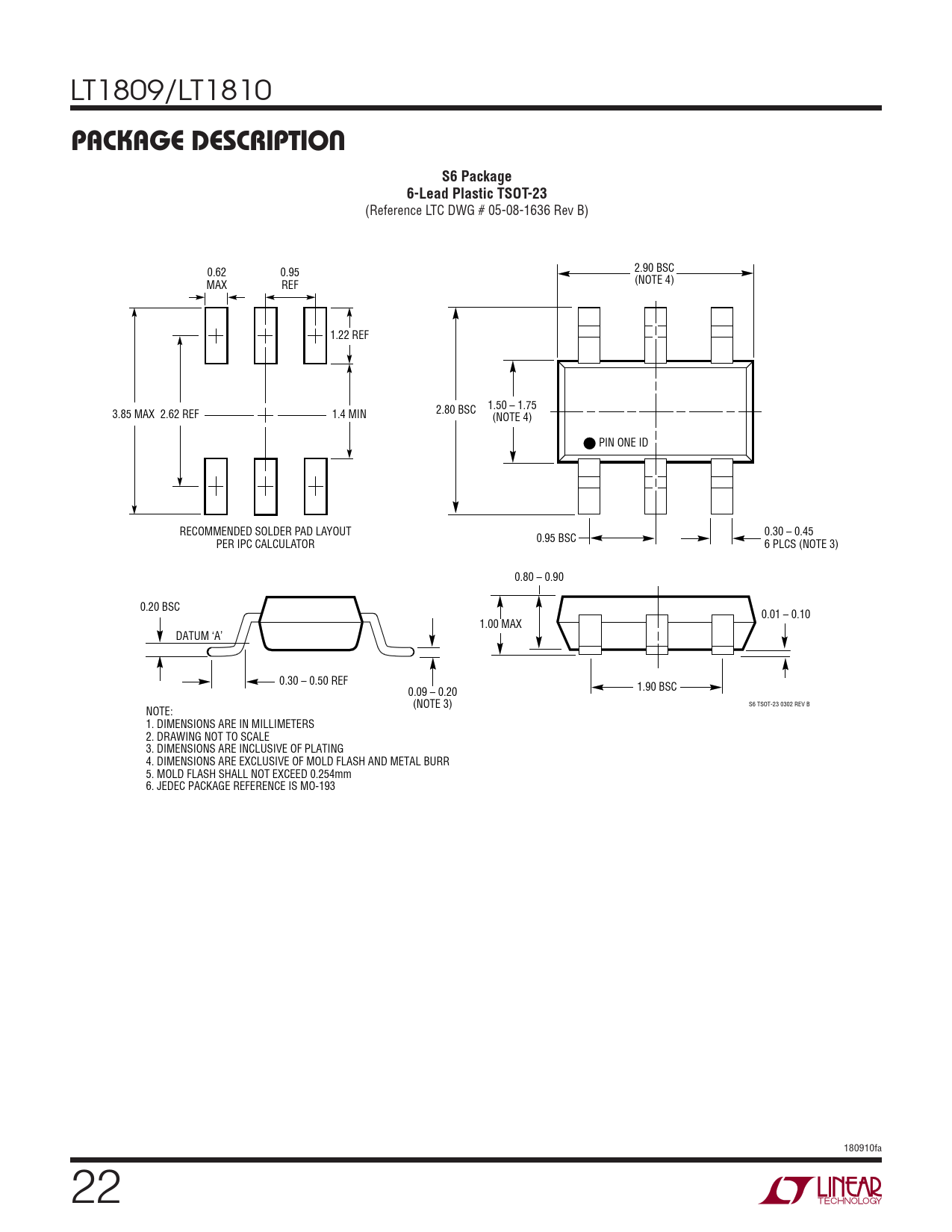

PACKAGE DESCRIPTION S6 Package 6-Lead Plastic TSOT-23
(Reference LTC DWG # 05-08-1636 Rev B) 2.90 BSC 0.62 0.95 (NOTE 4) MAX REF 1.22 REF 1.50 – 1.75 2.80 BSC 3.85 MAX 2.62 REF 1.4 MIN (NOTE 4) PIN ONE ID RECOMMENDED SOLDER PAD LAYOUT 0.30 – 0.45 0.95 BSC PER IPC CALCULATOR 6 PLCS (NOTE 3) 0.80 – 0.90 0.20 BSC 0.01 – 0.10 1.00 MAX DATUM ‘A’ 0.30 – 0.50 REF 0.09 – 0.20 1.90 BSC (NOTE 3) S6 TSOT-23 0302 REV B NOTE: 1. DIMENSIONS ARE IN MILLIMETERS 2. DRAWING NOT TO SCALE 3. DIMENSIONS ARE INCLUSIVE OF PLATING 4. DIMENSIONS ARE EXCLUSIVE OF MOLD FLASH AND METAL BURR 5. MOLD FLASH SHALL NOT EXCEED 0.254mm 6. JEDEC PACKAGE REFERENCE IS MO-193 180910fa 22
