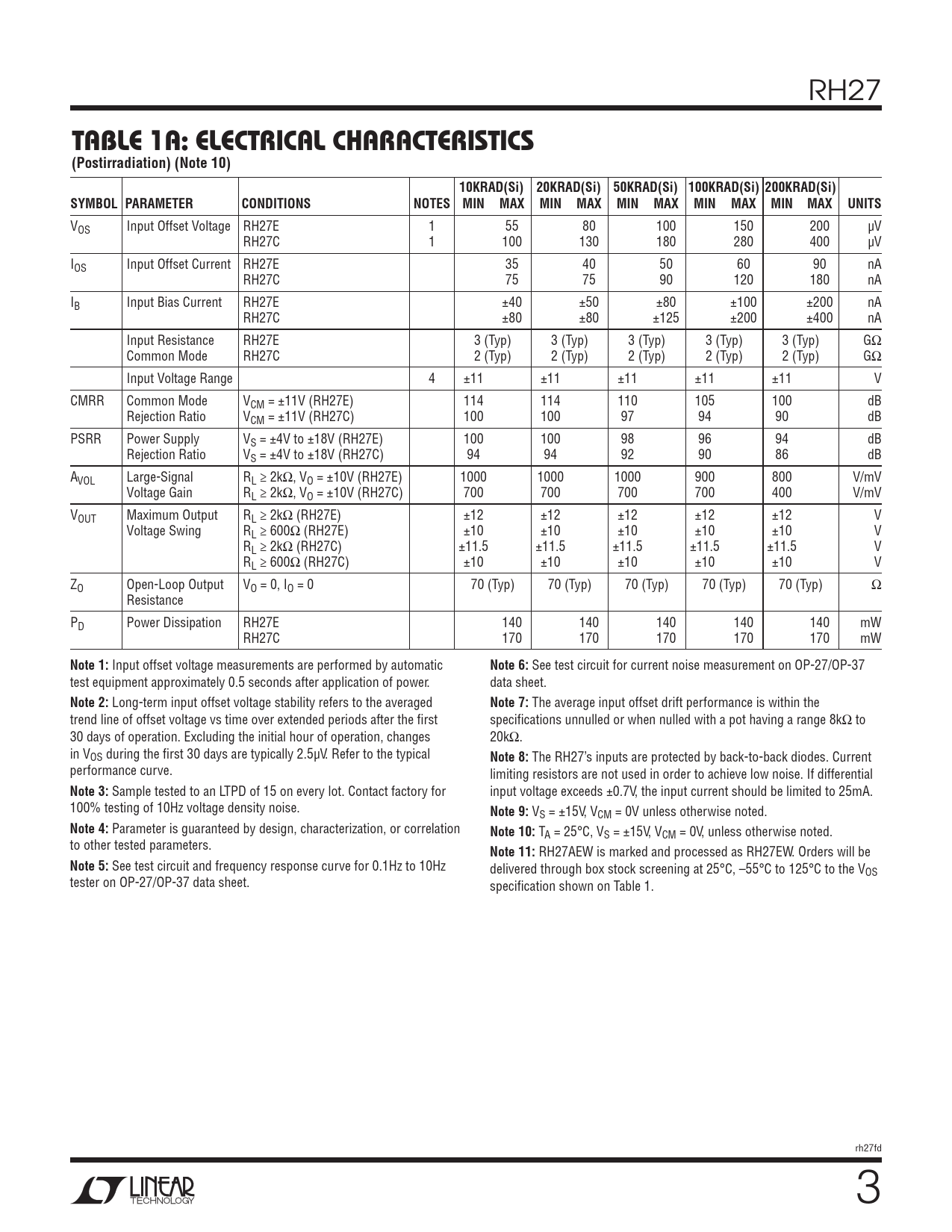

TABLE 1A: ELECTRICAL CHARACTERISTICS (Postirradiation) (Note 10)
Model Line for this Datasheet
Text Version of Document
RH27
TABLE 1A: ELECTRICAL CHARACTERISTICS (Postirradiation) (Note 10) 10KRAD(Si) 20KRAD(Si) 50KRAD(Si) 100KRAD(Si) 200KRAD(Si) SYMBOL PARAMETER CONDITIONS NOTES MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX UNITS
VOS Input Offset Voltage RH27E 1 55 80 100 150 200 μV RH27C 1 100 130 180 280 400 μV IOS Input Offset Current RH27E 35 40 50 60 90 nA RH27C 75 75 90 120 180 nA IB Input Bias Current RH27E ±40 ±50 ±80 ±100 ±200 nA RH27C ±80 ±80 ±125 ±200 ±400 nA Input Resistance RH27E 3 (Typ) 3 (Typ) 3 (Typ) 3 (Typ) 3 (Typ) GΩ Common Mode RH27C 2 (Typ) 2 (Typ) 2 (Typ) 2 (Typ) 2 (Typ) GΩ Input Voltage Range 4 ±11 ±11 ±11 ±11 ±11 V CMRR Common Mode VCM = ±11V (RH27E) 114 114 110 105 100 dB Rejection Ratio VCM = ±11V (RH27C) 100 100 97 94 90 dB PSRR Power Supply VS = ±4V to ±18V (RH27E) 100 100 98 96 94 dB Rejection Ratio VS = ±4V to ±18V (RH27C) 94 94 92 90 86 dB AVOL Large-Signal RL ≥ 2kΩ, VO = ±10V (RH27E) 1000 1000 1000 900 800 V/mV Voltage Gain RL ≥ 2kΩ, VO = ±10V (RH27C) 700 700 700 700 400 V/mV VOUT Maximum Output RL ≥ 2kΩ (RH27E) ±12 ±12 ±12 ±12 ±12 V Voltage Swing RL ≥ 600Ω (RH27E) ±10 ±10 ±10 ±10 ±10 V RL ≥ 2kΩ (RH27C) ±11.5 ±11.5 ±11.5 ±11.5 ±11.5 V RL ≥ 600Ω (RH27C) ±10 ±10 ±10 ±10 ±10 V ZO Open-Loop Output VO = 0, IO = 0 70 (Typ) 70 (Typ) 70 (Typ) 70 (Typ) 70 (Typ) Ω Resistance PD Power Dissipation RH27E 140 140 140 140 140 mW RH27C 170 170 170 170 170 mW
