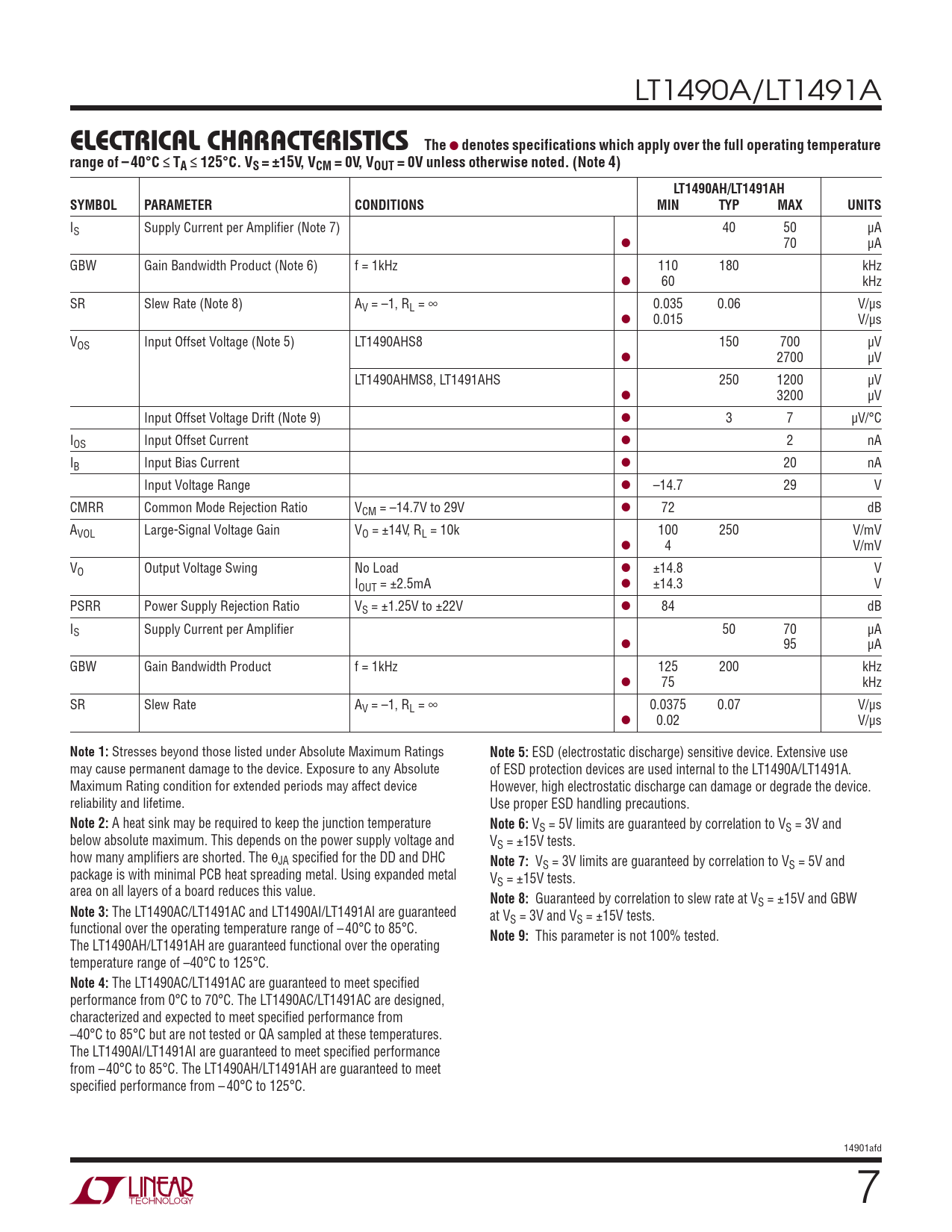

ELECTRICAL CHARACTERISTICS. The. denotes specifications which apply over the full operating temperature
Model Line for this Datasheet
Text Version of Document
LT1490A/LT1491A
ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating temperature range of – 40°C ≤ TA ≤ 125°C. VS = ±15V, VCM = 0V, VOUT = 0V unless otherwise noted. (Note 4) LT1490AH/LT1491AH SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IS Supply Current per Amplifier (Note 7) 40 50 μA l 70 μA GBW Gain Bandwidth Product (Note 6) f = 1kHz 110 180 kHz l 60 kHz SR Slew Rate (Note 8) AV = –1, RL = ∞ 0.035 0.06 V/μs l 0.015 V/μs VOS Input Offset Voltage (Note 5) LT1490AHS8 150 700 μV l 2700 μV LT1490AHMS8, LT1491AHS 250 1200 μV l 3200 μV Input Offset Voltage Drift (Note 9) l 3 7 μV/°C IOS Input Offset Current l 2 nA IB Input Bias Current l 20 nA Input Voltage Range l –14.7 29 V CMRR Common Mode Rejection Ratio VCM = –14.7V to 29V l 72 dB AVOL Large-Signal Voltage Gain VO = ±14V, RL = 10k 100 250 V/mV l 4 V/mV VO Output Voltage Swing No Load l ±14.8 V IOUT = ±2.5mA l ±14.3 V PSRR Power Supply Rejection Ratio VS = ±1.25V to ±22V l 84 dB IS Supply Current per Amplifier 50 70 μA l 95 μA GBW Gain Bandwidth Product f = 1kHz 125 200 kHz l 75 kHz SR Slew Rate AV = –1, RL = ∞ 0.0375 0.07 V/μs l 0.02 V/μs
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
ESD (electrostatic discharge) sensitive device. Extensive use may cause permanent damage to the device. Exposure to any Absolute of ESD protection devices are used internal to the LT1490A/LT1491A. Maximum Rating condition for extended periods may affect device However, high electrostatic discharge can damage or degrade the device. reliability and lifetime. Use proper ESD handling precautions.
Note 2:
A heat sink may be required to keep the junction temperature
Note 6:
VS = 5V limits are guaranteed by correlation to VS = 3V and below absolute maximum. This depends on the power supply voltage and VS = ±15V tests. how many amplifi ers are shorted. The θJA specifi ed for the DD and DHC
Note 7:
VS = 3V limits are guaranteed by correlation to VS = 5V and package is with minimal PCB heat spreading metal. Using expanded metal VS = ±15V tests. area on all layers of a board reduces this value.
Note 8:
Guaranteed by correlation to slew rate at VS = ±15V and GBW
Note 3:
The LT1490AC/LT1491AC and LT1490AI/LT1491AI are guaranteed at VS = 3V and VS = ±15V tests. functional over the operating temperature range of – 40°C to 85°C.
Note 9:
This parameter is not 100% tested. The LT1490AH/LT1491AH are guaranteed functional over the operating temperature range of –40°C to 125°C.
Note 4:
The LT1490AC/LT1491AC are guaranteed to meet specifi ed performance from 0°C to 70°C. The LT1490AC/LT1491AC are designed, characterized and expected to meet specifi ed performance from –40°C to 85°C but are not tested or QA sampled at these temperatures. The LT1490AI/LT1491AI are guaranteed to meet specifi ed performance from –40°C to 85°C. The LT1490AH/LT1491AH are guaranteed to meet specifi ed performance from – 40°C to 125°C. 14901afd 7 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION TYPICAL APPLICATIONS SIMPLIFIED SCHEMATIC PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
