| Description | 14MHz, 7V/µs, Single Supply Dual and Quad Precision Op Amps |
| Pages / Page | 20 / 5 — 5V ELECTRICAL CH. ARA TERISTICS. VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55. … |
| File Format / Size | PDF / 394 Kb |
| Document Language | English |

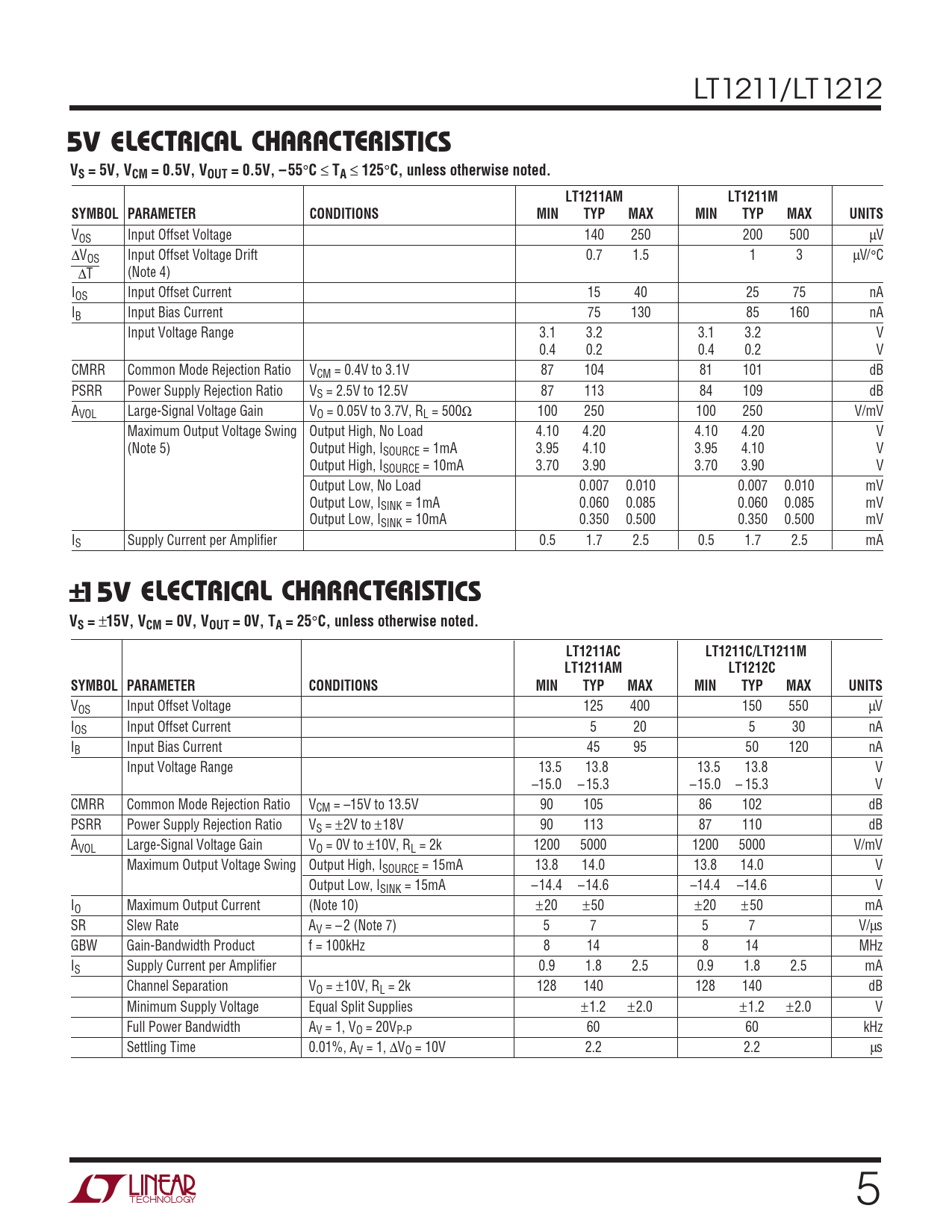

5V ELECTRICAL CH. ARA TERISTICS. VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55. 125. C, unless otherwise noted. LT1211AM. LT1211M
Model Line for this Datasheet
Text Version of Document
LT1211/LT1212
5V ELECTRICAL CH C ARA TERISTICS VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. LT1211AM LT1211M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 140 250 200 500 µV ∆VOS Input Offset Voltage Drift 0.7 1.5 1 3 µV/°C ∆T (Note 4) IOS Input Offset Current 15 40 25 75 nA IB Input Bias Current 75 130 85 160 nA Input Voltage Range 3.1 3.2 3.1 3.2 V 0.4 0.2 0.4 0.2 V CMRR Common Mode Rejection Ratio VCM = 0.4V to 3.1V 87 104 81 101 dB PSRR Power Supply Rejection Ratio VS = 2.5V to 12.5V 87 113 84 109 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 3.7V, RL = 500Ω 100 250 100 250 V/mV Maximum Output Voltage Swing Output High, No Load 4.10 4.20 4.10 4.20 V (Note 5) Output High, ISOURCE = 1mA 3.95 4.10 3.95 4.10 V Output High, ISOURCE = 10mA 3.70 3.90 3.70 3.90 V Output Low, No Load 0.007 0.010 0.007 0.010 mV Output Low, ISINK = 1mA 0.060 0.085 0.060 0.085 mV Output Low, ISINK = 10mA 0.350 0.500 0.350 0.500 mV IS Supply Current per Amplifier 0.5 1.7 2.5 0.5 1.7 2.5 mA
