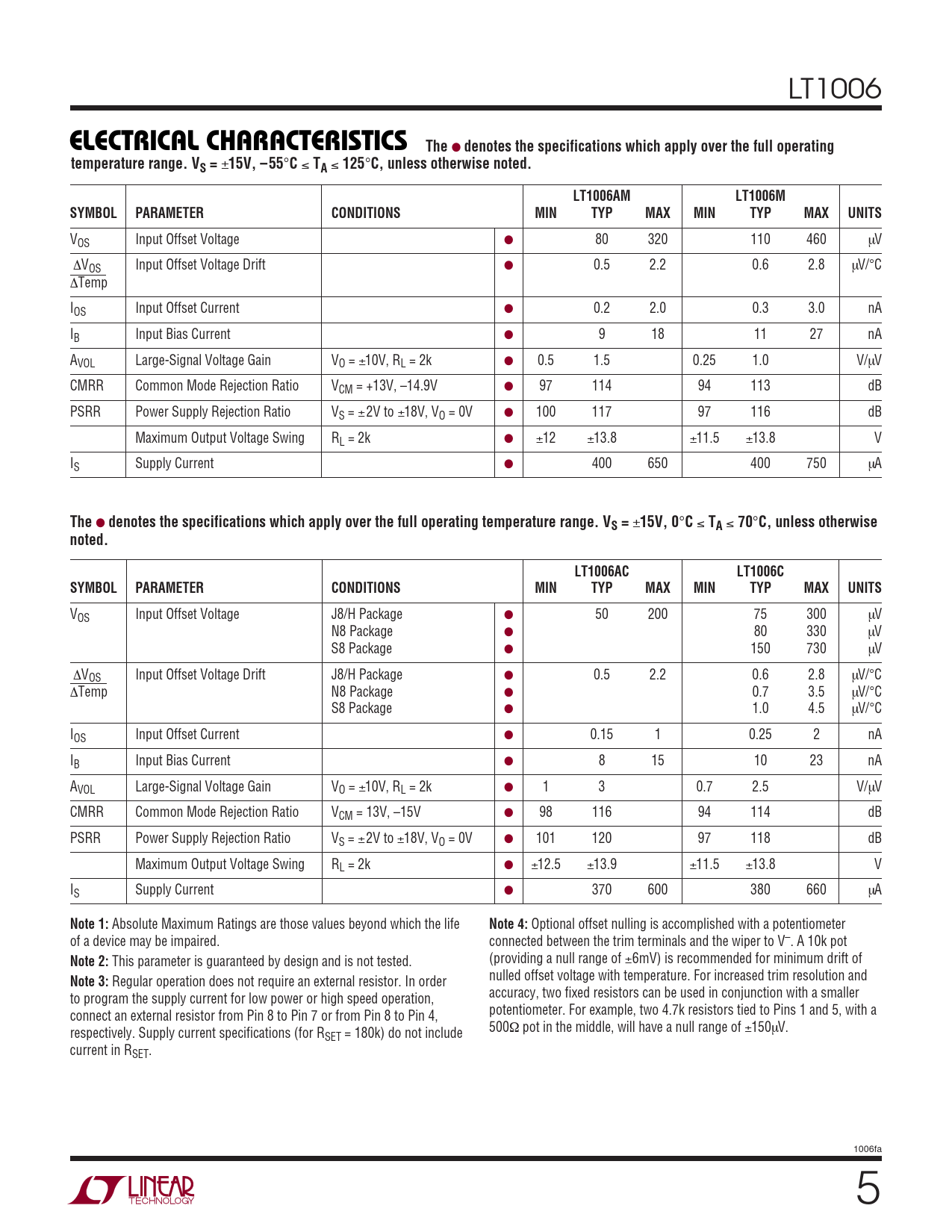

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating. temperature range. VS =
Model Line for this Datasheet
Text Version of Document
LT1006
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range. VS =
±
15V, –55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. LT1006AM LT1006M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage ● 80 320 110 460 µV ∆VOS Input Offset Voltage Drift ● 0.5 2.2 0.6 2.8 µV/°C ∆Temp IOS Input Offset Current ● 0.2 2.0 0.3 3.0 nA IB Input Bias Current ● 9 18 11 27 nA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 2k ● 0.5 1.5 0.25 1.0 V/µV CMRR Common Mode Rejection Ratio VCM = +13V, –14.9V ● 97 114 94 113 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±18V, VO = 0V ● 100 117 97 116 dB Maximum Output Voltage Swing RL = 2k ● ±12 ±13.8 ±11.5 ±13.8 V IS Supply Current ● 400 650 400 750 µA
The
●
denotes the specifications which apply over the full operating temperature range. VS =
±
15V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. LT1006AC LT1006C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage J8/H Package ● 50 200 75 300 µV N8 Package ● 80 330 µV S8 Package ● 150 730 µV ∆VOS Input Offset Voltage Drift J8/H Package ● 0.5 2.2 0.6 2.8 µV/°C ∆Temp N8 Package ● 0.7 3.5 µV/°C S8 Package ● 1.0 4.5 µV/°C IOS Input Offset Current ● 0.15 1 0.25 2 nA IB Input Bias Current ● 8 15 10 23 nA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 2k ● 1 3 0.7 2.5 V/µV CMRR Common Mode Rejection Ratio VCM = 13V, –15V ● 98 116 94 114 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±18V, VO = 0V ● 101 120 97 118 dB Maximum Output Voltage Swing RL = 2k ● ±12.5 ±13.9 ±11.5 ±13.8 V IS Supply Current ● 370 600 380 660 µA
