DescriptionDual Synchronous, 3A/1A or 2A/2A Configurable Step-Down DC/DC Regulator
Pages / Page30 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply …
File Format / SizePDF / 624 Kb
Document LanguageEnglish

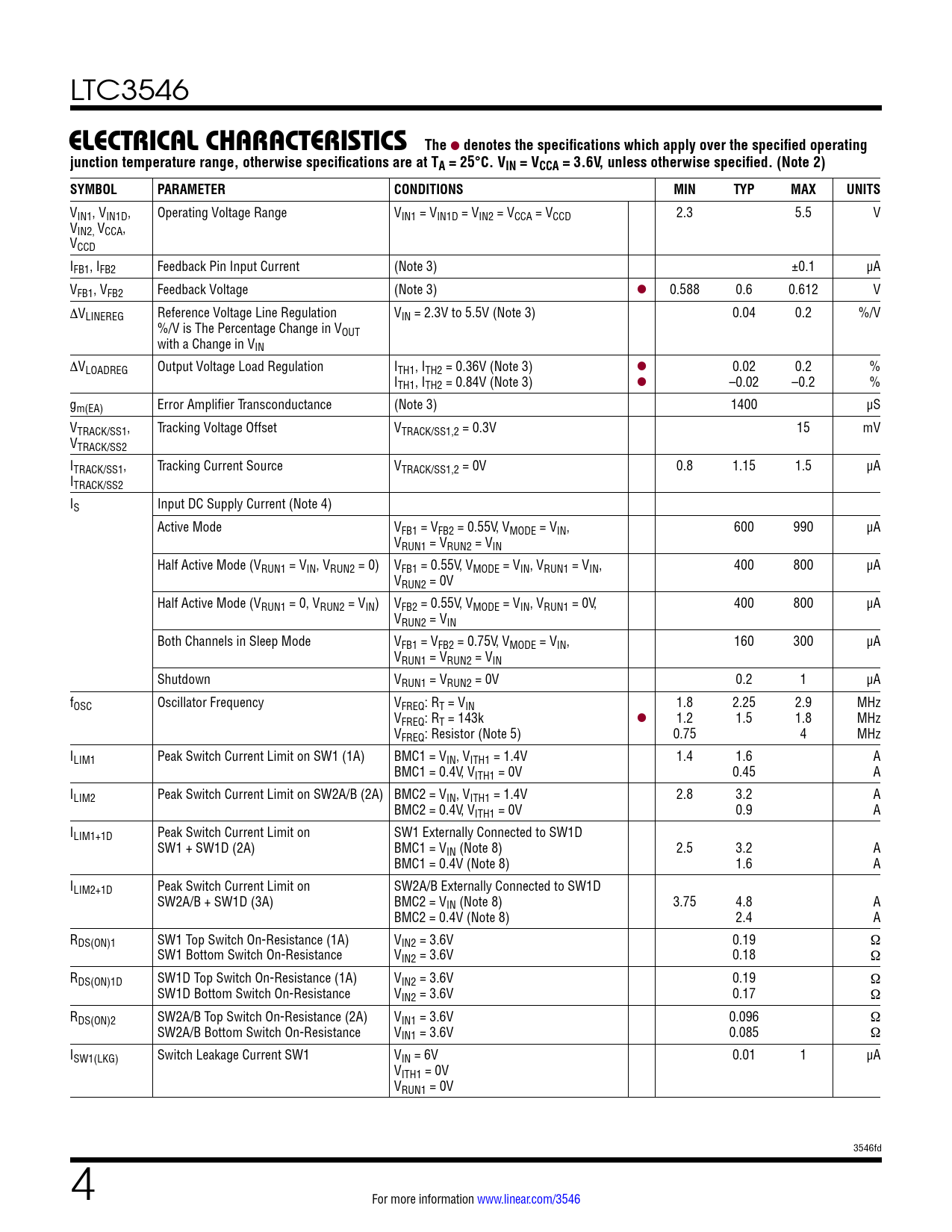

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified operating

ELECTRICAL CHARACTERISTICS The denotes the specifications which apply over the specified operating

Model Line for this Datasheet

Text Version of Document

LTC3546
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. VIN = VCCA = 3.6V, unless otherwise specified. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN1, VIN1D, Operating Voltage Range VIN1 = VIN1D = VIN2 = VCCA = VCCD 2.3 5.5 V VIN2, VCCA, VCCD IFB1, IFB2 Feedback Pin Input Current (Note 3) ±0.1 µA VFB1, VFB2 Feedback Voltage (Note 3) l 0.588 0.6 0.612 V ΔVLINEREG Reference Voltage Line Regulation VIN = 2.3V to 5.5V (Note 3) 0.04 0.2 %/V %/V is The Percentage Change in VOUT with a Change in VIN ΔVLOADREG Output Voltage Load Regulation ITH1, ITH2 = 0.36V (Note 3) l 0.02 0.2 % ITH1, ITH2 = 0.84V (Note 3) l –0.02 –0.2 % gm(EA) Error Amplifier Transconductance (Note 3) 1400 µS VTRACK/SS1, Tracking Voltage Offset VTRACK/SS1,2 = 0.3V 15 mV VTRACK/SS2 ITRACK/SS1, Tracking Current Source VTRACK/SS1,2 = 0V 0.8 1.15 1.5 µA ITRACK/SS2 IS Input DC Supply Current (Note 4) Active Mode VFB1 = VFB2 = 0.55V, VMODE = VIN, 600 990 µA VRUN1 = VRUN2 = VIN Half Active Mode (VRUN1 = VIN, VRUN2 = 0) VFB1 = 0.55V, VMODE = VIN, VRUN1 = VIN, 400 800 µA VRUN2 = 0V Half Active Mode (VRUN1 = 0, VRUN2 = VIN) VFB2 = 0.55V, VMODE = VIN, VRUN1 = 0V, 400 800 µA VRUN2 = VIN Both Channels in Sleep Mode VFB1 = VFB2 = 0.75V, VMODE = VIN, 160 300 µA VRUN1 = VRUN2 = VIN Shutdown VRUN1 = VRUN2 = 0V 0.2 1 µA fOSC Oscillator Frequency VFREQ: RT = VIN 1.8 2.25 2.9 MHz VFREQ: RT = 143k l 1.2 1.5 1.8 MHz VFREQ: Resistor (Note 5) 0.75 4 MHz ILIM1 Peak Switch Current Limit on SW1 (1A) BMC1 = VIN, VITH1 = 1.4V 1.4 1.6 A BMC1 = 0.4V, VITH1 = 0V 0.45 A ILIM2 Peak Switch Current Limit on SW2A/B (2A) BMC2 = VIN, VITH1 = 1.4V 2.8 3.2 A BMC2 = 0.4V, VITH1 = 0V 0.9 A ILIM1+1D Peak Switch Current Limit on SW1 Externally Connected to SW1D SW1 + SW1D (2A) BMC1 = VIN (Note 8) 2.5 3.2 A BMC1 = 0.4V (Note 8) 1.6 A ILIM2+1D Peak Switch Current Limit on SW2A/B Externally Connected to SW1D SW2A/B + SW1D (3A) BMC2 = VIN (Note 8) 3.75 4.8 A BMC2 = 0.4V (Note 8) 2.4 A RDS(ON)1 SW1 Top Switch On-Resistance (1A) VIN2 = 3.6V 0.19 Ω SW1 Bottom Switch On-Resistance VIN2 = 3.6V 0.18 Ω RDS(ON)1D SW1D Top Switch On-Resistance (1A) VIN2 = 3.6V 0.19 Ω SW1D Bottom Switch On-Resistance VIN2 = 3.6V 0.17 Ω RDS(ON)2 SW2A/B Top Switch On-Resistance (2A) VIN1 = 3.6V 0.096 Ω SW2A/B Bottom Switch On-Resistance VIN1 = 3.6V 0.085 Ω ISW1(LKG) Switch Leakage Current SW1 VIN = 6V 0.01 1 µA VITH1 = 0V VRUN1 = 0V 3546fd 4 For more information www.linear.com/3546
