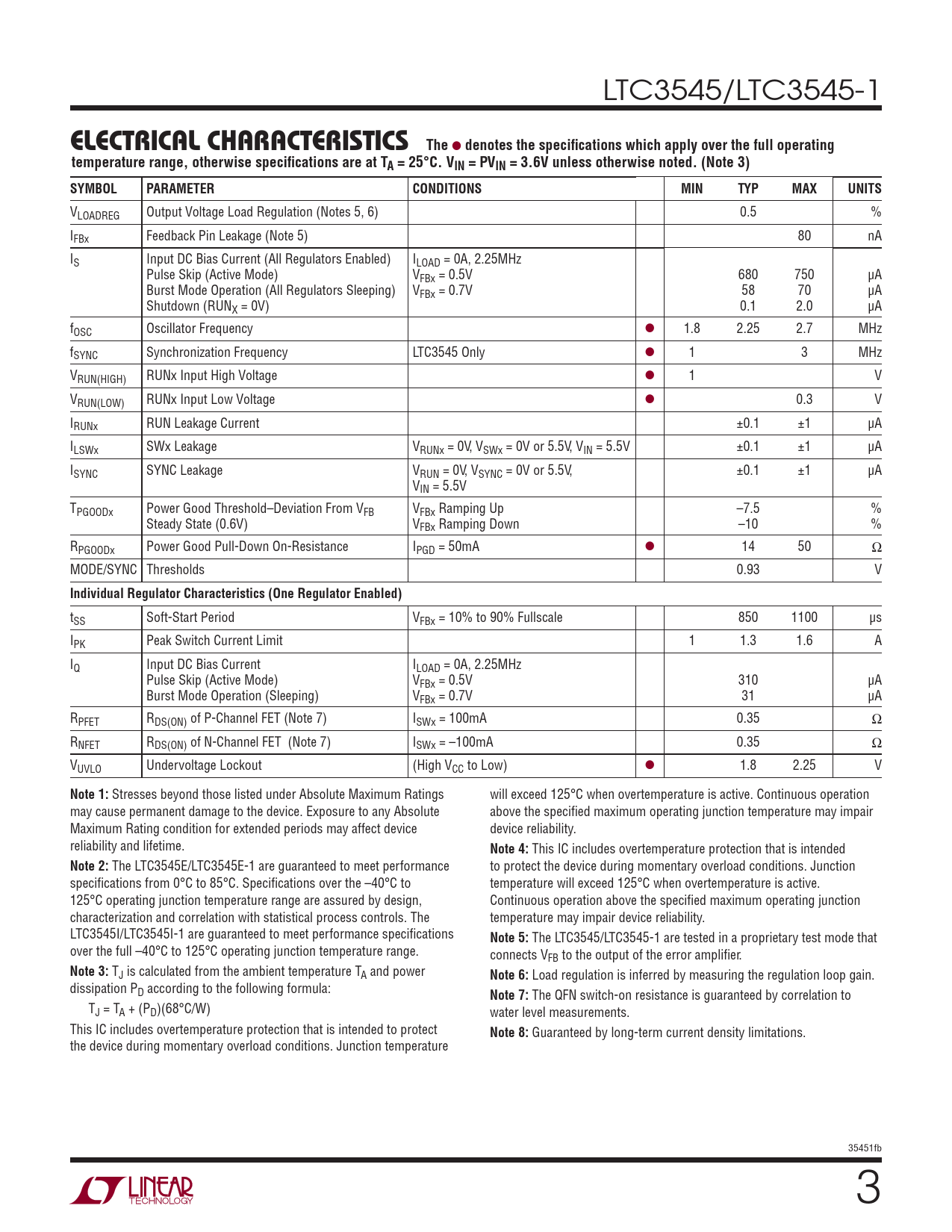

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC3545/LTC3545-1
ELECTRICAL CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = PVIN = 3.6V unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VLOADREG Output Voltage Load Regulation (Notes 5, 6) 0.5 % IFBx Feedback Pin Leakage (Note 5) 80 nA IS Input DC Bias Current (All Regulators Enabled) ILOAD = 0A, 2.25MHz Pulse Skip (Active Mode) VFBx = 0.5V 680 750 μA Burst Mode Operation (All Regulators Sleeping) VFBx = 0.7V 58 70 μA Shutdown (RUNX = 0V) 0.1 2.0 μA fOSC Oscillator Frequency ● 1.8 2.25 2.7 MHz fSYNC Synchronization Frequency LTC3545 Only ● 1 3 MHz VRUN(HIGH) RUNx Input High Voltage ● 1 V VRUN(LOW) RUNx Input Low Voltage ● 0.3 V IRUNx RUN Leakage Current ±0.1 ±1 μA ILSWx SWx Leakage VRUNx = 0V, VSWx = 0V or 5.5V, VIN = 5.5V ±0.1 ±1 μA ISYNC SYNC Leakage VRUN = 0V, VSYNC = 0V or 5.5V, ±0.1 ±1 μA VIN = 5.5V TPGOODx Power Good Threshold–Deviation From VFB VFBx Ramping Up –7.5 % Steady State (0.6V) VFBx Ramping Down –10 % RPGOODx Power Good Pull-Down On-Resistance IPGD = 50mA ● 14 50 Ω MODE/SYNC Thresholds 0.93 V
Individual Regulator Characteristics (One Regulator Enabled)
tSS Soft-Start Period VFBx = 10% to 90% Fullscale 850 1100 μs IPK Peak Switch Current Limit 1 1.3 1.6 A IQ Input DC Bias Current ILOAD = 0A, 2.25MHz Pulse Skip (Active Mode) VFBx = 0.5V 310 μA Burst Mode Operation (Sleeping) VFBx = 0.7V 31 μA RPFET RDS(ON) of P-Channel FET (Note 7) ISWx = 100mA 0.35 Ω RNFET RDS(ON) of N-Channel FET (Note 7) ISWx = –100mA 0.35 Ω VUVLO Undervoltage Lockout (High VCC to Low) ● 1.8 2.25 V
