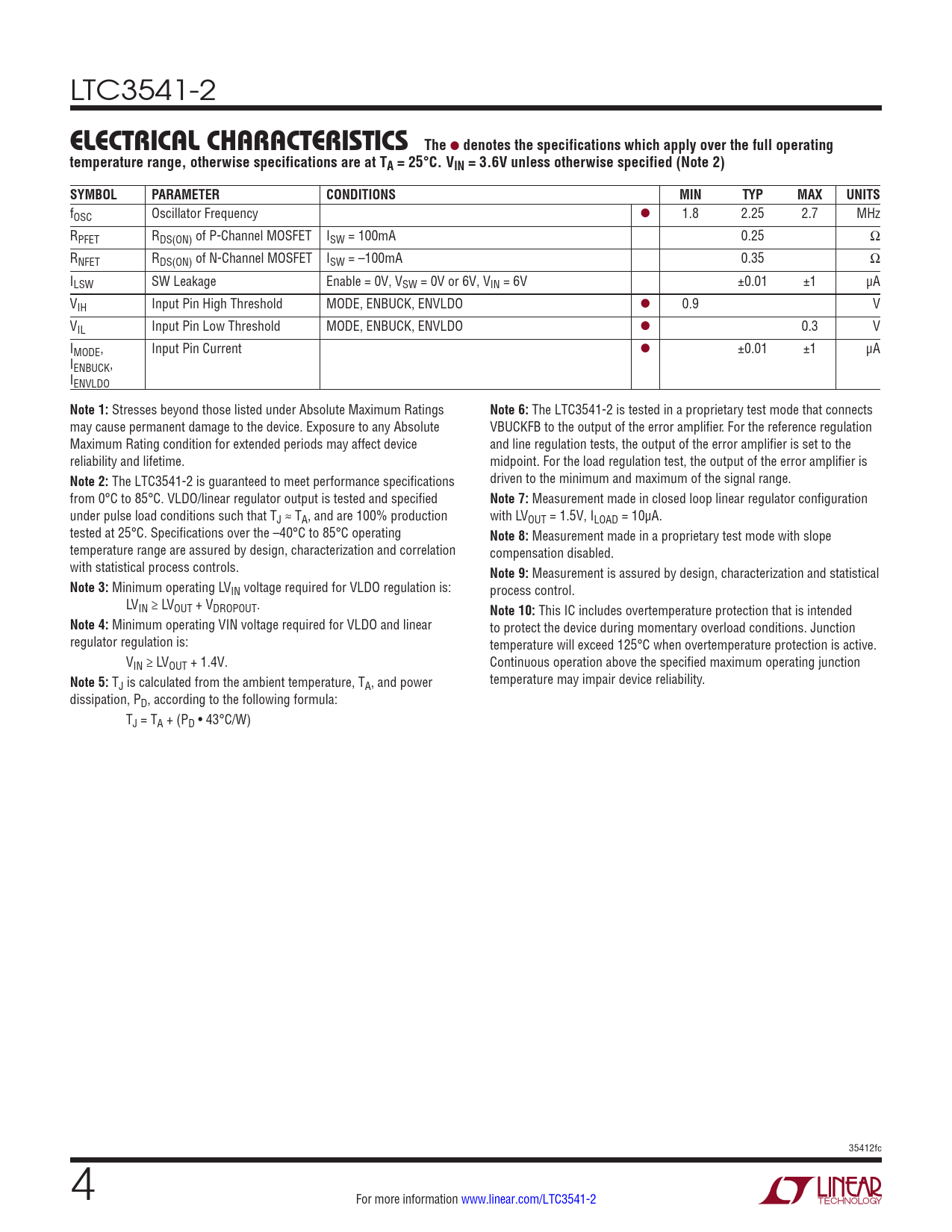

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC3541-2
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 3.6V unless otherwise specified (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fOSC Oscillator Frequency l 1.8 2.25 2.7 MHz RPFET RDS(ON) of P-Channel MOSFET ISW = 100mA 0.25 Ω RNFET RDS(ON) of N-Channel MOSFET ISW = –100mA 0.35 Ω ILSW SW Leakage Enable = 0V, VSW = 0V or 6V, VIN = 6V ±0.01 ±1 μA VIH Input Pin High Threshold MODE, ENBUCK, ENVLDO l 0.9 V VIL Input Pin Low Threshold MODE, ENBUCK, ENVLDO l 0.3 V IMODE, Input Pin Current l ±0.01 ±1 μA IENBUCK, IENVLDO
