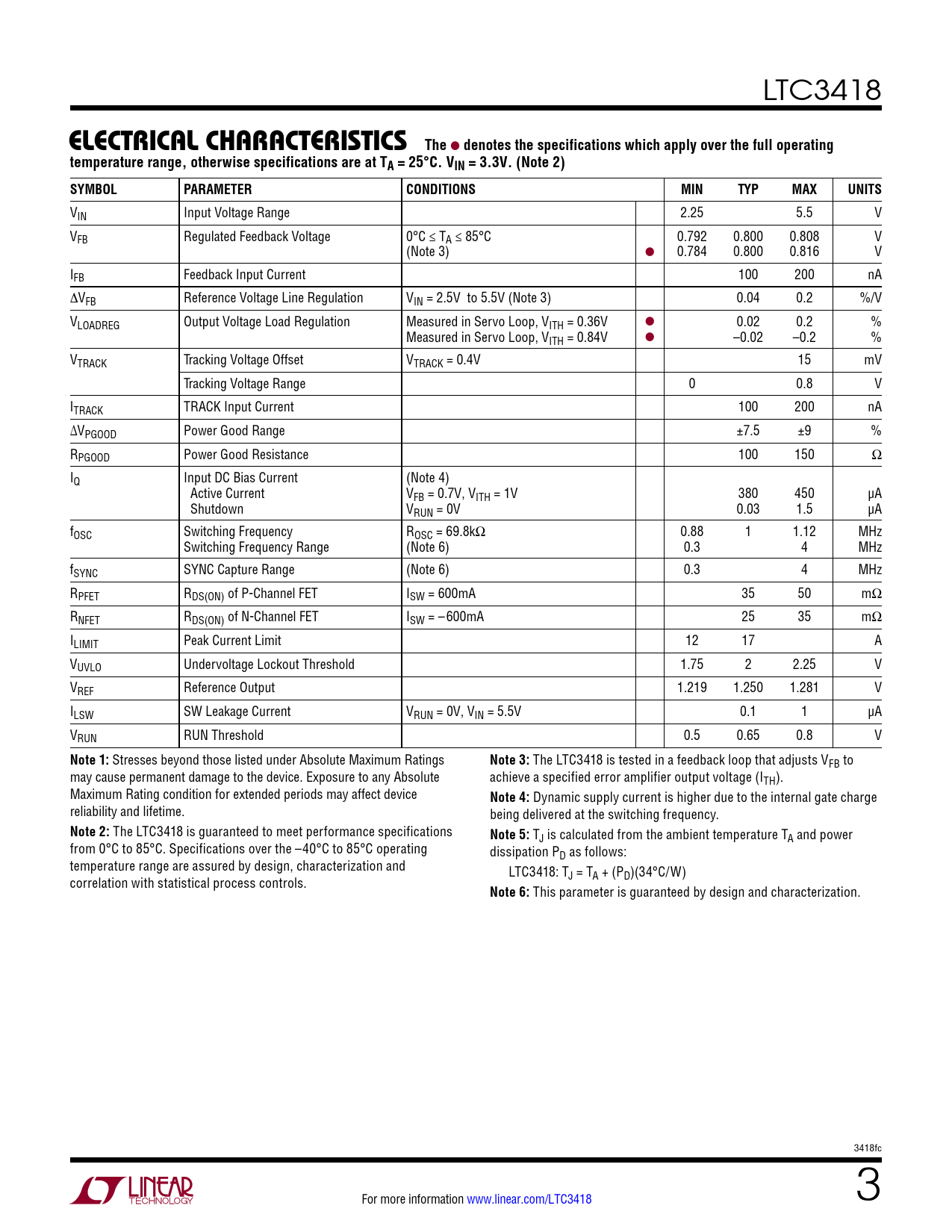

LTC3418
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 3.3V. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Input Voltage Range 2.25 5.5 V VFB Regulated Feedback Voltage 0°C ≤ TA ≤ 85°C 0.792 0.800 0.808 V (Note 3) l 0.784 0.800 0.816 V IFB Feedback Input Current 100 200 nA ∆VFB Reference Voltage Line Regulation VIN = 2.5V to 5.5V (Note 3) 0.04 0.2 %/V VLOADREG Output Voltage Load Regulation Measured in Servo Loop, VITH = 0.36V l 0.02 0.2 % Measured in Servo Loop, VITH = 0.84V l –0.02 –0.2 % VTRACK Tracking Voltage Offset VTRACK = 0.4V 15 mV Tracking Voltage Range 0 0.8 V ITRACK TRACK Input Current 100 200 nA ∆VPGOOD Power Good Range ±7.5 ±9 % RPGOOD Power Good Resistance 100 150 Ω IQ Input DC Bias Current (Note 4) Active Current VFB = 0.7V, VITH = 1V 380 450 µA Shutdown VRUN = 0V 0.03 1.5 µA fOSC Switching Frequency ROSC = 69.8kΩ 0.88 1 1.12 MHz Switching Frequency Range (Note 6) 0.3 4 MHz fSYNC SYNC Capture Range (Note 6) 0.3 4 MHz RPFET RDS(ON) of P-Channel FET ISW = 600mA 35 50 mΩ RNFET RDS(ON) of N-Channel FET ISW = –600mA 25 35 mΩ ILIMIT Peak Current Limit 12 17 A VUVLO Undervoltage Lockout Threshold 1.75 2 2.25 V VREF Reference Output 1.219 1.250 1.281 V ILSW SW Leakage Current VRUN = 0V, VIN = 5.5V 0.1 1 µA VRUN RUN Threshold 0.5 0.65 0.8 V
