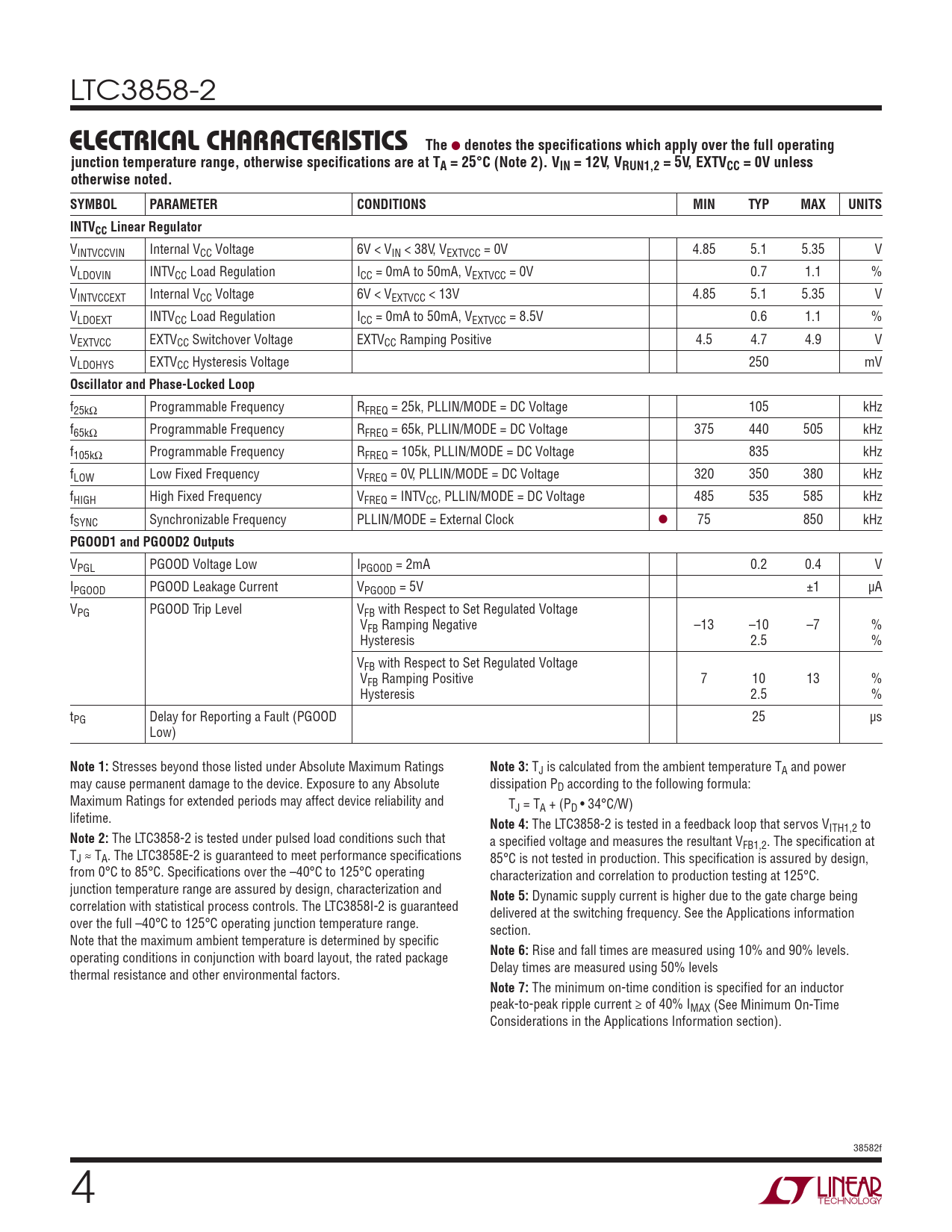

LTC3858-2
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating junction temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = 12V, VRUN1,2 = 5V, EXTVCC = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS INTVCC Linear Regulator
VINTVCCVIN Internal VCC Voltage 6V < VIN < 38V, VEXTVCC = 0V 4.85 5.1 5.35 V VLDOVIN INTVCC Load Regulation ICC = 0mA to 50mA, VEXTVCC = 0V 0.7 1.1 % VINTVCCEXT Internal VCC Voltage 6V < VEXTVCC < 13V 4.85 5.1 5.35 V VLDOEXT INTVCC Load Regulation ICC = 0mA to 50mA, VEXTVCC = 8.5V 0.6 1.1 % VEXTVCC EXTVCC Switchover Voltage EXTVCC Ramping Positive 4.5 4.7 4.9 V VLDOHYS EXTVCC Hysteresis Voltage 250 mV
Oscillator and Phase-Locked Loop
f25kΩ Programmable Frequency RFREQ = 25k, PLLIN/MODE = DC Voltage 105 kHz f65kΩ Programmable Frequency RFREQ = 65k, PLLIN/MODE = DC Voltage 375 440 505 kHz f105kΩ Programmable Frequency RFREQ = 105k, PLLIN/MODE = DC Voltage 835 kHz fLOW Low Fixed Frequency VFREQ = 0V, PLLIN/MODE = DC Voltage 320 350 380 kHz fHIGH High Fixed Frequency VFREQ = INTVCC, PLLIN/MODE = DC Voltage 485 535 585 kHz fSYNC Synchronizable Frequency PLLIN/MODE = External Clock l 75 850 kHz
PGOOD1 and PGOOD2 Outputs
VPGL PGOOD Voltage Low IPGOOD = 2mA 0.2 0.4 V IPGOOD PGOOD Leakage Current VPGOOD = 5V ±1 μA VPG PGOOD Trip Level VFB with Respect to Set Regulated Voltage VFB Ramping Negative –13 –10 –7 % Hysteresis 2.5 % VFB with Respect to Set Regulated Voltage VFB Ramping Positive 7 10 13 % Hysteresis 2.5 % tPG Delay for Reporting a Fault (PGOOD 25 μs Low)
