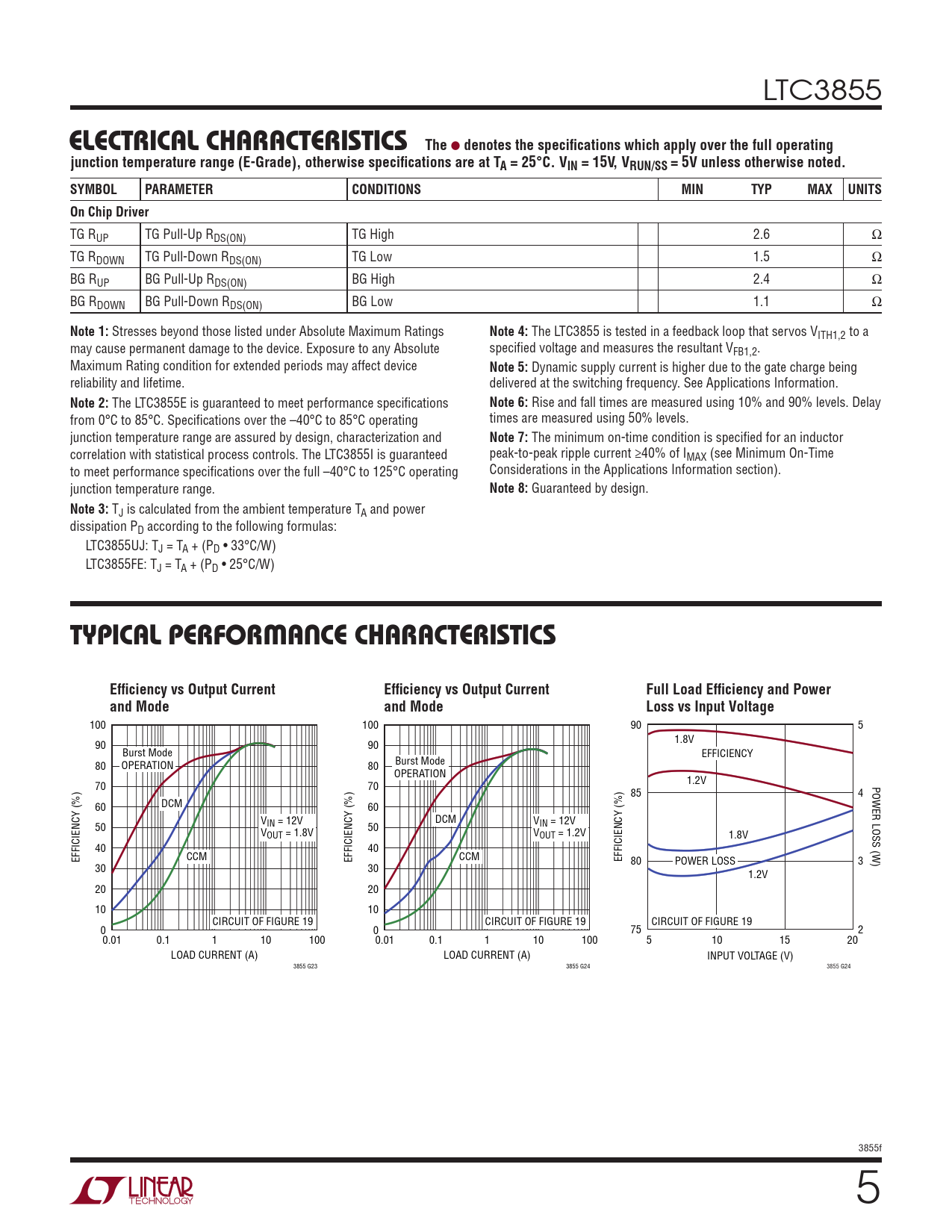

LTC3855 e
lecTrical characTerisTics
The
l
denotes the specifications which apply over the full operating junction temperature range (E-Grade), otherwise specifications are at TA = 25°C. VIN = 15V, VRUN/SS = 5V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS On Chip Driver
TG RUP TG Pull-Up RDS(ON) TG High 2.6 Ω TG RDOWN TG Pull-Down RDS(ON) TG Low 1.5 Ω BG RUP BG Pull-Up RDS(ON) BG High 2.4 Ω BG RDOWN BG Pull-Down RDS(ON) BG Low 1.1 Ω
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 4:
The LTC3855 is tested in a feedback loop that servos VITH1,2 to a may cause permanent damage to the device. Exposure to any Absolute specified voltage and measures the resultant VFB1,2. Maximum Rating condition for extended periods may affect device
Note 5:
Dynamic supply current is higher due to the gate charge being reliability and lifetime. delivered at the switching frequency. See Applications Information.
Note 2:
The LTC3855E is guaranteed to meet performance specifications
Note 6:
Rise and fall times are measured using 10% and 90% levels. Delay from 0°C to 85°C. Specifications over the –40°C to 85°C operating times are measured using 50% levels. junction temperature range are assured by design, characterization and
Note 7:
The minimum on-time condition is specified for an inductor correlation with statistical process controls. The LTC3855I is guaranteed peak-to-peak ripple current ≥40% of IMAX (see Minimum On-Time to meet performance specifications over the full –40°C to 125°C operating Considerations in the Applications Information section). junction temperature range.
Note 8:
Guaranteed by design.
Note 3:
TJ is calculated from the ambient temperature TA and power dissipation PD according to the following formulas: LTC3855UJ: TJ = TA + (PD • 33°C/W) LTC3855FE: TJ = TA + (PD • 25°C/W) Typical perForMance characTerisTics
