Datasheet LTC2325-14 (Analog Devices) - 16
| Manufacturer | Analog Devices |
| Description | Quad, 14-Bit + Sign, 5Msps/Ch Simultaneous Sampling ADC |
| Pages / Page | 30 / 16 — TiMing DiagraM. SDR Mode, LVDS. DDR Mode, LVDS |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |
TiMing DiagraM. SDR Mode, LVDS. DDR Mode, LVDS
Model Line for this Datasheet
Text Version of Document
LTC2325-14

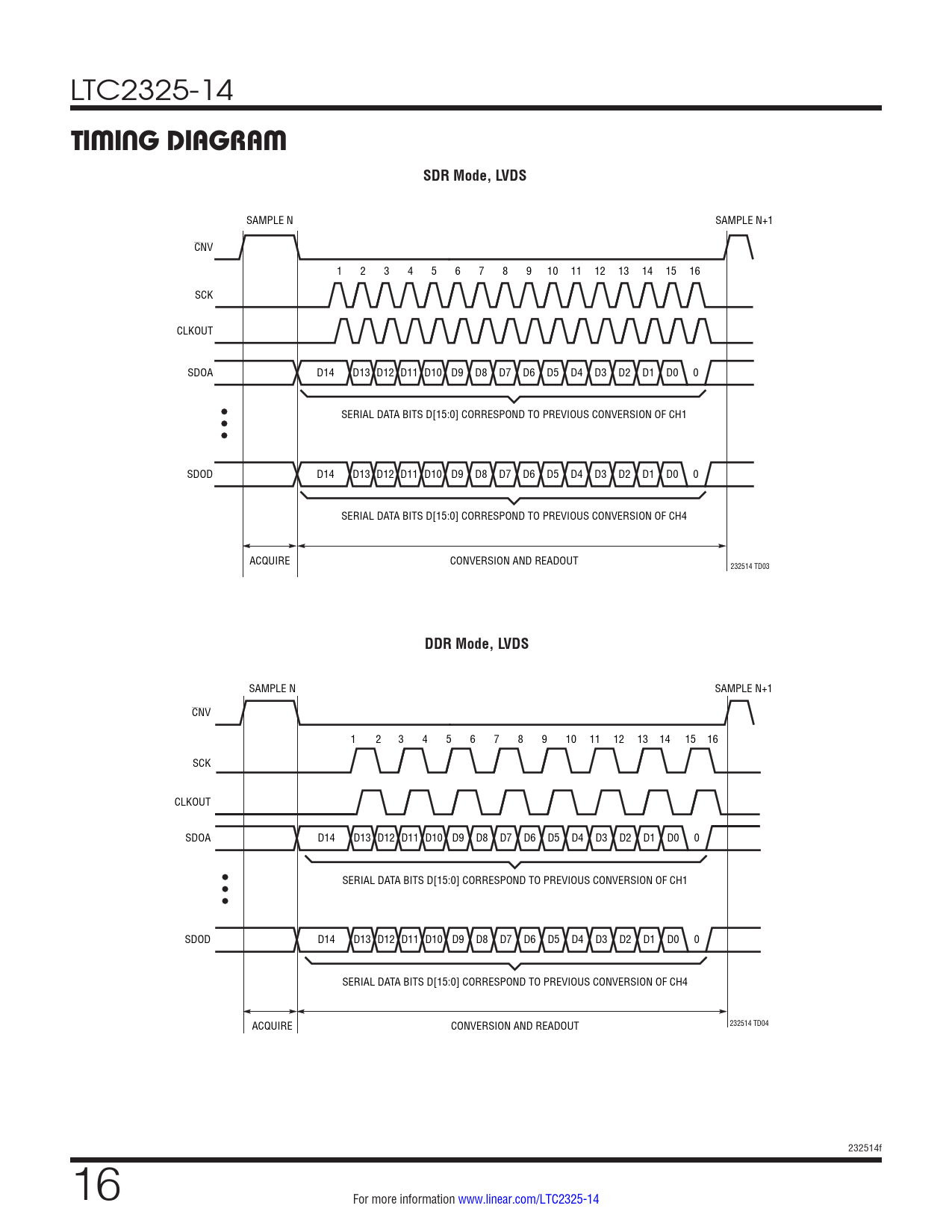

TiMing DiagraM SDR Mode, LVDS
SAMPLE N SAMPLE N+1 CNV 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 SCK CLKOUT SDOA D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 0 SERIAL DATA BITS D[15:0] CORRESPOND TO PREVIOUS CONVERSION OF CH1 SDOD D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 0 SERIAL DATA BITS D[15:0] CORRESPOND TO PREVIOUS CONVERSION OF CH4 ACQUIRE CONVERSION AND READOUT 232514 TD03
