NXP Semiconductors. BC847/BC547 series. 45 V, 100 mA NPN general-purpose transistors. 1.2 Features. 1.3 Applications
Model Line for this Datasheet
Text Version of Document

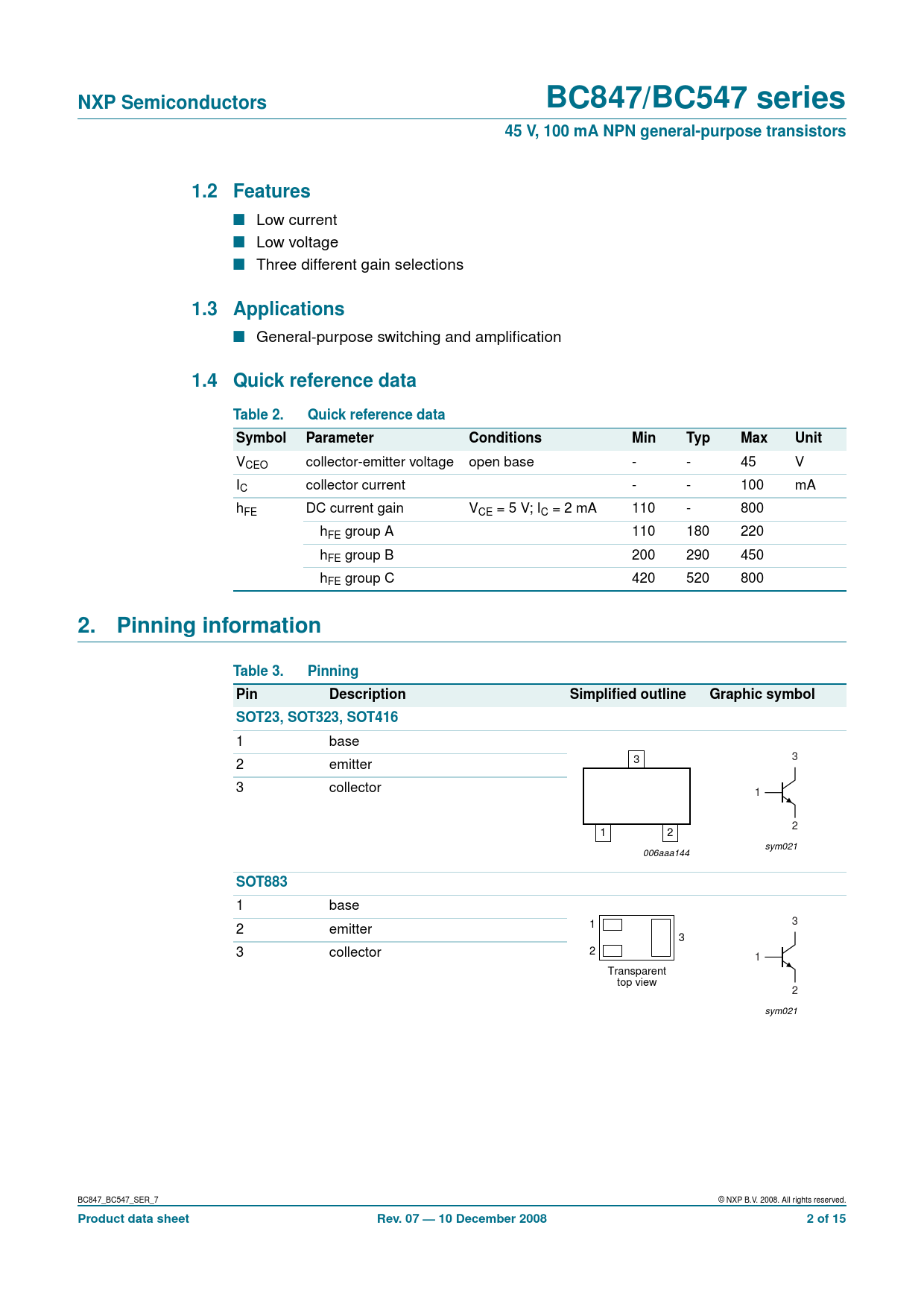

NXP Semiconductors BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors 1.2 Features
n Low current n Low voltage n Three different gain selections
1.3 Applications
n General-purpose switching and amplification
1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - 45 V IC collector current - - 100 mA hFE DC current gain VCE = 5 V; IC = 2 mA 110 - 800 hFE group A 110 180 220 hFE group B 200 290 450 hFE group C 420 520 800
2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol SOT23, SOT323, SOT416
1 base 3 2 emitter 3 3 collector 1 2 1 2 sym021 006aaa144
SOT883
1 base 3 2 emitter 1 3 3 collector 2 1 Transparent top view 2 sym021 BC847_BC547_SER_7 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 07 — 10 December 2008 2 of 15
