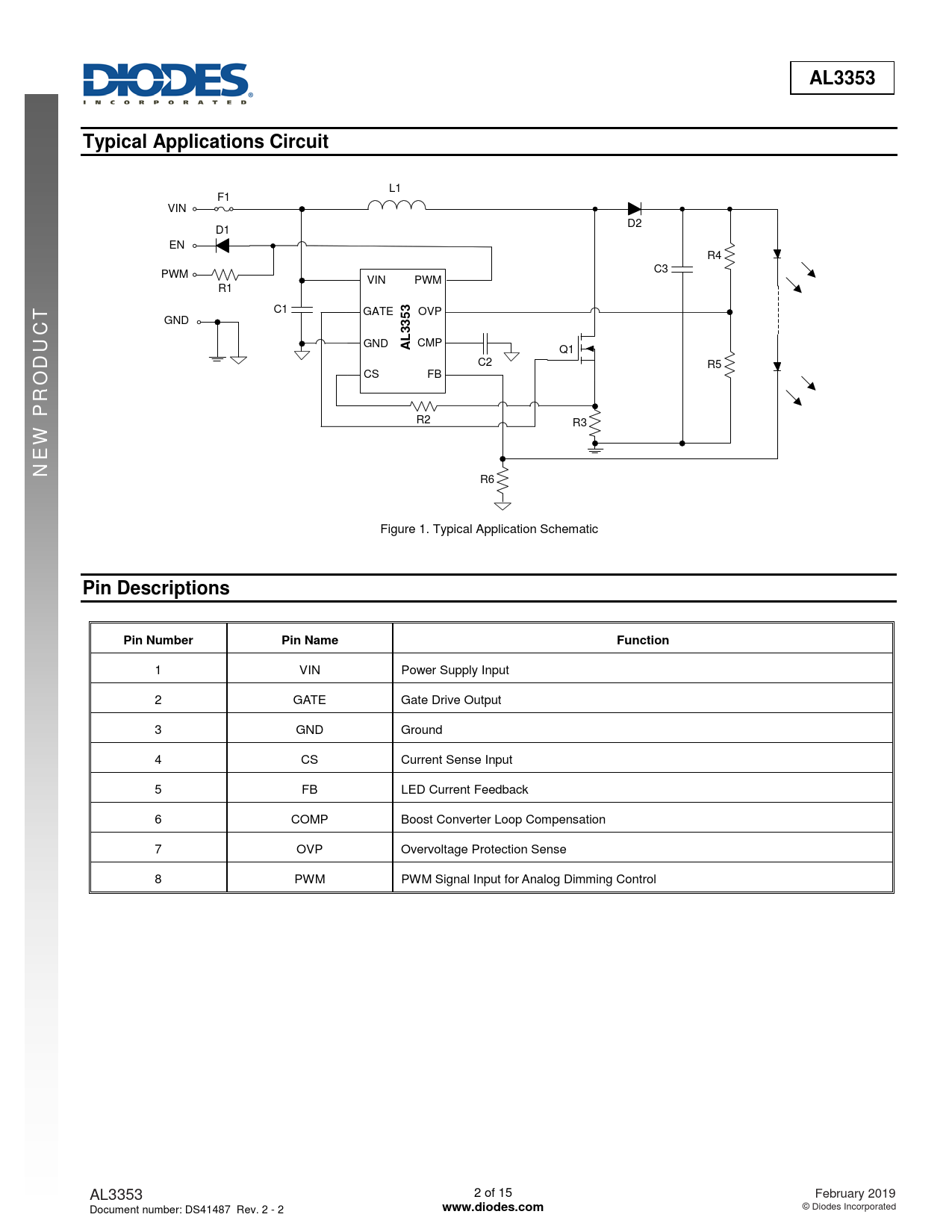

AL3353Typical Applications Circuit L1 F1 VIN D2 D1 EN R4 C3 PWM VIN PWM
R1 T C1 GATE OVP GND 3353UC GND CMP AL Q1 C2 R5 OD CS FB R P R2 R3 W NE R6 Figure 1. Typical Application Schematic Pin DescriptionsPin NumberPin NameFunction 1 VIN Power Supply Input 2 GATE Gate Drive Output 3 GND Ground 4 CS Current Sense Input 5 FB LED Current Feedback 6 COMP Boost Converter Loop Compensation 7 OVP Overvoltage Protection Sense 8 PWM PWM Signal Input for Analog Dimming Control
