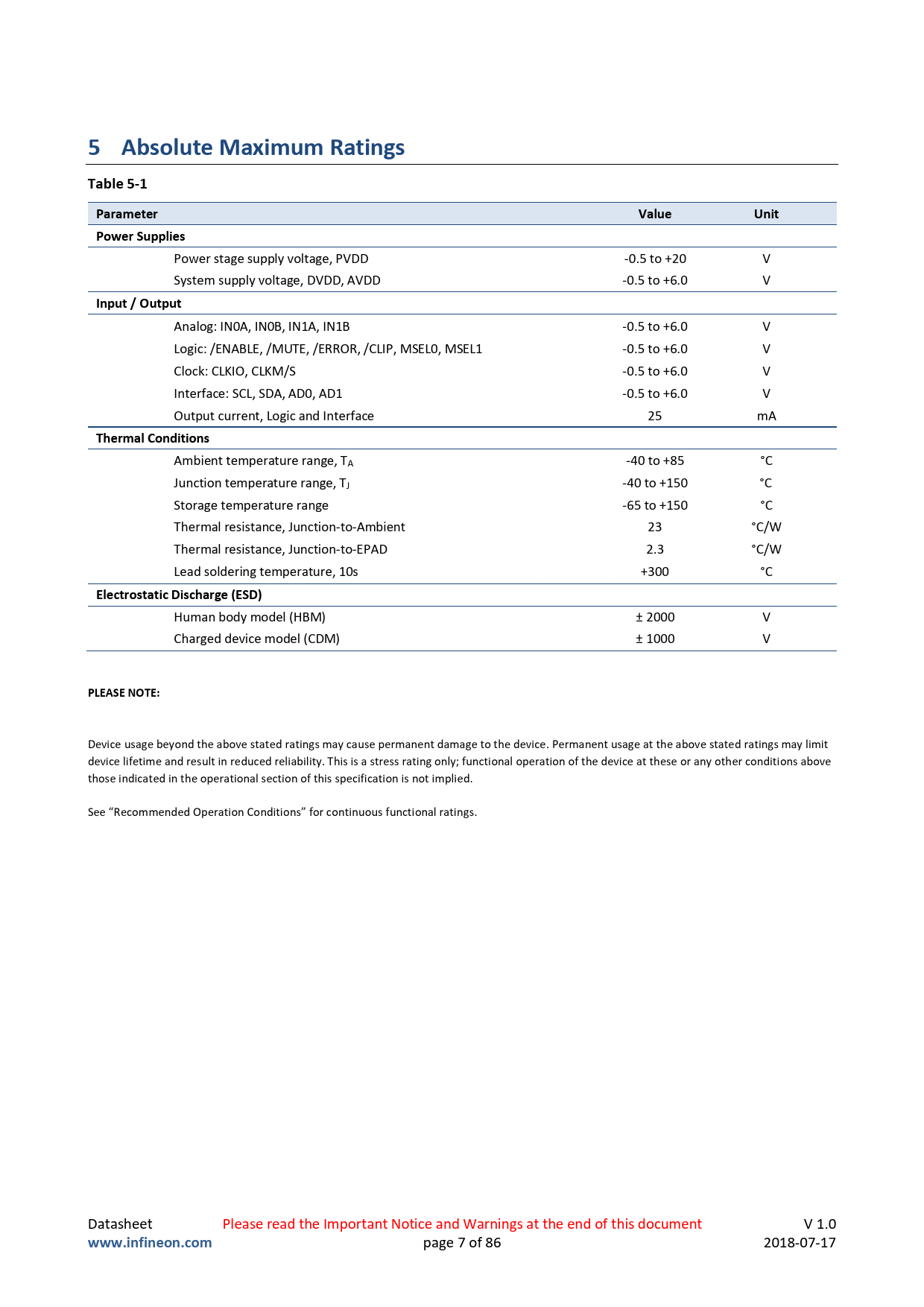

5 Absolute Maximum RatingsTable 5-1ParameterValueUnitPower Supplies Power stage supply voltage, PVDD -0.5 to +20 V System supply voltage, DVDD, AVDD -0.5 to +6.0 V Input / Output Analog: IN0A, IN0B, IN1A, IN1B -0.5 to +6.0 V Logic: /ENABLE, /MUTE, /ERROR, /CLIP, MSEL0, MSEL1 -0.5 to +6.0 V Clock: CLKIO, CLKM/S -0.5 to +6.0 V Interface: SCL, SDA, AD0, AD1 -0.5 to +6.0 V Output current, Logic and Interface 25 mA Thermal Conditions Ambient temperature range, TA -40 to +85 °C Junction temperature range, TJ -40 to +150 °C Storage temperature range -65 to +150 °C Thermal resistance, Junction-to-Ambient 23 °C/W Thermal resistance, Junction-to-EPAD 2.3 °C/W Lead soldering temperature, 10s +300 °C Electrostatic Discharge (ESD) Human body model (HBM) ± 2000 V Charged device model (CDM) ± 1000 V PLEASE NOTE: Device usage beyond the above stated ratings may cause permanent damage to the device. Permanent usage at the above stated ratings may limit device lifetime and result in reduced reliability. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. See “Recommended Operation Conditions” for continuous functional ratings. Datasheet Please read the Important Notice and Warnings at the end of this document V 1.0 www.infineon.com page 7 of 86 2018-07-17
