GS66508T Top-side cooled 650 V E-mode GaN transistor Preliminary Datasheet
Electrical Performance Graphs

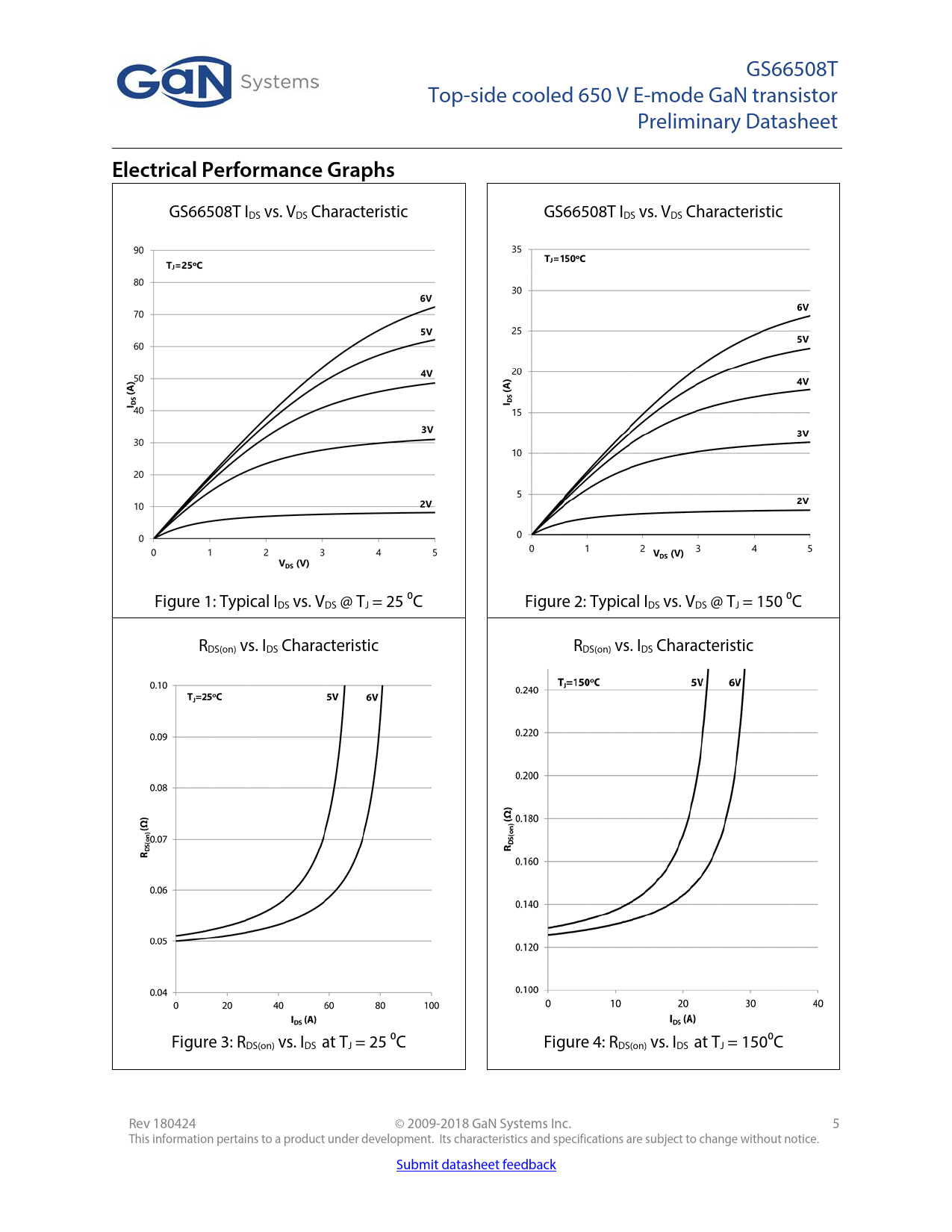

GS66508T IDS vs. VDS Characteristic GS66508T IDS vs. VDS Characteristic Figure 1: Typical IDS vs. VDS @ TJ = 25 ⁰C Figure 2: Typical IDS vs. VDS @ TJ = 150 ⁰C RDS(on) vs. IDS Characteristic RDS(on) vs. IDS Characteristic Figure 3: RDS(on) vs. IDS at TJ = 25 ⁰C Figure 4: RDS(on) vs. IDS at TJ = 150⁰C
Rev 180424 © 2009-2018 GaN Systems Inc. 5 This information pertains to a product under development. Its characteristics and specifications are subject to change without notice. Submit datasheet feedback
