Datasheet TB67H450FNG (Toshiba) - 5
| Manufacturer | Toshiba |
| Description | Capable of constant current controlling (PWM) / CW/CCW/Short Brake/Stop modes / Standby function. Brush motor driver IC |
| Pages / Page | 20 / 5 — Input and Output Equivalent Circuit |
| File Format / Size | PDF / 505 Kb |
| Document Language | English |
Input and Output Equivalent Circuit
Model Line for this Datasheet
Text Version of Document
TB67H450FNG
Input and Output Equivalent Circuit

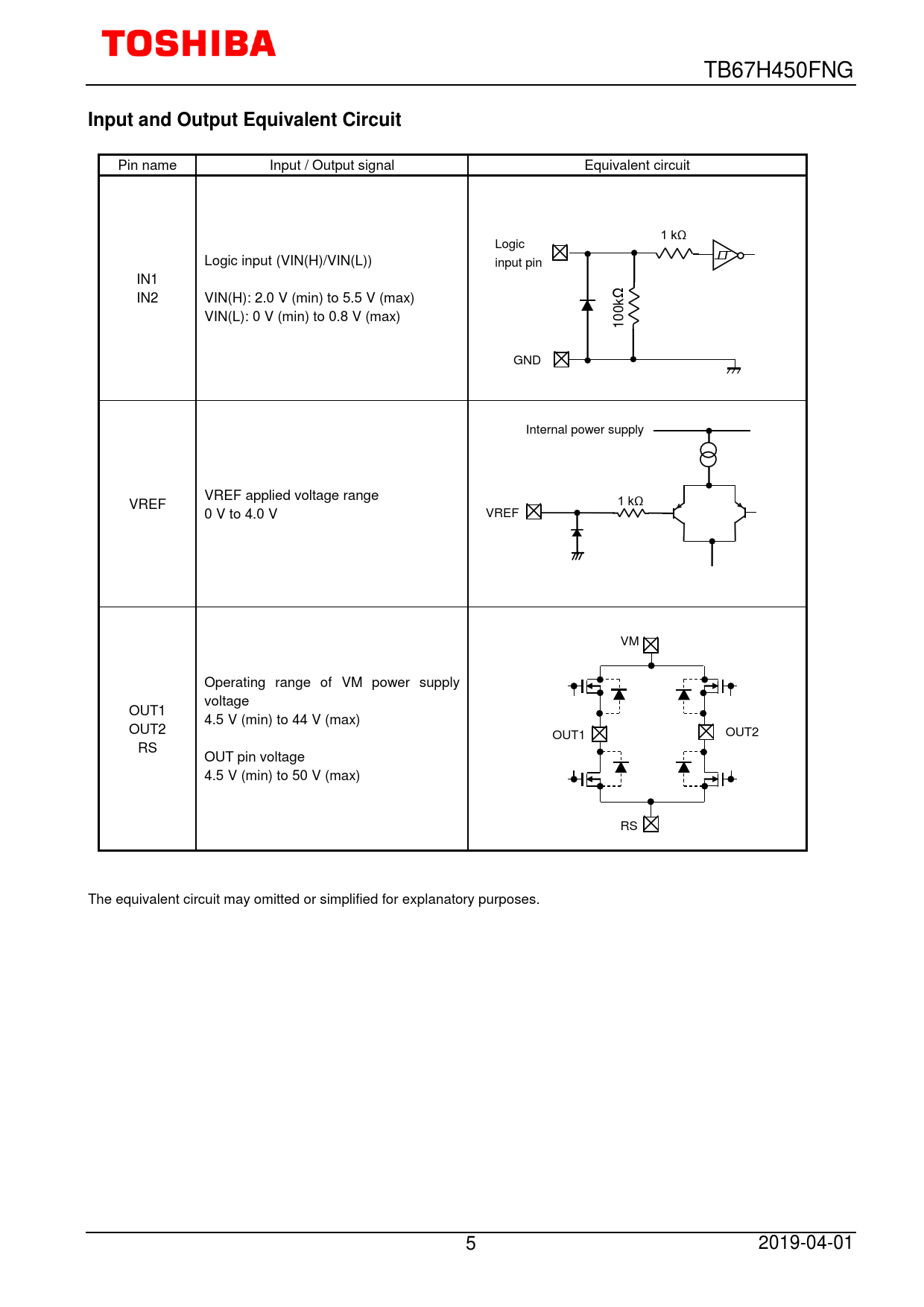

Pin name Input / Output signal Equivalent circuit 1 kΩ Logic Logic input (VIN(H)/VIN(L)) input pin IN1 IN2 VIN(H): 2.0 V (min) to 5.5 V (max) Ω VIN(L): 0 V (min) to 0.8 V (max) 100k GND Internal power supply VREF applied voltage range VREF 1 kΩ 0 V to 4.0 V VREF VM Operating range of VM power supply voltage OUT1 4.5 V (min) to 44 V (max) OUT2 OUT1 OUT2 RS OUT pin voltage 4.5 V (min) to 50 V (max) RS The equivalent circuit may omitted or simplified for explanatory purposes. 5 2019-04-01
