Datasheet TSCR400CX6H, TSCR402CX6H (Taiwan Semiconductor) - 3
| Manufacturer | Taiwan Semiconductor |
| Description | Linear Constant Current Regulated LED Driver (AEC-Q) |
| Pages / Page | 8 / 3 — TSCR400CX6H / TSCR402CX6H. ORDERING INFORMATION. ORDERING CODE. PACKAGE. … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

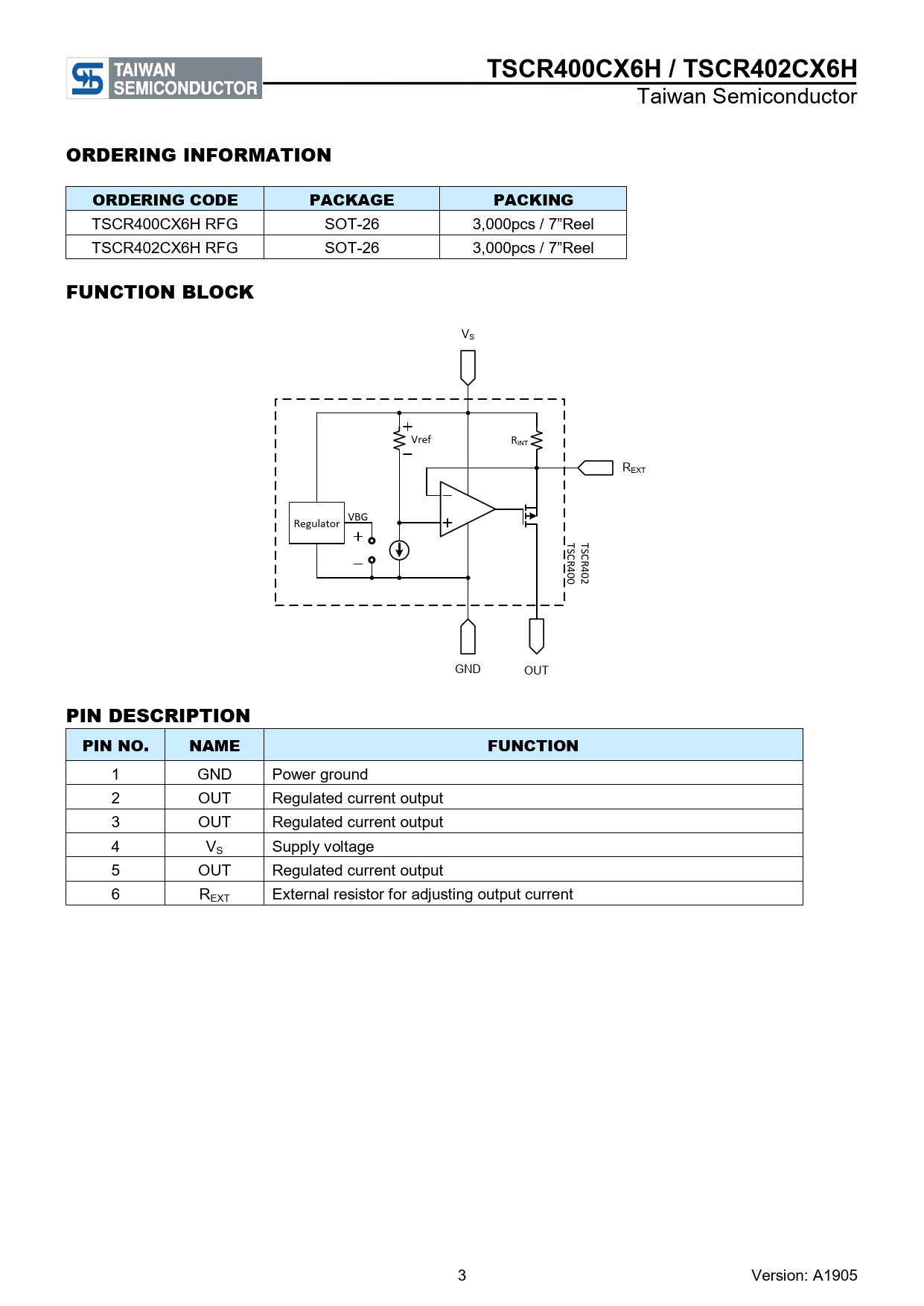

TSCR400CX6H / TSCR402CX6H. ORDERING INFORMATION. ORDERING CODE. PACKAGE. PACKING. FUNCTION BLOCK. PIN DESCRIPTION. PIN NO. NAME. FUNCTION
Model Line for this Datasheet
Text Version of Document
TSCR400CX6H / TSCR402CX6H
Taiwan Semiconductor
ORDERING INFORMATION ORDERING CODE PACKAGE PACKING
TSCR400CX6H RFG SOT-26 3,000pcs / 7”Reel TSCR402CX6H RFG SOT-26 3,000pcs / 7”Reel
FUNCTION BLOCK
VS Vref RINT REXT VBG Regulator T T S S C C R R 4 4 0 0 0 2 GND OUT
PIN DESCRIPTION PIN NO. NAME FUNCTION
1 GND Power ground 2 OUT Regulated current output 3 OUT Regulated current output 4 VS Supply voltage 5 OUT Regulated current output 6 REXT External resistor for adjusting output current
