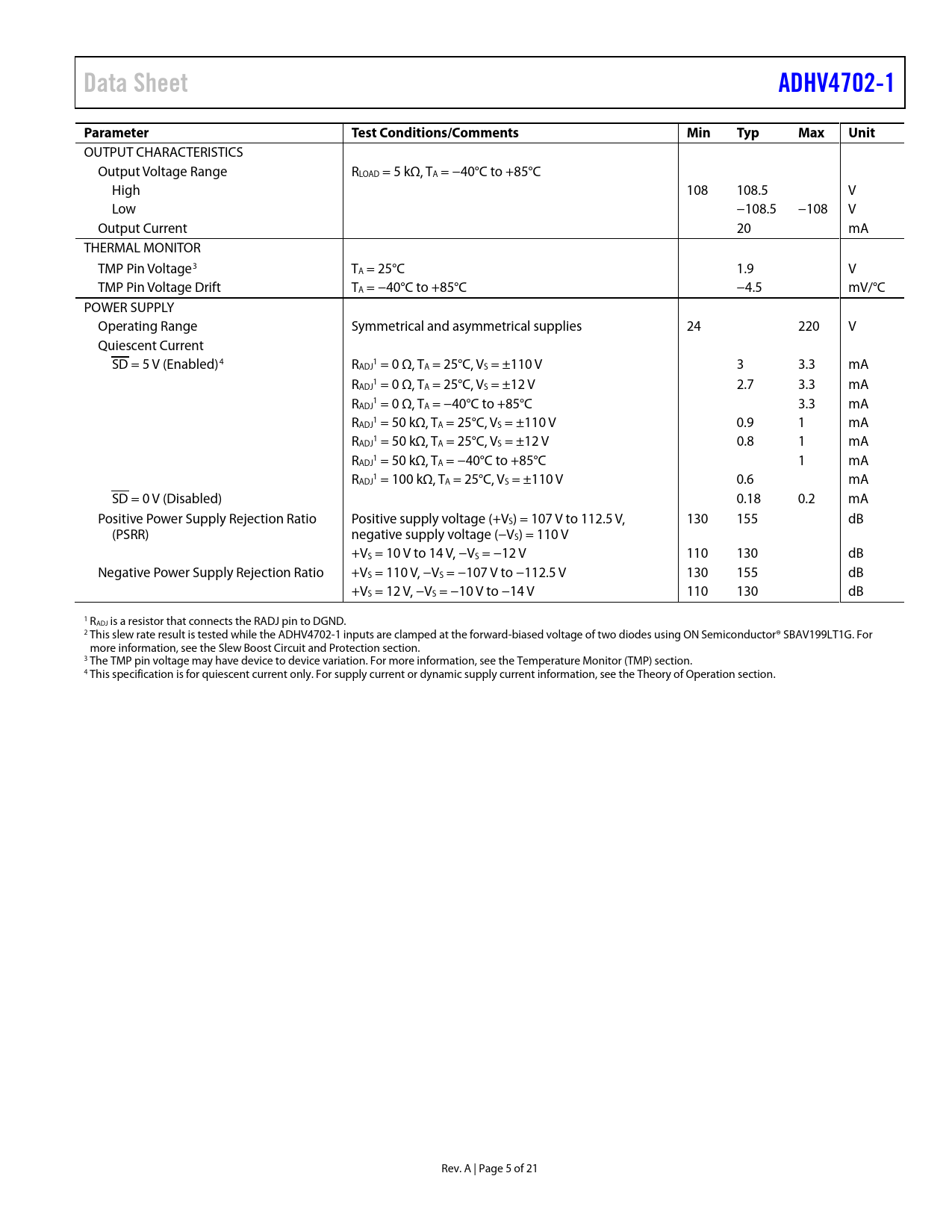

Data Sheet. ADHV4702-1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Text Version of Document
link to page 15 link to page 17 link to page 15
Data Sheet ADHV4702-1 Parameter Test Conditions/Comments Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Range RLOAD = 5 kΩ, TA = −40°C to +85°C High 108 108.5 V Low −108.5 −108 V Output Current 20 mA THERMAL MONITOR TMP Pin Voltage3 TA = 25°C 1.9 V TMP Pin Voltage Drift TA = −40°C to +85°C −4.5 mV/°C POWER SUPPLY Operating Range Symmetrical and asymmetrical supplies 24 220 V Quiescent Current SD = 5 V (Enabled)4 R 1 ADJ = 0 Ω, TA = 25°C, VS = ±110 V 3 3.3 mA R 1 ADJ = 0 Ω, TA = 25°C, VS = ±12 V 2.7 3.3 mA R 1 ADJ = 0 Ω, TA = −40°C to +85°C 3.3 mA R 1 ADJ = 50 kΩ, TA = 25°C, VS = ±110 V 0.9 1 mA R 1 ADJ = 50 kΩ, TA = 25°C, VS = ±12 V 0.8 1 mA R 1 ADJ = 50 kΩ, TA = −40°C to +85°C 1 mA R 1 ADJ = 100 kΩ, TA = 25°C, VS = ±110 V 0.6 mA SD = 0 V (Disabled) 0.18 0.2 mA Positive Power Supply Rejection Ratio Positive supply voltage (+VS) = 107 V to 112.5 V, 130 155 dB (PSRR) negative supply voltage (−VS) = 110 V +VS = 10 V to 14 V, −VS = −12 V 110 130 dB Negative Power Supply Rejection Ratio +VS = 110 V, −VS = −107 V to −112.5 V 130 155 dB +VS = 12 V, −VS = −10 V to −14 V 110 130 dB 1 RADJ is a resistor that connects the RADJ pin to DGND. 2 This slew rate result is tested while the ADHV4702-1 inputs are clamped at the forward-biased voltage of two diodes using ON Semiconductor® SBAV199LT1G. For more information, see the Slew Boost Circuit and Protection section. 3 The TMP pin voltage may have device to device variation. For more information, see the Temperature Monitor (TMP) section. 4 This specification is for quiescent current only. For supply current or dynamic supply current information, see the Theory of Operation section. Rev. A | Page 5 of 21 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATION CIRCUIT TABLE OF CONTENTS REVISION HISTORY FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ±12 V TO ±110 V SUPPLY ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INTERNAL ELECTROSTATIC DISCHARGE (ESD) PROTECTION SLEW BOOST CIRCUIT AND PROTECTION DIGITAL GROUND (DGND) RESISTOR ADJUSTABLE QUIESCENT CURRENT (RADJ) SHUTDOWN PIN (SDB) TEMPERATURE MONITOR (TMP) OVERTEMPERATURE PROTECTION OUTPUT CURRENT DRIVE AND SHORT-CIRCUIT PROTECTION EXTERNAL COMPENSATION AND CAPACITIVE LOAD (CLOAD) DRIVING SAFE OPERATING AREA LFCSP PACKAGE AND HIGH VOLTAGE PIN SPACING EXPOSED PAD (EPAD) APPLICATIONS INFORMATION POWER SUPPLY AND DECOUPLING HIGH VOLTAGE GUARD RING HIGH VOLTAGE DAC VOLTAGE SUBTRACTOR HIGH CURRENT OUTPUT DRIVER SIGNAL RANGE EXTENDER OUTLINE DIMENSIONS ORDERING GUIDE
