81 GHz to 86 GHz,. E-Band Variable Gain Amplifier. Data Sheet. HMC8121. FEATURES. GENERAL DESCRIPTION. Gain: 22 dB typical
Model Line for this Datasheet
Text Version of Document
81 GHz to 86 GHz, E-Band Variable Gain Amplifier Data Sheet HMC8121 FEATURES GENERAL DESCRIPTION Gain: 22 dB typical
The HMC8121 is an integrated E-band, gallium arsenide (GaAs),
Wide gain control range: 17 dB typical
pseudomorphic (pHEMT), monolithic microwave integrated
Output third-order intercept (OIP3): 27.5 dBm typical
circuit (MMIC), variable gain amplifier and/or driver amplifier
Output power for 1 dB compression (P1dB): 20 dBm typical
that operates from 81 GHz to 86 GHz. The HMC8121 provides up
Saturated output power (PSAT): 21 dBm typical
to 22 dB of gain, 20 dBm output P1dB, 27.5 dBm of OIP3, and
DC supply: 4 V at 265 mA
21 dBm of PSAT while requiring only 265 mA from a 4 V power
No external matching required
supply. Two gain control voltages (VCTL1 and VCTL2) are provided
Die size: 3.599 mm × 1.369 mm × 0.05 mm
to allow up to 17 dB of variable gain control. The HMC8121
APPLICATIONS
exhibits excellent linearity and is optimized for E-band communications and high capacity wireless backhaul radio
E-band communication systems
systems. All data is taken with the chip in a 50 Ω test fixture
High capacity wireless backhaul radio systems
connected via a 3 mil wide × 0.5 mil thick × 7 mil long ribbon
Test and measurement
on each port.

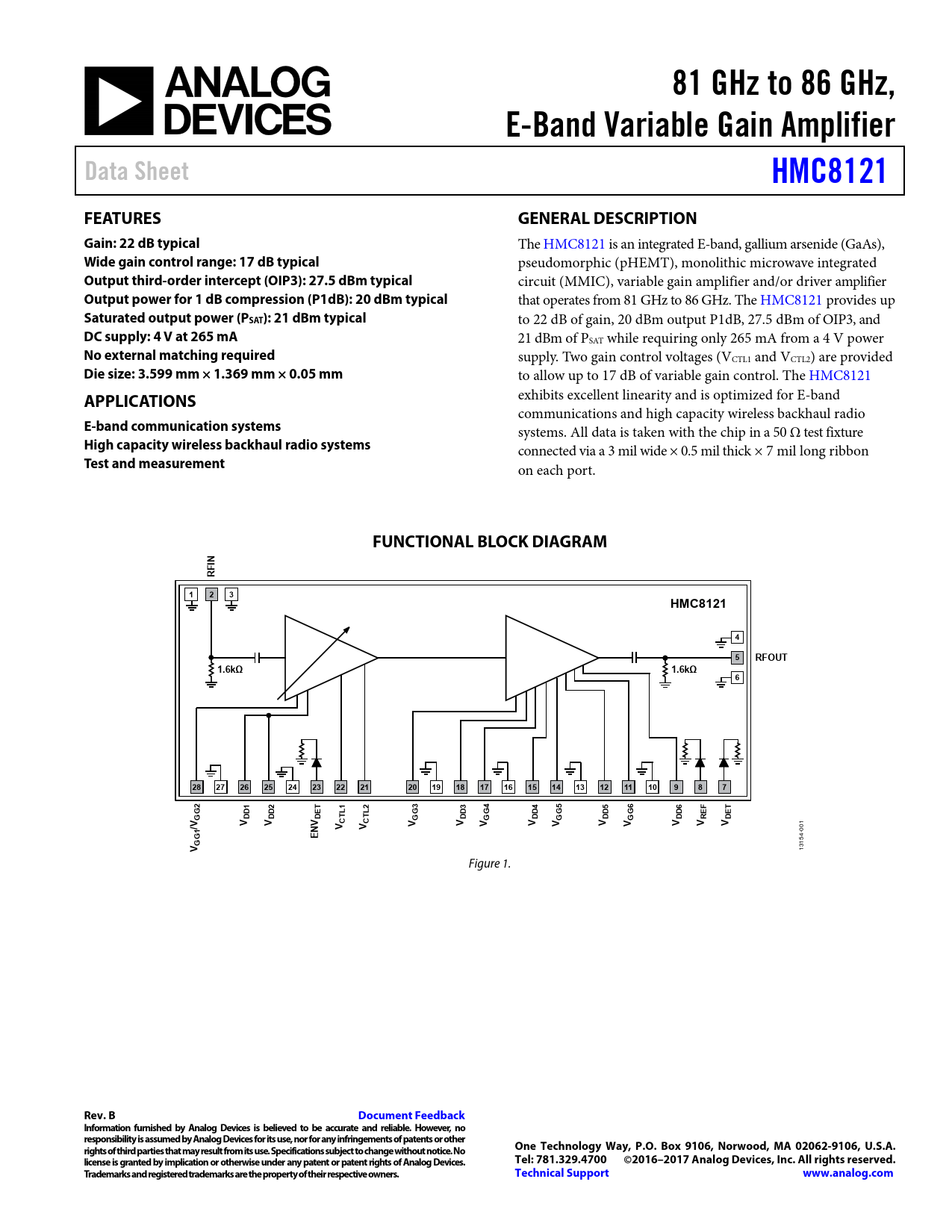

FUNCTIONAL BLOCK DIAGRAM IN RF 1 2 3 HMC8121 4 5 RFOUT 1.6kΩ 1.6kΩ 6 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 2 1 2 3 4 5 6 GG DD1 DD2 DET CTL CTL GG DD3 GG DD4 GG DD5 GG DD6 REF DET /V V V V V V V V V V V V V V 1 V V
001
EN
4-
GGV
1315 Figure 1.
