| Manufacturer | Analog Devices |
| Description | 100 MHz TO 4000 MHz RF/IF Digitally Controlled VGA |
| Pages / Page | 28 / 3 — Data Sheet. ADL5240. SPECIFICATIONS. Table 1. Parameter. Test … |
| Revision | A |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

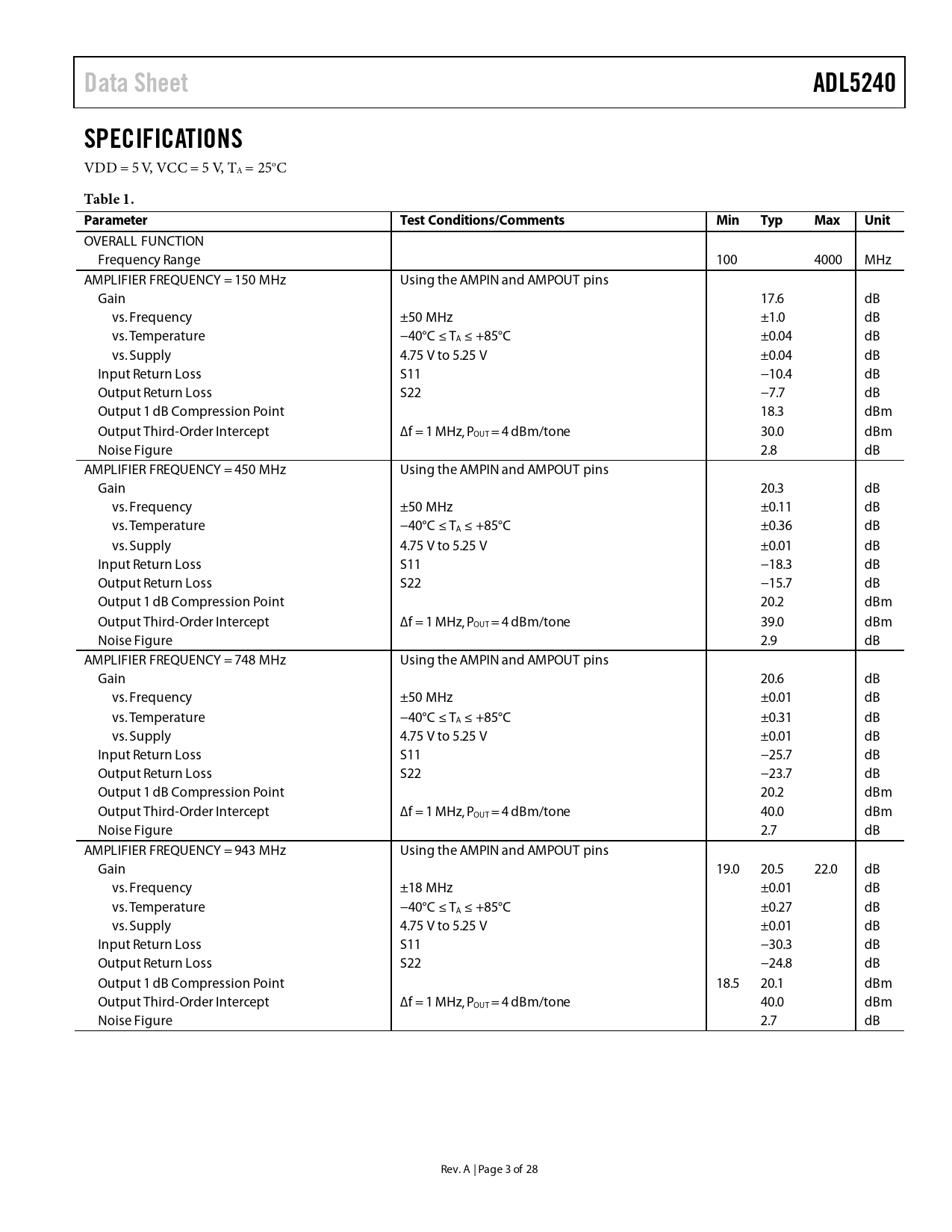

Data Sheet. ADL5240. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5240 SPECIFICATIONS
VDD = 5 V, VCC = 5 V, TA = 25oC
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 100 4000 MHz AMPLIFIER FREQUENCY = 150 MHz Using the AMPIN and AMPOUT pins Gain 17.6 dB vs. Frequency ±50 MHz ±1.0 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.04 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Input Return Loss S11 −10.4 dB Output Return Loss S22 −7.7 dB Output 1 dB Compression Point 18.3 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 30.0 dBm Noise Figure 2.8 dB AMPLIFIER FREQUENCY = 450 MHz Using the AMPIN and AMPOUT pins Gain 20.3 dB vs. Frequency ±50 MHz ±0.11 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.36 dB vs. Supply 4.75 V to 5.25 V ±0.01 dB Input Return Loss S11 −18.3 dB Output Return Loss S22 −15.7 dB Output 1 dB Compression Point 20.2 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 39.0 dBm Noise Figure 2.9 dB AMPLIFIER FREQUENCY = 748 MHz Using the AMPIN and AMPOUT pins Gain 20.6 dB vs. Frequency ±50 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.31 dB vs. Supply 4.75 V to 5.25 V ±0.01 dB Input Return Loss S11 −25.7 dB Output Return Loss S22 −23.7 dB Output 1 dB Compression Point 20.2 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 40.0 dBm Noise Figure 2.7 dB AMPLIFIER FREQUENCY = 943 MHz Using the AMPIN and AMPOUT pins Gain 19.0 20.5 22.0 dB vs. Frequency ±18 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.27 dB vs. Supply 4.75 V to 5.25 V ±0.01 dB Input Return Loss S11 −30.3 dB Output Return Loss S22 −24.8 dB Output 1 dB Compression Point 18.5 20.1 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 40.0 dBm Noise Figure 2.7 dB Rev. A | Page 3 of 28 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Basic Layout Connections Amplifier Bias Digital Step Attenuator Bias Amplifier RF Input Interface Amplifier RF Output Interface DSA RF Input Interface DSA RF Output Interface DSA SPI Interface SPI Timing SPI Timing Sequence Loop Performance Amplifier Drive Level for Optimum ACLR Thermal Considerations Evaluation Board Outline Dimensions Ordering Guide
