XC9268 Series

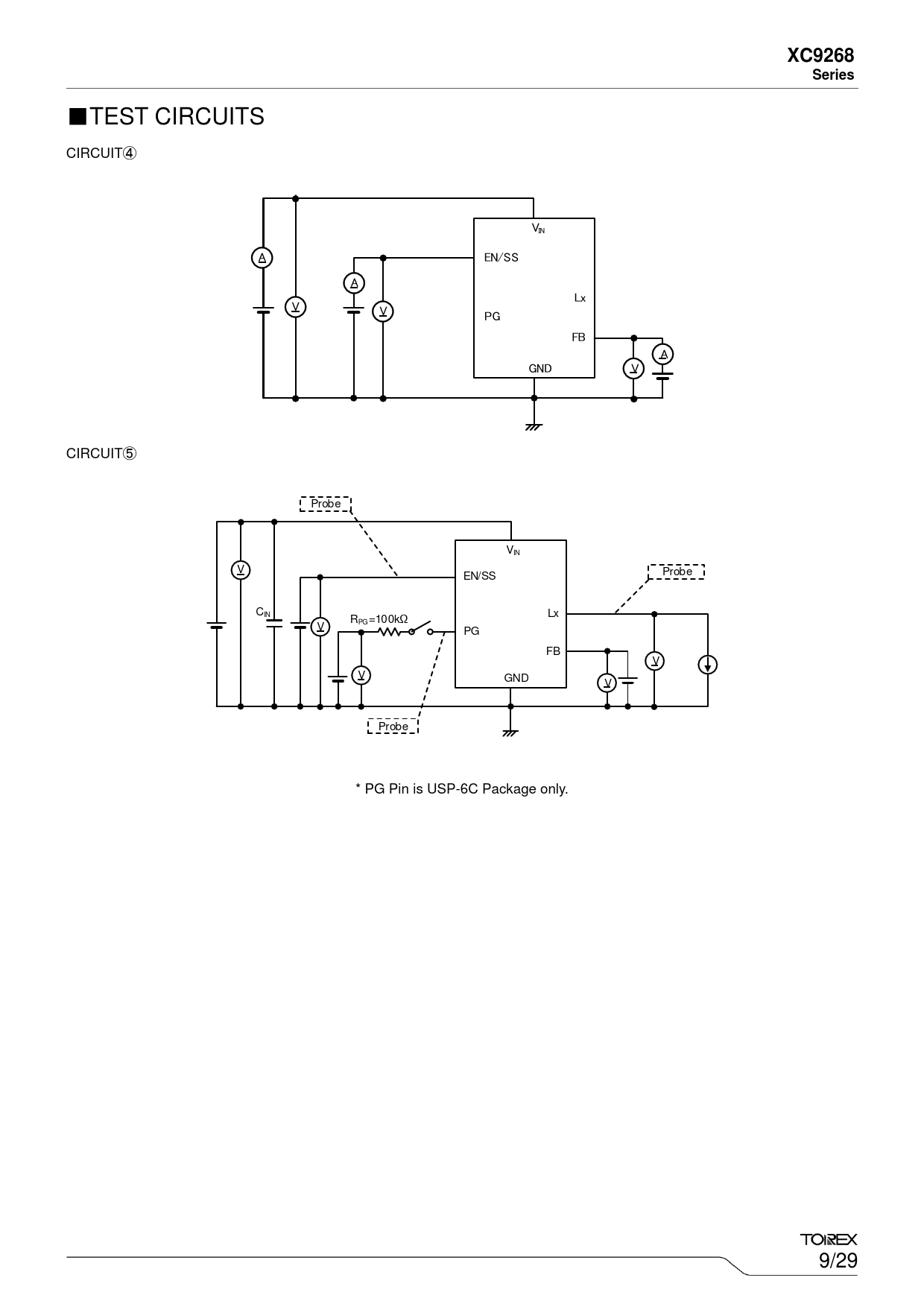

■TEST CIRCUITS CIRCUIT④ VIN A EN/SS A Lx V V PG FB A GND V CIRCUIT⑤ Probe VIN V EN/SS Probe CIN Lx R V PG =10 0kΩ PG FB V V GND V Probe * PG Pin is USP-6C Package only. 9/29
