NCD2400M. 1.6 General Conditions for Electrical Characteristics. 1.7 Capacitor Electrical Characteristics. Parameter
Model Line for this Datasheet
Text Version of Document
INTEGRATED CIRCUITS DIVISION

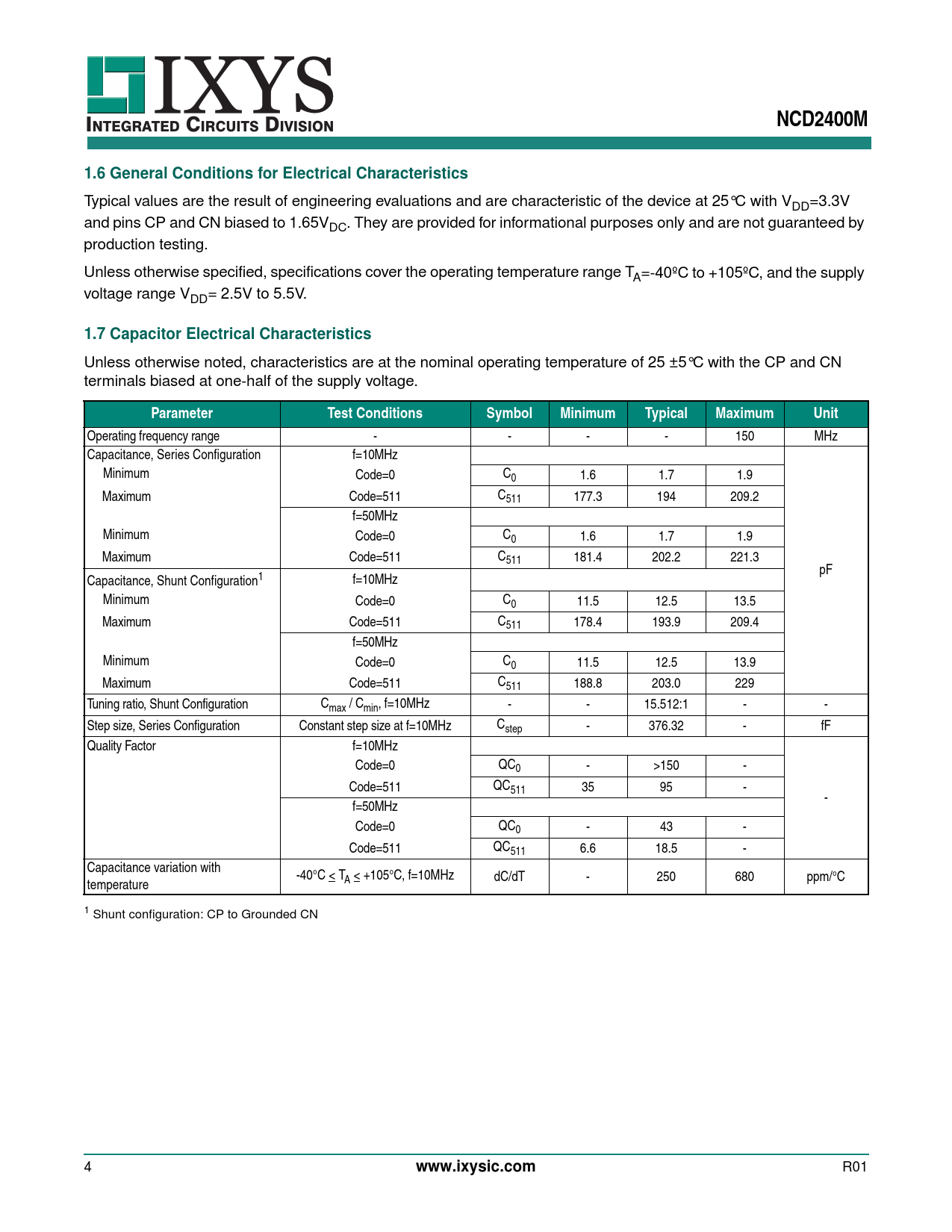

NCD2400M 1.6 General Conditions for Electrical Characteristics
Typical values are the result of engineering evaluations and are characteristic of the device at 25°C with VDD=3.3V and pins CP and CN biased to 1.65VDC. They are provided for informational purposes only and are not guaranteed by production testing. Unless otherwise specified, specifications cover the operating temperature range TA=-40ºC to +105ºC, and the supply voltage range VDD= 2.5V to 5.5V.
1.7 Capacitor Electrical Characteristics
Unless otherwise noted, characteristics are at the nominal operating temperature of 25 ±5°C with the CP and CN terminals biased at one-half of the supply voltage.
Parameter Test Conditions Symbol Minimum Typical Maximum Unit
Operating frequency range - - - - 150 MHz Capacitance, Series Configuration f=10MHz Minimum Code=0 C0 1.6 1.7 1.9 Maximum Code=511 C511 177.3 194 209.2 f=50MHz Minimum Code=0 C0 1.6 1.7 1.9 Maximum Code=511 C511 181.4 202.2 221.3 pF Capacitance, Shunt Configuration1 f=10MHz Minimum Code=0 C0 11.5 12.5 13.5 Maximum Code=511 C511 178.4 193.9 209.4 f=50MHz Minimum Code=0 C0 11.5 12.5 13.9 Maximum Code=511 C511 188.8 203.0 229 Tuning ratio, Shunt Configuration Cmax / Cmin, f=10MHz - - 15.512:1 - - Step size, Series Configuration Constant step size at f=10MHz Cstep - 376.32 - fF Quality Factor f=10MHz Code=0 QC0 - >150 - Code=511 QC511 35 95 - - f=50MHz Code=0 QC0 - 43 - Code=511 QC511 6.6 18.5 - Capacitance variation with -40°C < T temperature A < +105°C, f=10MHz dC/dT - 250 680 ppm/°C 1 Shunt configuration: CP to Grounded CN 4
www.ixysic.com
R01 Document Outline Features Applications Description 1. Specifications 1.1 Package Pinout 1.2 Pin Descriptions 1.3 Absolute Maximum Ratings 1.4 Recommended Operating Conditions 1.5 ESD Rating 1.6 General Conditions for Electrical Characteristics 1.7 Capacitor Electrical Characteristics 1.8 Digital Interface: Electrical Characteristics of SDA and SCL 1.9 Digital Interface: AC Characteristics 1.10 Power Supply 2. Performance Data 3. Functional Description 3.1 Introduction 3.2 Capacitive Digital to Analog Converter (CDAC) 3.3 Non-Volatile Memory Configuration 3.4 Device Address 3.5 Operating Modes 3.5.1 Volatile Mode 3.5.2 Non-Volatile Mode 3.6 I2C Serial Interface 3.6.1 Write Commands 3.6.2 Write Volatile Register Operation 3.6.3 Write Non-Volatile Memory Operation 3.6.4 Read Operation 3.6.5 Set Non-Volatile Mode Operation 3.6.6 Electrical and Timing Considerations 3.6.7 Application Diagrams 3.7 Capacitor Interface Electrical and Biasing Considerations 4. Capacitance Determination and Programming Procedure 5. Manufacturing Information 5.1 Moisture Sensitivity 5.2 ESD Sensitivity 5.3 Soldering Profile 5.4 Board Wash 5.5 Mechanical Dimensions 5.5.1 Package Dimensions 5.5.2 Tape & Reel Specification
NCD2400M 1.6 General Conditions for Electrical Characteristics
Typical values are the result of engineering evaluations and are characteristic of the device at 25°C with VDD=3.3V and pins CP and CN biased to 1.65VDC. They are provided for informational purposes only and are not guaranteed by production testing. Unless otherwise specified, specifications cover the operating temperature range TA=-40ºC to +105ºC, and the supply voltage range VDD= 2.5V to 5.5V.
1.7 Capacitor Electrical Characteristics
Unless otherwise noted, characteristics are at the nominal operating temperature of 25 ±5°C with the CP and CN terminals biased at one-half of the supply voltage.
Parameter Test Conditions Symbol Minimum Typical Maximum Unit
Operating frequency range - - - - 150 MHz Capacitance, Series Configuration f=10MHz Minimum Code=0 C0 1.6 1.7 1.9 Maximum Code=511 C511 177.3 194 209.2 f=50MHz Minimum Code=0 C0 1.6 1.7 1.9 Maximum Code=511 C511 181.4 202.2 221.3 pF Capacitance, Shunt Configuration1 f=10MHz Minimum Code=0 C0 11.5 12.5 13.5 Maximum Code=511 C511 178.4 193.9 209.4 f=50MHz Minimum Code=0 C0 11.5 12.5 13.9 Maximum Code=511 C511 188.8 203.0 229 Tuning ratio, Shunt Configuration Cmax / Cmin, f=10MHz - - 15.512:1 - - Step size, Series Configuration Constant step size at f=10MHz Cstep - 376.32 - fF Quality Factor f=10MHz Code=0 QC0 - >150 - Code=511 QC511 35 95 - - f=50MHz Code=0 QC0 - 43 - Code=511 QC511 6.6 18.5 - Capacitance variation with -40°C < T temperature A < +105°C, f=10MHz dC/dT - 250 680 ppm/°C 1 Shunt configuration: CP to Grounded CN 4
