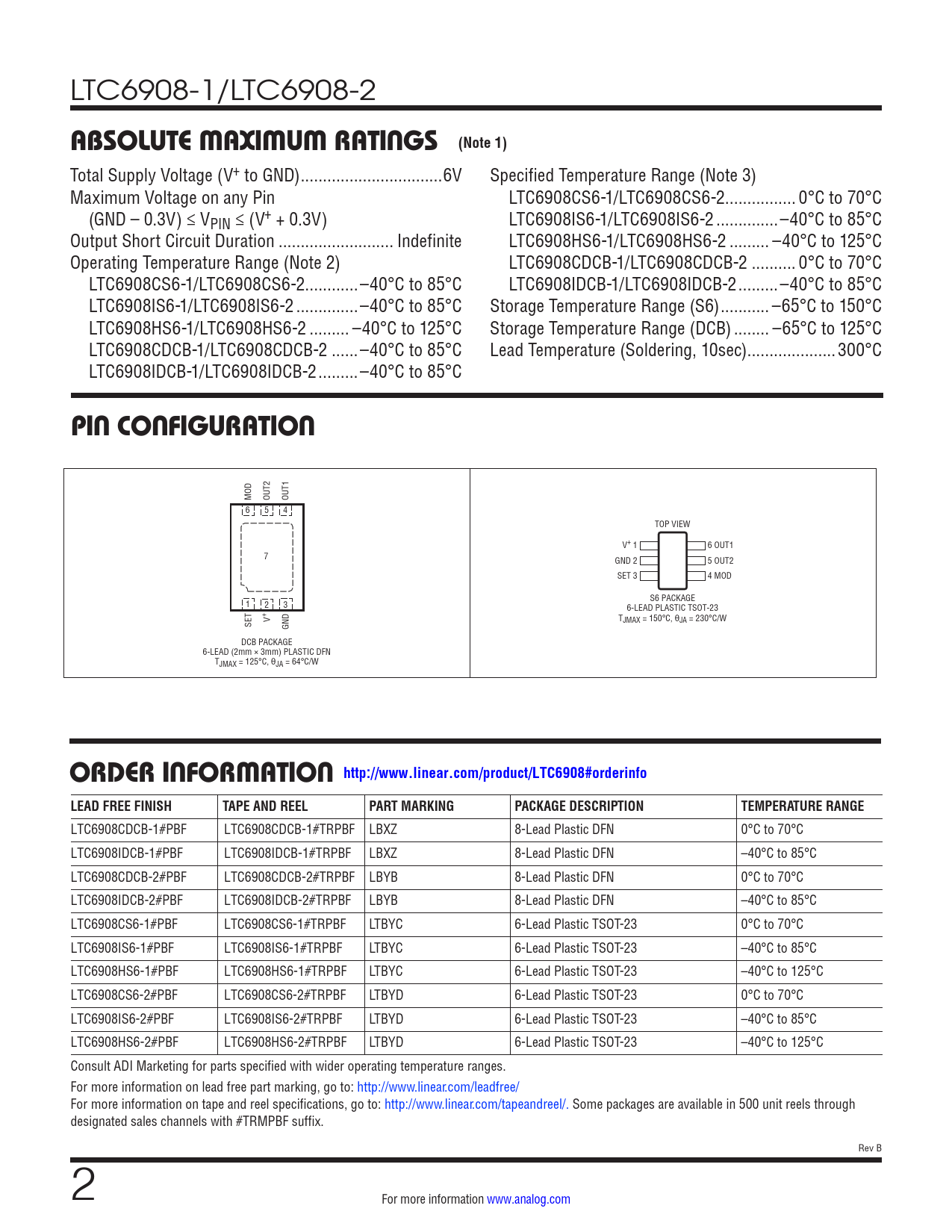

LTC6908-1/LTC6908-2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to GND) ..6V Specified Temperature Range (Note 3) Maximum Voltage on any Pin LTC6908CS6-1/LTC6908CS6-2 .. 0°C to 70°C (GND – 0.3V) ≤ VPIN ≤ (V+ + 0.3V) LTC6908IS6-1/LTC6908IS6-2 ..–40°C to 85°C Output Short Circuit Duration .. Indefinite LTC6908HS6-1/LTC6908HS6-2 ... –40°C to 125°C Operating Temperature Range (Note 2) LTC6908CDCB-1/LTC6908CDCB-2 .. 0°C to 70°C LTC6908CS6-1/LTC6908CS6-2 ..–40°C to 85°C LTC6908IDCB-1/LTC6908IDCB-2 ...–40°C to 85°C LTC6908IS6-1/LTC6908IS6-2 ..–40°C to 85°C Storage Temperature Range (S6) ... –65°C to 150°C LTC6908HS6-1/LTC6908HS6-2 ... –40°C to 125°C Storage Temperature Range (DCB) .. –65°C to 125°C LTC6908CDCB-1/LTC6908CDCB-2 ..–40°C to 85°C Lead Temperature (Soldering, 10sec)..300°C LTC6908IDCB-1/LTC6908IDCB-2 ...–40°C to 85°C
PIN CONFIGURATION
TOP VIEW MOD OUT2 OUT1 6 5 4 TOP VIEW V+ 1 6 OUT1 7 GND 2 5 OUT2 SET 3 4 MOD S6 PACKAGE 1 2 3 6-LEAD PLASTIC TSOT-23 + T SET V JMAX = 150°C, θJA = 230°C/W GND DCB PACKAGE 6-LEAD (2mm × 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 64°C/W EXPOSED PAD (PIN 7) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION http://www.linear.com/product/LTC6908#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6908CDCB-1#PBF LTC6908CDCB-1#TRPBF LBXZ 8-Lead Plastic DFN 0°C to 70°C LTC6908IDCB-1#PBF LTC6908IDCB-1#TRPBF LBXZ 8-Lead Plastic DFN –40°C to 85°C LTC6908CDCB-2#PBF LTC6908CDCB-2#TRPBF LBYB 8-Lead Plastic DFN 0°C to 70°C LTC6908IDCB-2#PBF LTC6908IDCB-2#TRPBF LBYB 8-Lead Plastic DFN –40°C to 85°C LTC6908CS6-1#PBF LTC6908CS6-1#TRPBF LTBYC 6-Lead Plastic TSOT-23 0°C to 70°C LTC6908IS6-1#PBF LTC6908IS6-1#TRPBF LTBYC 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6908HS6-1#PBF LTC6908HS6-1#TRPBF LTBYC 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6908CS6-2#PBF LTC6908CS6-2#TRPBF LTBYD 6-Lead Plastic TSOT-23 0°C to 70°C LTC6908IS6-2#PBF LTC6908IS6-2#TRPBF LTBYD 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6908HS6-2#PBF LTC6908HS6-2#TRPBF LTBYD 6-Lead Plastic TSOT-23 –40°C to 125°C Consult ADI Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev B 2 For more information www.analog.com Document Outline Features Applications Description Absolute Maximum Ratings Electrical Characteristics Pin Functions Operation Applications Information Typical Applications Package Description Typical Application
