| Description | 42V, 750mA Synchronous Step-Down Regulator with 2.5μA Quiescent Current |
| Pages / Page | 22 / 2 — ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION … |
| Revision | C |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Text Version of Document

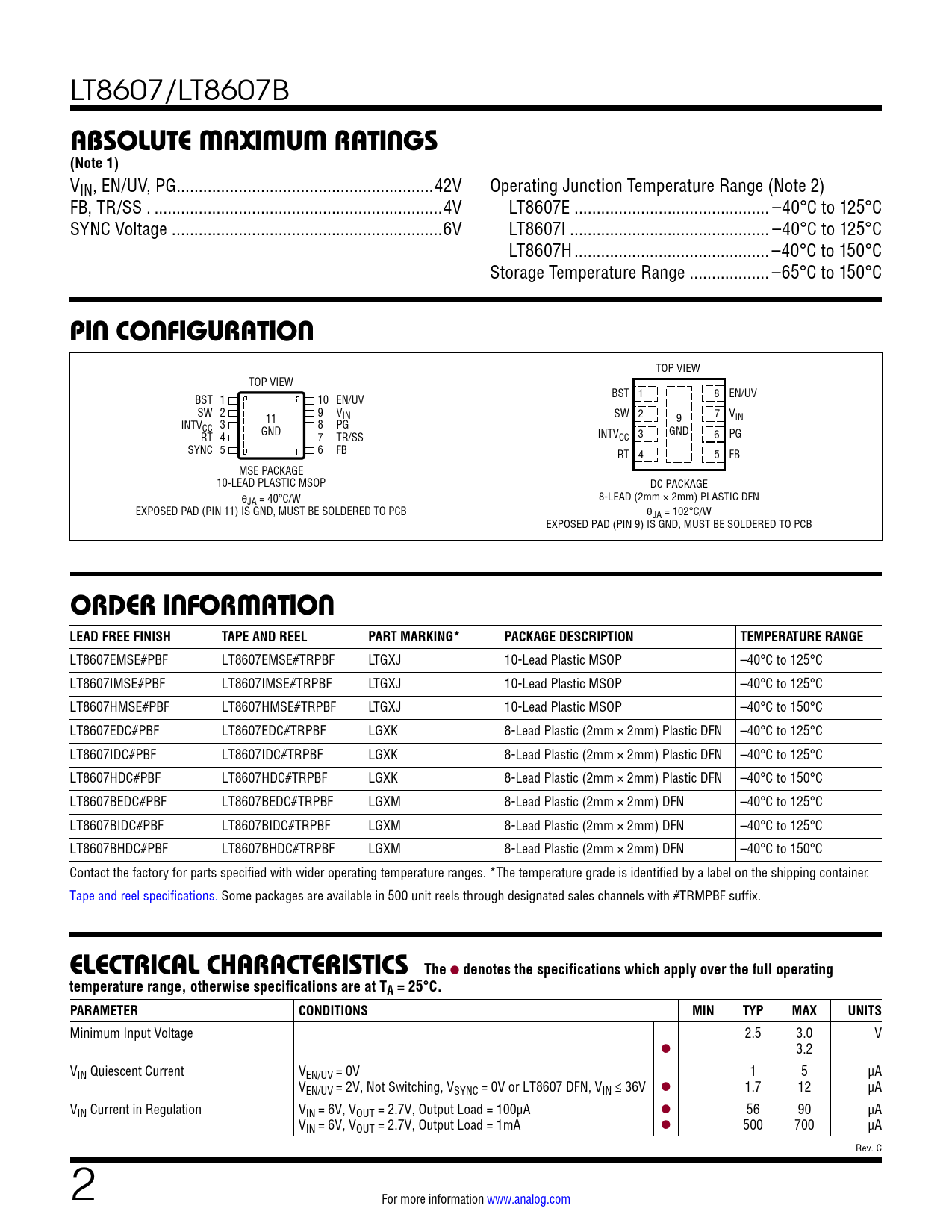

LT8607/LT8607B
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN, EN/UV, PG ..42V Operating Junction Temperature Range (Note 2) FB, TR/SS . ...4V LT8607E .. –40°C to 125°C SYNC Voltage . ..6V LT8607I ... –40°C to 125°C LT8607H .. –40°C to 150°C Storage Temperature Range .. –65°C to 150°C
PIN CONFIGURATION
TOP VIEW TOP VIEW 1 8 BST 1 10 EN/UV BST EN/UV SW 2 9 VIN SW 2 7 V 9 IN INTV 11 CC 3 8 PG GND RT 4 GND 7 TR/SS INTVCC 3 6 PG SYNC 5 6 FB RT 4 5 FB MSE PACKAGE 10-LEAD PLASTIC MSOP DC PACKAGE θJA = 40°C/W 8-LEAD (2mm × 2mm) PLASTIC DFN EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB θJA = 102°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8607EMSE#PBF LT8607EMSE#TRPBF LTGXJ 10-Lead Plastic MSOP –40°C to 125°C LT8607IMSE#PBF LT8607IMSE#TRPBF LTGXJ 10-Lead Plastic MSOP –40°C to 125°C LT8607HMSE#PBF LT8607HMSE#TRPBF LTGXJ 10-Lead Plastic MSOP –40°C to 150°C LT8607EDC#PBF LT8607EDC#TRPBF LGXK 8-Lead Plastic (2mm × 2mm) Plastic DFN –40°C to 125°C LT8607IDC#PBF LT8607IDC#TRPBF LGXK 8-Lead Plastic (2mm × 2mm) Plastic DFN –40°C to 125°C LT8607HDC#PBF LT8607HDC#TRPBF LGXK 8-Lead Plastic (2mm × 2mm) Plastic DFN –40°C to 150°C LT8607BEDC#PBF LT8607BEDC#TRPBF LGXM 8-Lead Plastic (2mm × 2mm) DFN –40°C to 125°C LT8607BIDC#PBF LT8607BIDC#TRPBF LGXM 8-Lead Plastic (2mm × 2mm) DFN –40°C to 125°C LT8607BHDC#PBF LT8607BHDC#TRPBF LGXM 8-Lead Plastic (2mm × 2mm) DFN –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
