Datasheet ADXL1005 (Analog Devices) - 14
| Manufacturer | Analog Devices |
| Description | Low Noise, Wide Bandwidth, MEMS Accelerometer |
| Pages / Page | 14 / 14 — ADXL1005. Data Sheet. OUTLINE DIMENSIONS. DETAIL A. (JEDEC 95). 5.10. … |
| File Format / Size | PDF / 499 Kb |
| Document Language | English |

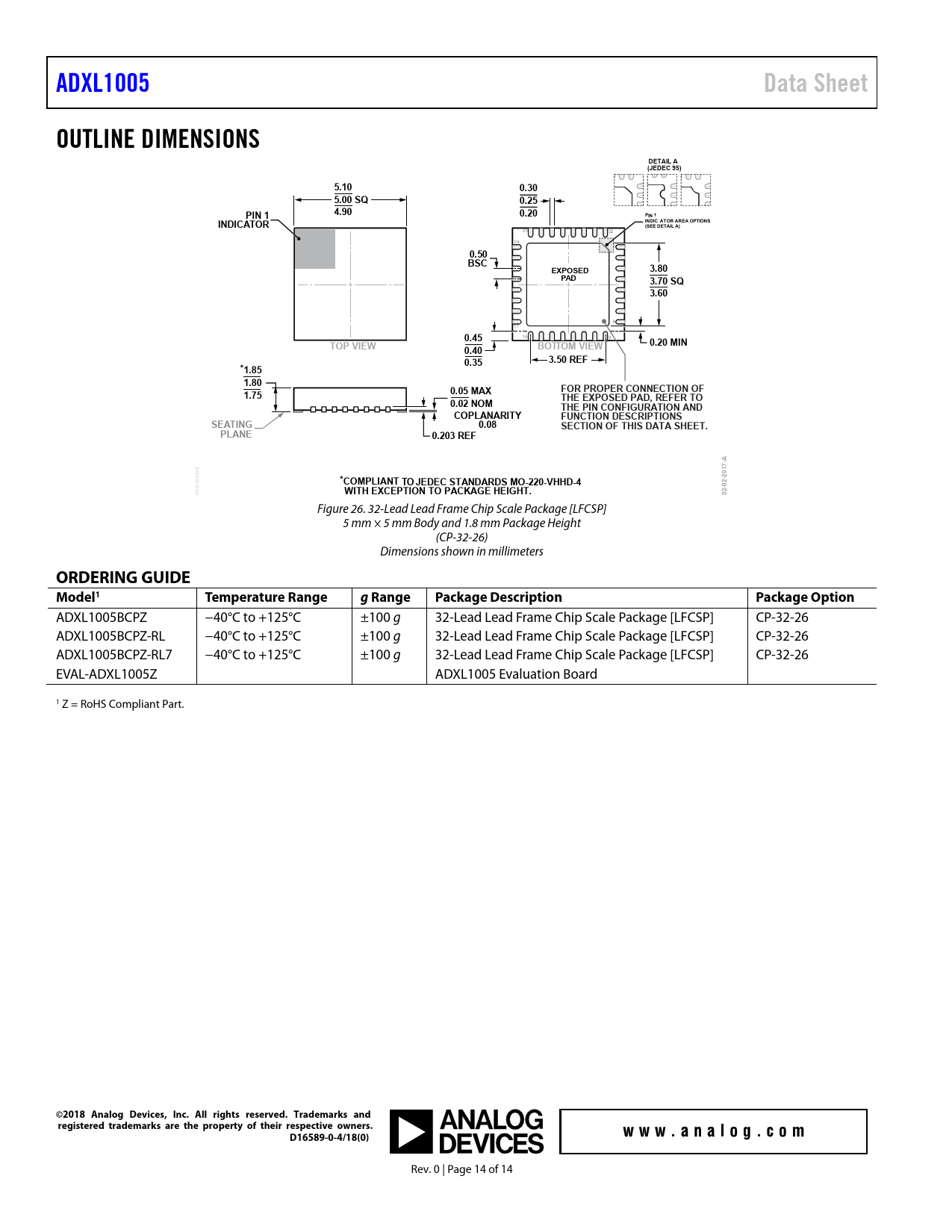

ADXL1005. Data Sheet. OUTLINE DIMENSIONS. DETAIL A. (JEDEC 95). 5.10. 0.30. 5.00 SQ. 0.25. PIN 1. 4.90. 0.20. INDICATOR
Model Line for this Datasheet
Text Version of Document
ADXL1005 Data Sheet OUTLINE DIMENSIONS DETAIL A (JEDEC 95) 5.10 0.30 5.00 SQ 0.25 PIN 1 4.90 0.20 PIN 1 INDICATOR INDIC ATOR AREA OPTIONS (SEE DETAIL A) 25 32 24 1 0.50 BSC EXPOSED 3.80 PAD 3.70 SQ 3.60 8 17 16 9 0.45 TOP VIEW BOTTOM VIEW 0.20 MIN 0.40 0.35 3.50 REF *1.85 1.80 0.05 MAX FOR PROPER CONNECTION OF 1.75 THE EXPOSED PAD, REFER TO 0.02 NOM THE PIN CONFIGURATION AND COPLANARITY FUNCTION DESCRIPTIONS SEATING 0.08 SECTION OF THIS DATA SHEET. PLANE 0.203 REF -A 29 2017 048 * -0 COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-4 G -02- K P WITH EXCEPTION TO PACKAGE HEIGHT. 02
Figure 26. 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 1.8 mm Package Height (CP-32-26) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range g Range Package Description Package Option
ADXL1005BCPZ −40°C to +125°C ±100 g 32-Lead Lead Frame Chip Scale Package [LFCSP] CP-32-26 ADXL1005BCPZ-RL −40°C to +125°C ±100 g 32-Lead Lead Frame Chip Scale Package [LFCSP] CP-32-26 ADXL1005BCPZ-RL7 −40°C to +125°C ±100 g 32-Lead Lead Frame Chip Scale Package [LFCSP] CP-32-26 EVAL-ADXL1005Z ADXL1005 Evaluation Board 1 Z = RoHS Compliant Part.
