Datasheet TB67S158NG (Toshiba) - 5
| Manufacturer | Toshiba |
| Description | Bi-CD Integrated Circuit Silicon Monolithic |
| Pages / Page | 24 / 5 — 3-2. Pin assignment and description of TB67S158 (SDIP) |
| File Format / Size | PDF / 735 Kb |
| Document Language | English |

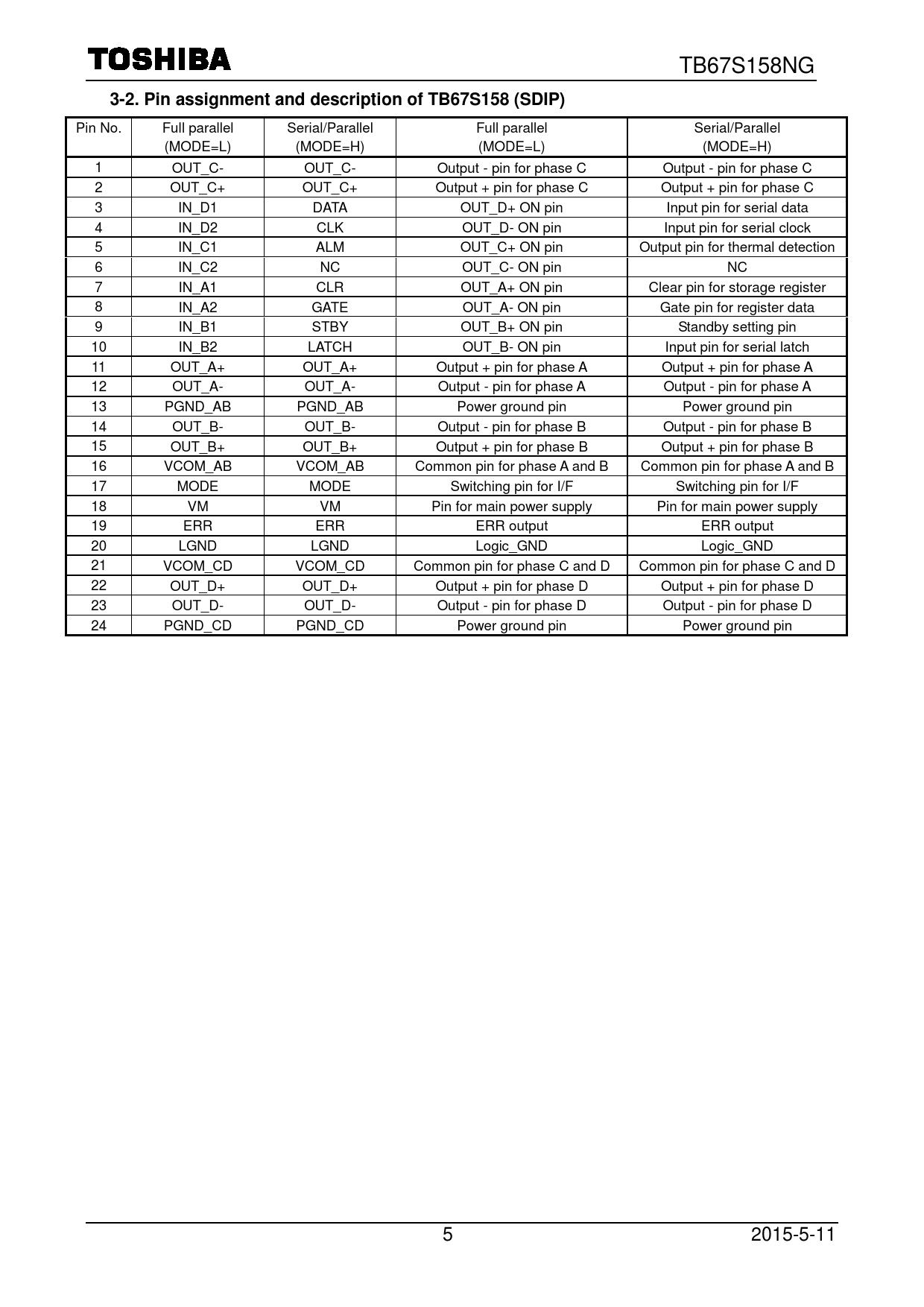

3-2. Pin assignment and description of TB67S158 (SDIP)
Model Line for this Datasheet
Text Version of Document
TB67S158NG
3-2. Pin assignment and description of TB67S158 (SDIP)
Pin No. Full parallel Serial/Parallel Full parallel Serial/Parallel (MODE=L) (MODE=H) (MODE=L) (MODE=H) 1 OUT_C- OUT_C- Output - pin for phase C Output - pin for phase C 2 OUT_C+ OUT_C+ Output + pin for phase C Output + pin for phase C 3 IN_D1 DATA OUT_D+ ON pin Input pin for serial data 4 IN_D2 CLK OUT_D- ON pin Input pin for serial clock 5 IN_C1 ALM OUT_C+ ON pin Output pin for thermal detection 6 IN_C2 NC OUT_C- ON pin NC 7 IN_A1 CLR OUT_A+ ON pin Clear pin for storage register 8 IN_A2 GATE OUT_A- ON pin Gate pin for register data 9 IN_B1 STBY OUT_B+ ON pin Standby setting pin 10 IN_B2 LATCH OUT_B- ON pin Input pin for serial latch 11 OUT_A+ OUT_A+ Output + pin for phase A Output + pin for phase A 12 OUT_A- OUT_A- Output - pin for phase A Output - pin for phase A 13 PGND_AB PGND_AB Power ground pin Power ground pin 14 OUT_B- OUT_B- Output - pin for phase B Output - pin for phase B 15 OUT_B+ OUT_B+ Output + pin for phase B Output + pin for phase B 16 VCOM_AB VCOM_AB Common pin for phase A and B Common pin for phase A and B 17 MODE MODE Switching pin for I/F Switching pin for I/F 18 VM VM Pin for main power supply Pin for main power supply 19 ERR ERR ERR output ERR output 20 LGND LGND Logic_GND Logic_GND 21 VCOM_CD VCOM_CD Common pin for phase C and D Common pin for phase C and D 22 OUT_D+ OUT_D+ Output + pin for phase D Output + pin for phase D 23 OUT_D- OUT_D- Output - pin for phase D Output - pin for phase D 24 PGND_CD PGND_CD Power ground pin Power ground pin
5 2015-5-11
3-2. Pin assignment and description of TB67S158 (SDIP)
Pin No. Full parallel Serial/Parallel Full parallel Serial/Parallel (MODE=L) (MODE=H) (MODE=L) (MODE=H) 1 OUT_C- OUT_C- Output - pin for phase C Output - pin for phase C 2 OUT_C+ OUT_C+ Output + pin for phase C Output + pin for phase C 3 IN_D1 DATA OUT_D+ ON pin Input pin for serial data 4 IN_D2 CLK OUT_D- ON pin Input pin for serial clock 5 IN_C1 ALM OUT_C+ ON pin Output pin for thermal detection 6 IN_C2 NC OUT_C- ON pin NC 7 IN_A1 CLR OUT_A+ ON pin Clear pin for storage register 8 IN_A2 GATE OUT_A- ON pin Gate pin for register data 9 IN_B1 STBY OUT_B+ ON pin Standby setting pin 10 IN_B2 LATCH OUT_B- ON pin Input pin for serial latch 11 OUT_A+ OUT_A+ Output + pin for phase A Output + pin for phase A 12 OUT_A- OUT_A- Output - pin for phase A Output - pin for phase A 13 PGND_AB PGND_AB Power ground pin Power ground pin 14 OUT_B- OUT_B- Output - pin for phase B Output - pin for phase B 15 OUT_B+ OUT_B+ Output + pin for phase B Output + pin for phase B 16 VCOM_AB VCOM_AB Common pin for phase A and B Common pin for phase A and B 17 MODE MODE Switching pin for I/F Switching pin for I/F 18 VM VM Pin for main power supply Pin for main power supply 19 ERR ERR ERR output ERR output 20 LGND LGND Logic_GND Logic_GND 21 VCOM_CD VCOM_CD Common pin for phase C and D Common pin for phase C and D 22 OUT_D+ OUT_D+ Output + pin for phase D Output + pin for phase D 23 OUT_D- OUT_D- Output - pin for phase D Output - pin for phase D 24 PGND_CD PGND_CD Power ground pin Power ground pin
5 2015-5-11
