Features
•
Full Wave Current Sensing
•
Compensated Mains Supply Variations
•
Variable Soft Start or Load-current Sensing
•
Voltage and Current Synchronization
•
Switchable Automatic Retriggering
•
Triggering Pulse Typically 125mA
•
Internal Supply-voltage Monitoring
•
Current Requirement
≤
3mA Low-cost Applications Phase-control
•
Low-cost Motor Control
•
Domestic Appliance IC with Soft Start 1. Description
The Atmel® U2008B is designed as a phase-control circuit in bipolar technology. It enables load-current detection as well as mains-compensated phase control. Motor
Atmel U2008B
control with load-current feedback and overload protection are preferred applications.

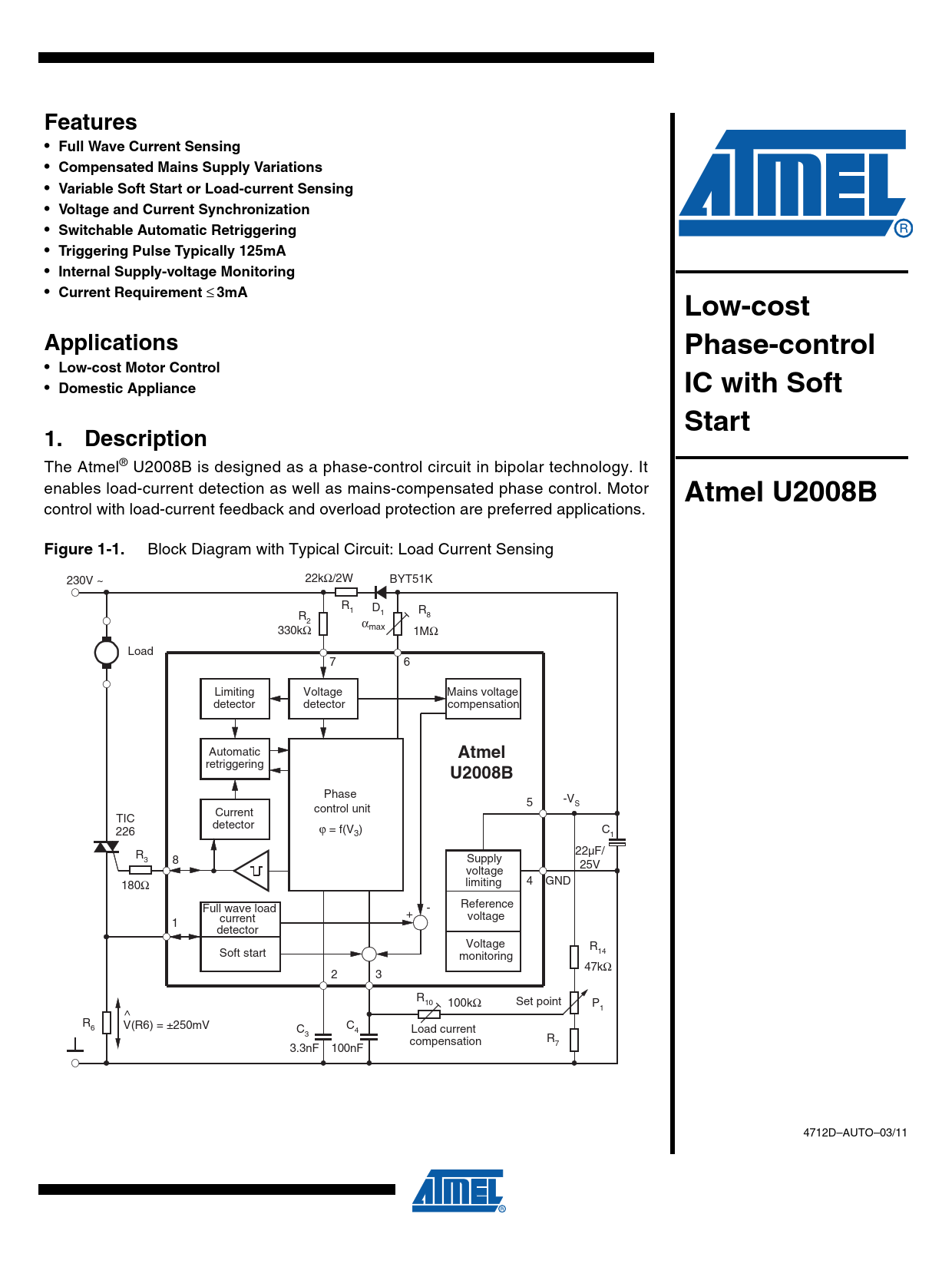

Figure 1-1.
Block Diagram with Typical Circuit: Load Current Sensing 230V ~ 22kΩ/2W BYT51K R1 D R 1 R8 2 α 330kΩ max 1MΩ Load 7 6 Limiting Voltage Mains voltage detector detector compensation Automatic
