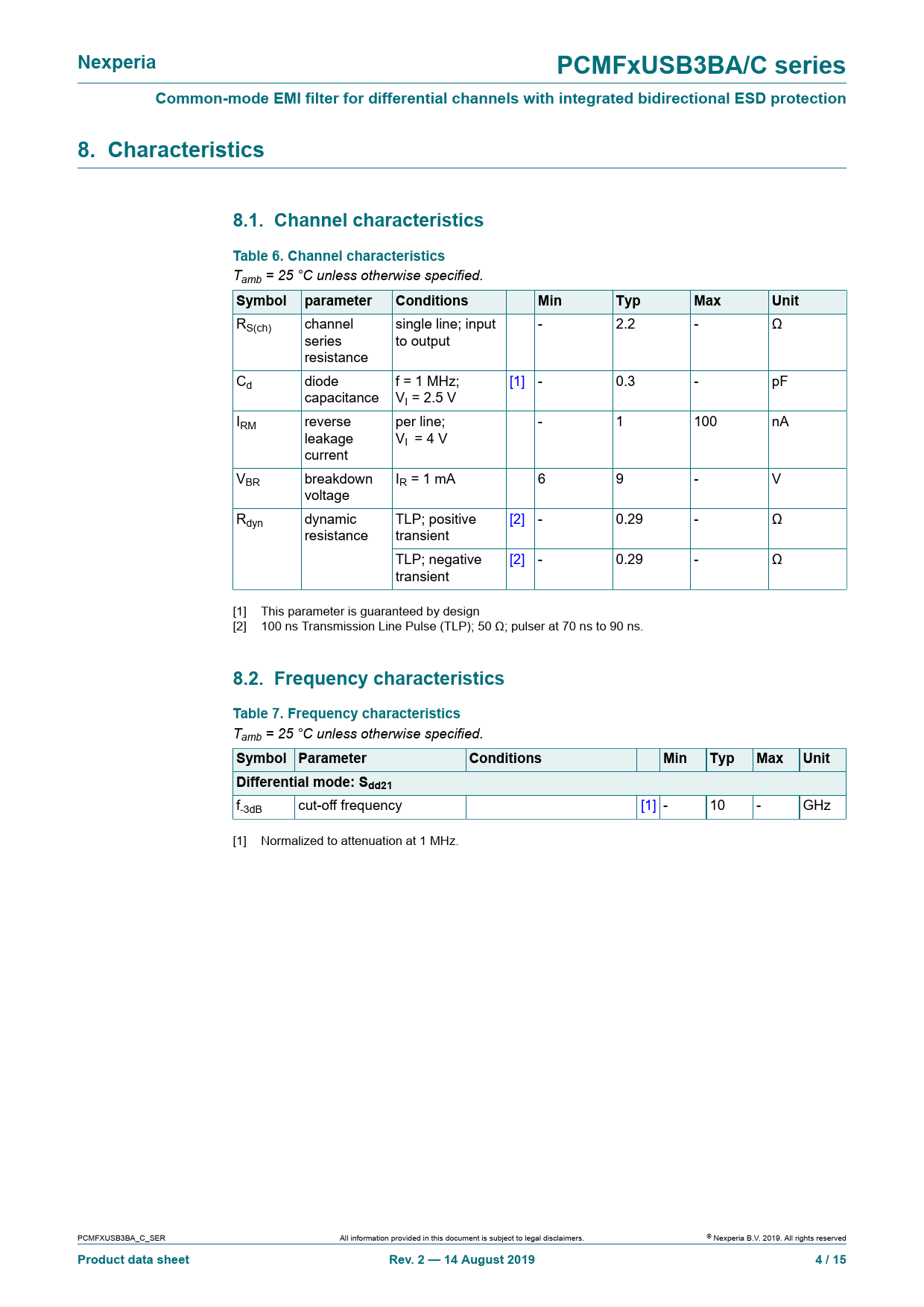

Nexperia PCMFxUSB3BA/C series Common-mode EMI filter for differential channels with integrated bidirectional ESD protection 8. Characteristics 8.1. Channel characteristics Table 6. Channel characteristics
Tamb = 25 °C unless otherwise specified.
Symbol parameter Conditions Min Typ Max Unit
RS(ch) channel single line; input - 2.2 - Ω series to output resistance Cd diode f = 1 MHz; [1] - 0.3 - pF capacitance VI = 2.5 V IRM reverse per line; - 1 100 nA leakage VI = 4 V current VBR breakdown IR = 1 mA 6 9 - V voltage Rdyn dynamic TLP; positive [2] - 0.29 - Ω resistance transient TLP; negative [2] - 0.29 - Ω transient [1] This parameter is guaranteed by design [2] 100 ns Transmission Line Pulse (TLP); 50 Ω; pulser at 70 ns to 90 ns.
8.2. Frequency characteristics Table 7. Frequency characteristics
Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Differential mode: Sdd21
f-3dB cut-of frequency [1] - 10 - GHz [1] Normalized to attenuation at 1 MHz. PCMFXUSB3BA_C_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet Rev. 2 — 14 August 2019 4 / 15
