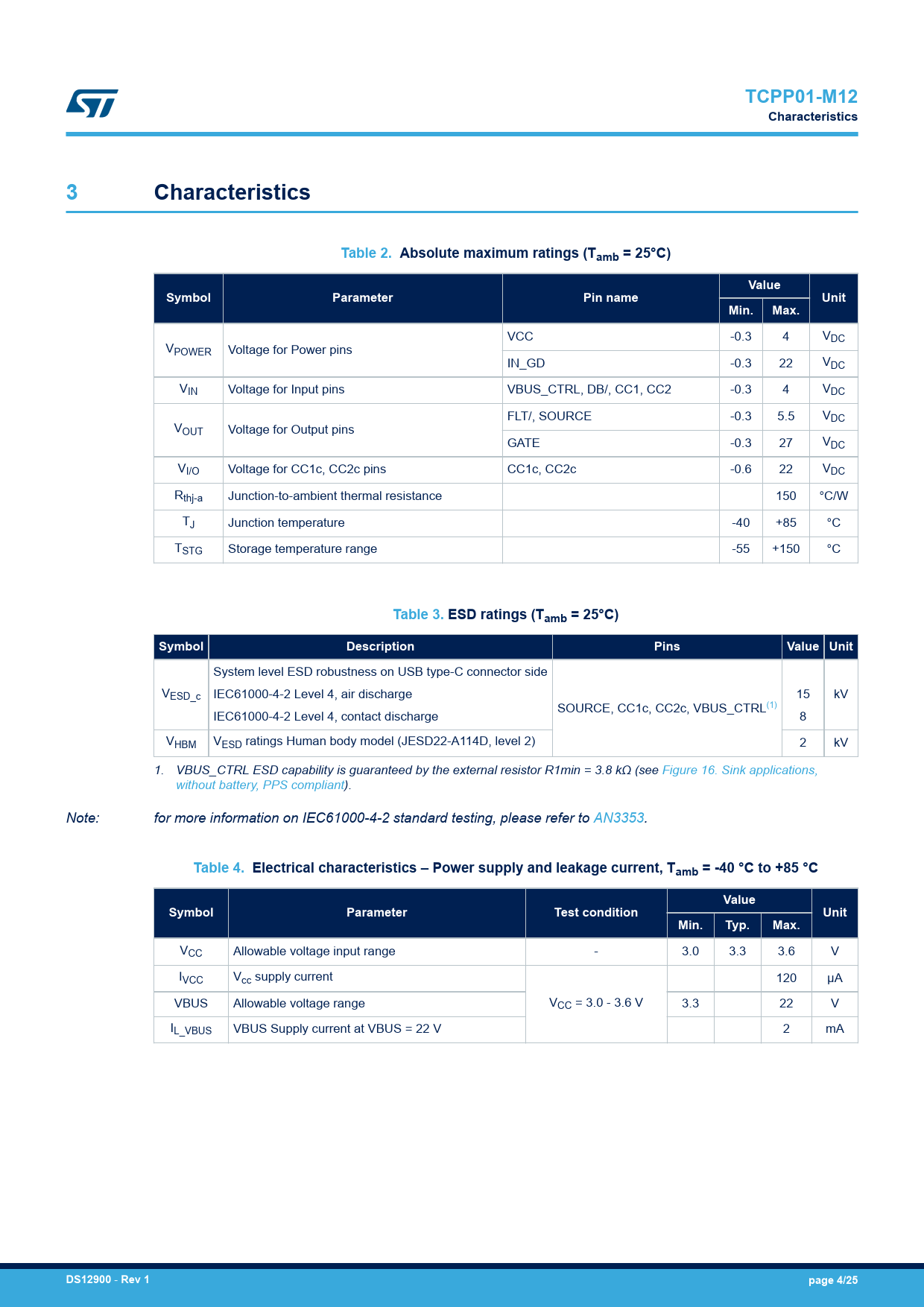

TCPP01-M12 Characteristics 3 Characteristics Table 2. Absolute maximum ratings (Tamb = 25°C) Value Symbol Parameter Pin name Unit Min. Max.
VCC -0.3 4 VDC VPOWER Voltage for Power pins IN_GD -0.3 22 VDC VIN Voltage for Input pins VBUS_CTRL, DB/, CC1, CC2 -0.3 4 VDC FLT/, SOURCE -0.3 5.5 VDC VOUT Voltage for Output pins GATE -0.3 27 VDC VI/O Voltage for CC1c, CC2c pins CC1c, CC2c -0.6 22 VDC Rthj-a Junction-to-ambient thermal resistance 150 °C/W TJ Junction temperature -40 +85 °C TSTG Storage temperature range -55 +150 °C
Table 3. ESD ratings (Tamb = 25°C) Symbol Description Pins Value Unit
System level ESD robustness on USB type-C connector side VESD_c IEC61000-4-2 Level 4, air discharge 15 kV SOURCE, CC1c, CC2c, VBUS_CTRL(1) IEC61000-4-2 Level 4, contact discharge 8 VHBM VESD ratings Human body model (JESD22-A114D, level 2) 2 kV 1. VBUS_CTRL ESD capability is guaranteed by the external resistor R1min = 3.8 kΩ (see Figure 16. Sink applications, without battery, PPS compliant). Note: for more information on IEC61000-4-2 standard testing, please refer to AN3353.
Table 4. Electrical characteristics – Power supply and leakage current, Tamb = -40 °C to +85 °C Value Symbol Parameter Test condition Unit Min. Typ. Max.
VCC Allowable voltage input range - 3.0 3.3 3.6 V IVCC Vcc supply current 120 µA VBUS Allowable voltage range VCC = 3.0 - 3.6 V 3.3 22 V IL_VBUS VBUS Supply current at VBUS = 22 V 2 mA
DS12900
-
Rev 1 page 4/25
