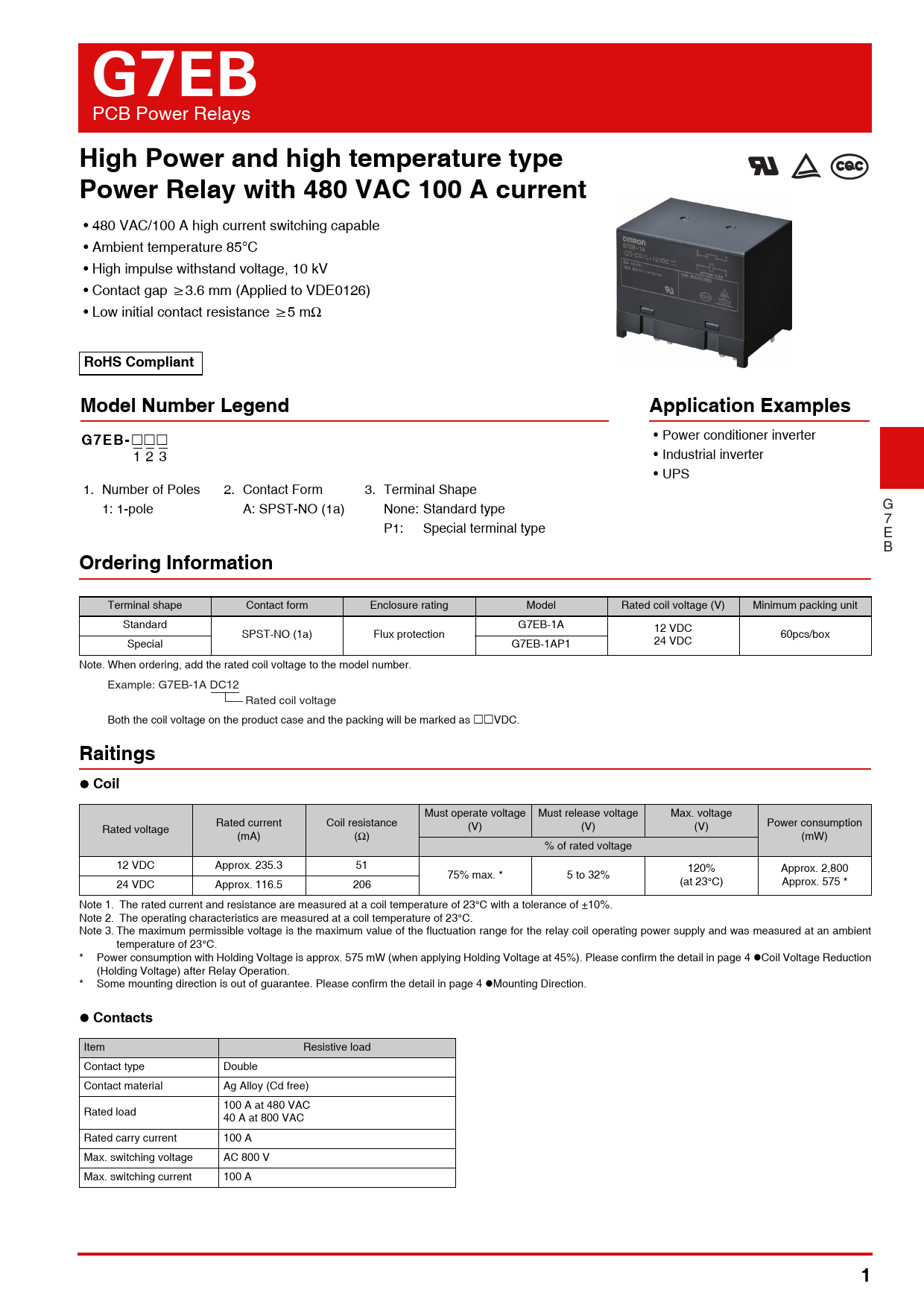

G7EB PCB Power Relays
High Power and high temperature type Power Relay with 480 VAC 100 A current
• 480 VAC/100 A high current switching capable • Ambient temperature 85°C • High impulse withstand voltage, 10 kV • Contact gap ≥3.6 mm (Applied to VDE0126) • Low initial contact resistance ≥5 mΩ
RoHS Compliant Model Number Legend Application Examples
• Power conditioner inverter
G7EB-
1 2 3 • Industrial inverter • UPS 1. Number of Poles 2. Contact Form 3. Terminal Shape G 1: 1-pole A: SPST-NO (1a) None: Standard type 7 P1: Special terminal type E B
Ordering Information
Terminal shape Contact form Enclosure rating Model Rated coil voltage (V) Minimum packing unit Standard G7EB-1A 12 VDC SPST-NO (1a) Flux protection 60pcs/box 24 VDC Special G7EB-1AP1 Note. When ordering, add the rated coil voltage to the model number. Example: G7EB-1A DC12 Rated coil voltage Both the coil voltage on the product case and the packing will be marked as VDC.
Raitings Coil
Must operate voltage Must release voltage Max. voltage Rated current Coil resistance Rated voltage (V) (V) (V) Power consumption (mA) (Ω) (mW) % of rated voltage 12 VDC Approx. 235.3 51 120% Approx. 2,800 75% max. * 5 to 32% (at 23°C) Approx. 575 * 24 VDC Approx. 116.5 206 Note 1. The rated current and resistance are measured at a coil temperature of 23°C with a tolerance of ±10%. Note 2. The operating characteristics are measured at a coil temperature of 23°C. Note 3. The maximum permissible voltage is the maximum value of the fluctuation range for the relay coil operating power supply and was measured at an ambient temperature of 23°C. * Power consumption with Holding Voltage is approx. 575 mW (when applying Holding Voltage at 45%). Please confirm the detail in page 4 Coil Voltage Reduction (Holding Voltage) after Relay Operation. * Some mounting direction is out of guarantee. Please confirm the detail in page 4 Mounting Direction.
Contacts
Item Resistive load Contact type Double Contact material Ag Alloy (Cd free) 100 A at 480 VAC Rated load 40 A at 800 VAC Rated carry current 100 A Max. switching voltage AC 800 V Max. switching current 100 A
