Datasheet LT8648S (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 42V, 15A Synchronous Step-Down Silent Switcher 2 |
| Pages / Page | 28 / 4 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| File Format / Size | PDF / 2.2 Mb |
| Document Language | English |

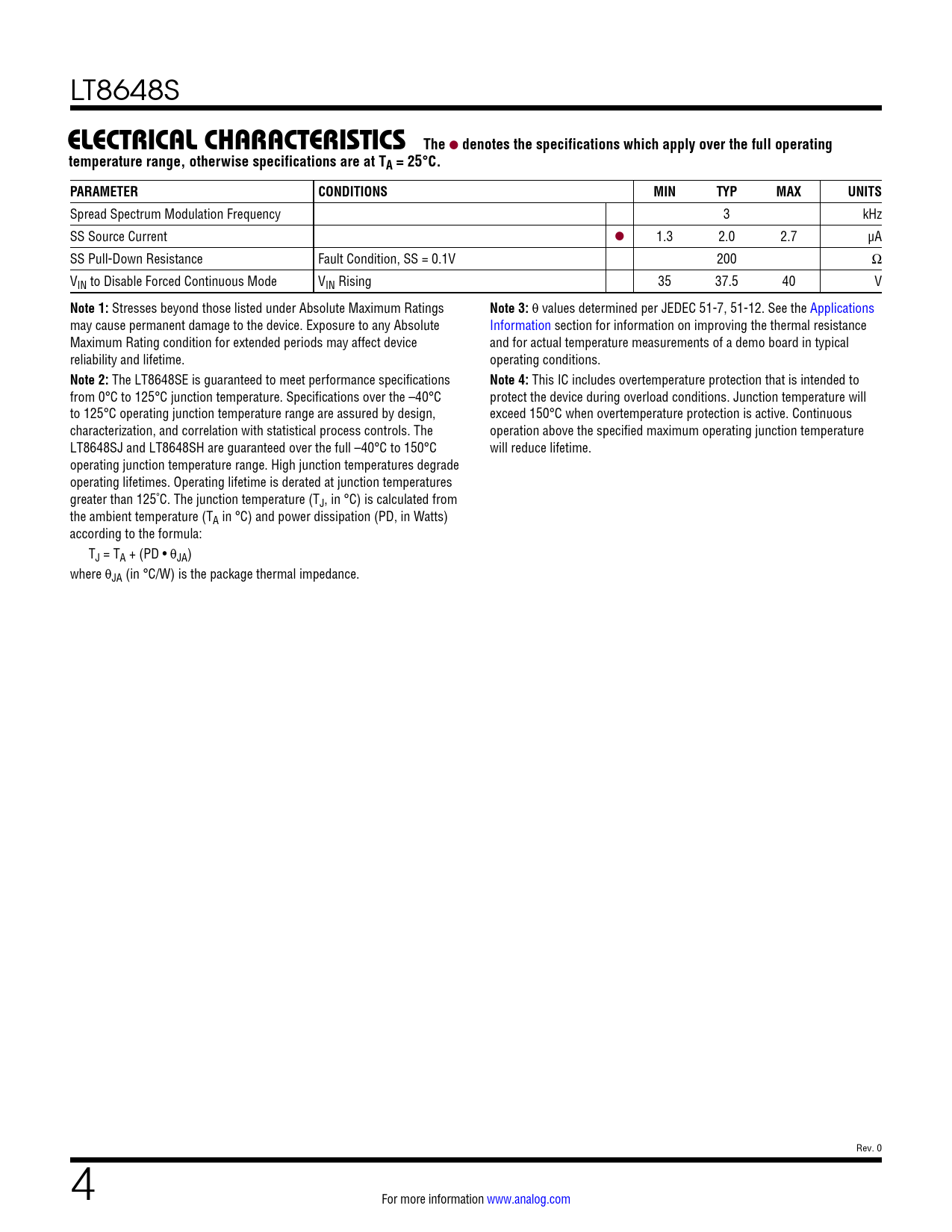

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
link to page 15 link to page 15 LT8648S
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Spread Spectrum Modulation Frequency 3 kHz SS Source Current l 1.3 2.0 2.7 µA SS Pull-Down Resistance Fault Condition, SS = 0.1V 200 Ω VIN to Disable Forced Continuous Mode VIN Rising 35 37.5 40 V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
values determined per JEDEC 51-7, 51-12. See the Applications may cause permanent damage to the device. Exposure to any Absolute Information section for information on improving the thermal resistance Maximum Rating condition for extended periods may affect device and for actual temperature measurements of a demo board in typical reliability and lifetime. operating conditions.
Note 2:
The LT8648SE is guaranteed to meet performance specifications
Note 4:
This IC includes overtemperature protection that is intended to from 0°C to 125°C junction temperature. Specifications over the –40°C protect the device during overload conditions. Junction temperature will to 125°C operating junction temperature range are assured by design, exceed 150°C when overtemperature protection is active. Continuous characterization, and correlation with statistical process controls. The operation above the specified maximum operating junction temperature LT8648SJ and LT8648SH are guaranteed over the full –40°C to 150°C will reduce lifetime. operating junction temperature range. High junction temperatures degrade operating lifetimes. Operating lifetime is derated at junction temperatures greater than 125˚C. The junction temperature (TJ, in °C) is calculated from the ambient temperature (TA in °C) and power dissipation (PD, in Watts) according to the formula: TJ = TA + (PD • JA) where JA (in °C/W) is the package thermal impedance. Rev. 0 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Applications Related Parts
