Nexperia. PESD2V8R1BSF. Ultra low capacitance bidirectional ESD protection diode. 10. Application information
Model Line for this Datasheet
Text Version of Document
Nexperia PESD2V8R1BSF Ultra low capacitance bidirectional ESD protection diode 10. Application information
The device is designed for the protection of one bidirectional data line from surge pulses and ESD damage. The device is suitable on lines where the signal polarities are both positive and negative with respect to ground. The device uses an advanced clamping structure showing a negative dynamic resistance. This snap-back behavior strongly reduces the clamping voltage to the system behind the ESD protection during an ESD event. Do not connect unlimited DC current sources to the data lines to avoid keeping the ESD protection device in snap-back state after exceeding breakdown voltage (due to an ESD pulse for instance). line to be protected ESD protection diode GND aaa-002737

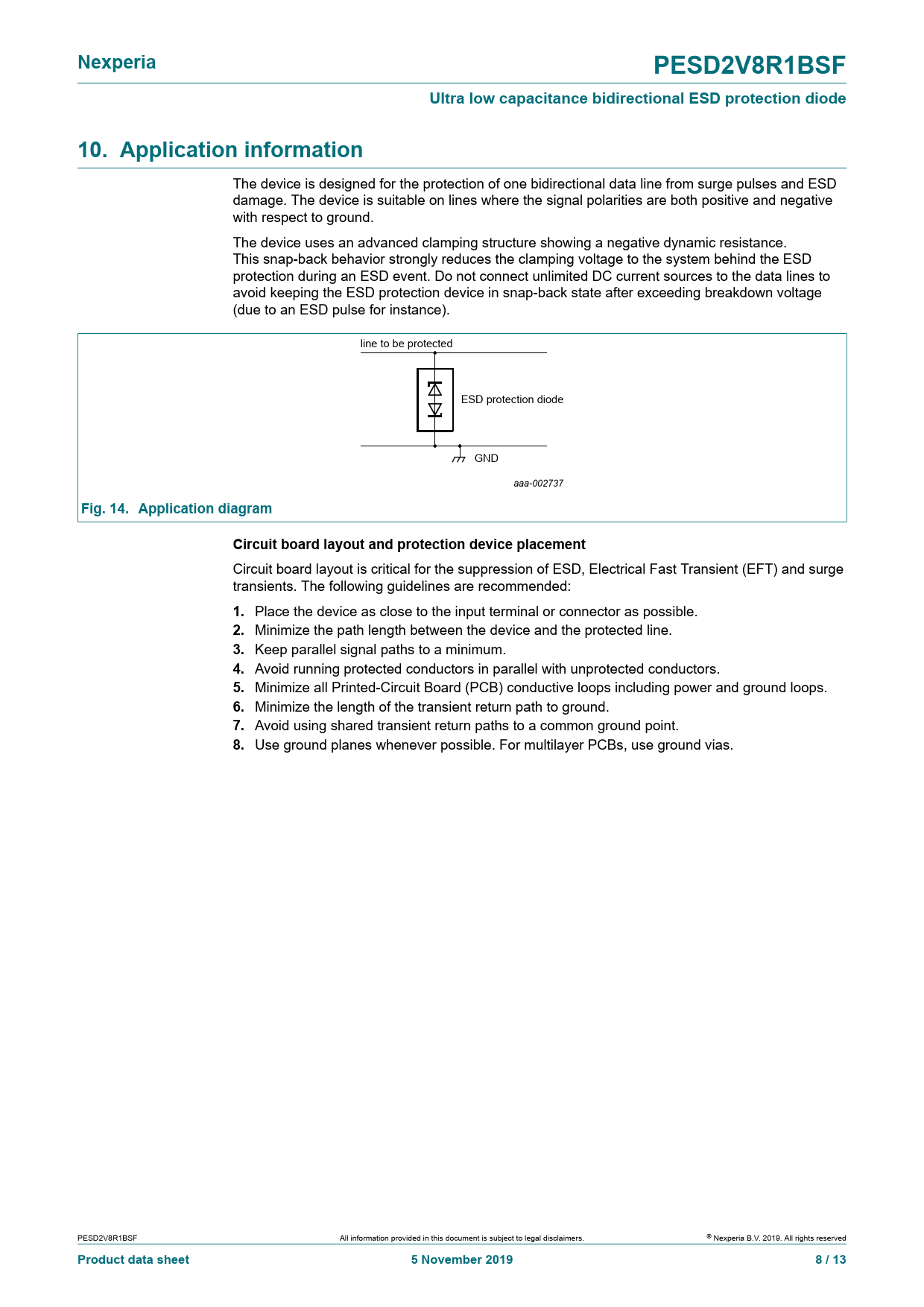

Fig. 14. Application diagram Circuit board layout and protection device placement
Circuit board layout is critical for the suppression of ESD, Electrical Fast Transient (EFT) and surge transients. The following guidelines are recommended:
1.
Place the device as close to the input terminal or connector as possible.
2.
Minimize the path length between the device and the protected line.
3.
Keep parallel signal paths to a minimum.
4.
Avoid running protected conductors in parallel with unprotected conductors.
5.
Minimize all Printed-Circuit Board (PCB) conductive loops including power and ground loops.
6.
Minimize the length of the transient return path to ground.
7.
Avoid using shared transient return paths to a common ground point.
8.
Use ground planes whenever possible. For multilayer PCBs, use ground vias. PESD2V8R1BSF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. All rights reserved
Product data sheet 5 November 2019 8 / 13
