Datasheet LTC6991 (Analog Devices) - 13
| Manufacturer | Analog Devices |
| Description | TimerBlox: Resettable, Low Frequency Oscillator |
| Pages / Page | 24 / 13 — OPERATION. Figure 7. Start-Up Timing Diagram (RST = 0, POL = 0). … |
| Revision | D |
| File Format / Size | PDF / 671 Kb |
| Document Language | English |

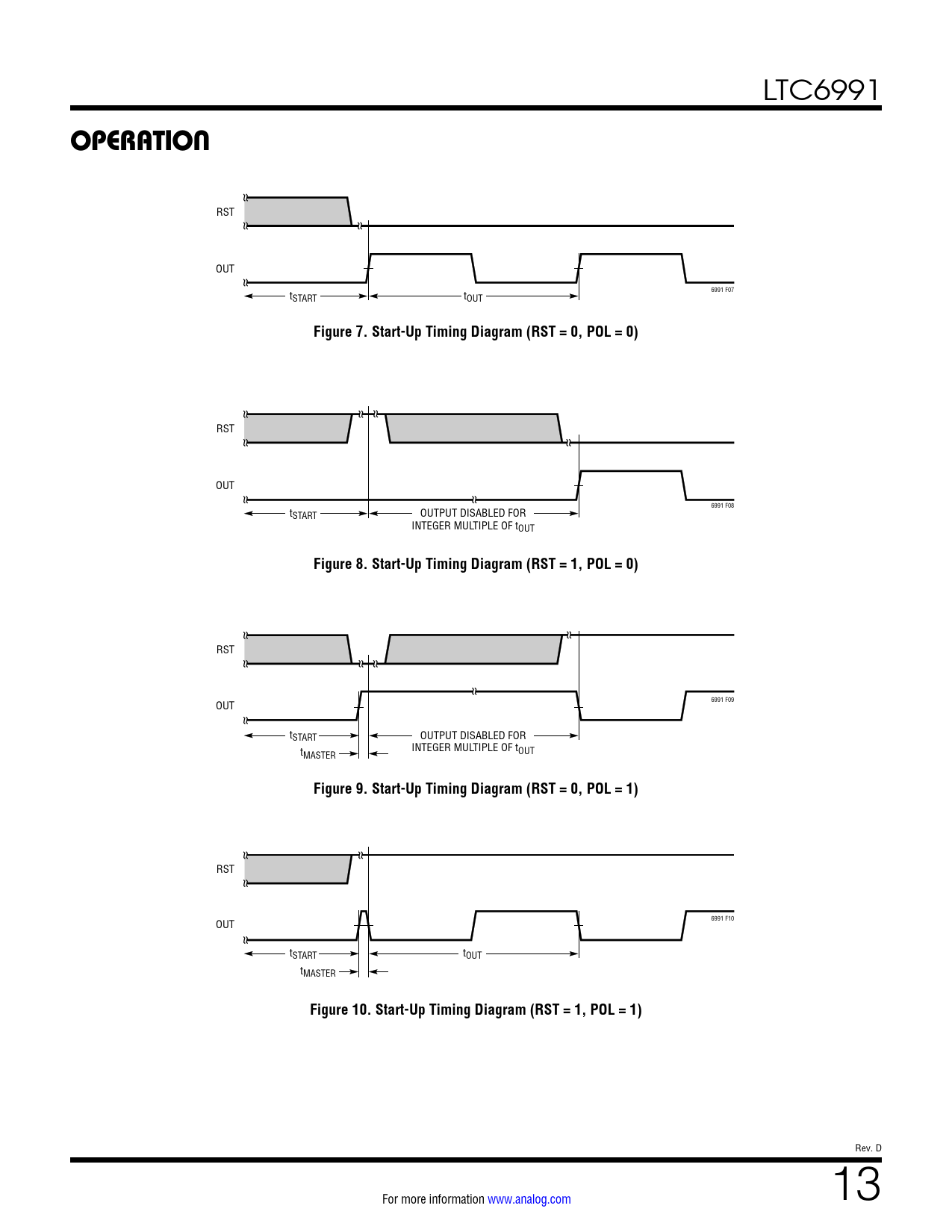

OPERATION. Figure 7. Start-Up Timing Diagram (RST = 0, POL = 0). Figure 8. Start-Up Timing Diagram (RST = 1, POL = 0)
Model Line for this Datasheet
- LTC6991CDCB#TRMPBF LTC6991CDCB#TRPBF LTC6991CS6#TRMPBF LTC6991CS6#TRPBF LTC6991HDCB#TRMPBF LTC6991HDCB#TRPBF LTC6991HS6#TRMPBF LTC6991HS6#TRPBF LTC6991HS6#WTRMPBF LTC6991HS6#WTRPBF LTC6991IDCB#TRMPBF LTC6991IDCB#TRPBF LTC6991IS6#TRMPBF LTC6991IS6#TRPBF LTC6991IS6#WTRMPBF LTC6991IS6#WTRPBF LTC6991MPS6#TRMPBF LTC6991MPS6#TRPBF
Text Version of Document
LTC6991
OPERATION
RST OUT t 6991 F07 START tOUT
Figure 7. Start-Up Timing Diagram (RST = 0, POL = 0)
RST OUT 6991 F08 tSTART OUTPUT DISABLED FOR INTEGER MULTIPLE OF tOUT
Figure 8. Start-Up Timing Diagram (RST = 1, POL = 0)
RST OUT 6991 F09 tSTART OUTPUT DISABLED FOR INTEGER MULTIPLE OF t t OUT MASTER
Figure 9. Start-Up Timing Diagram (RST = 0, POL = 1)
RST OUT 6991 F10 tSTART tOUT tMASTER
Figure 10. Start-Up Timing Diagram (RST = 1, POL = 1)
Rev. D For more information www.analog.com 13 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
