Datasheet LTC6991 (Analog Devices) - 21
| Manufacturer | Analog Devices |
| Description | TimerBlox: Resettable, Low Frequency Oscillator |
| Pages / Page | 24 / 21 — PACKAGE DESCRIPTION. DCB Package. 6-Lead Plastic DFN (2mm. 3mm) |
| Revision | D |
| File Format / Size | PDF / 671 Kb |
| Document Language | English |

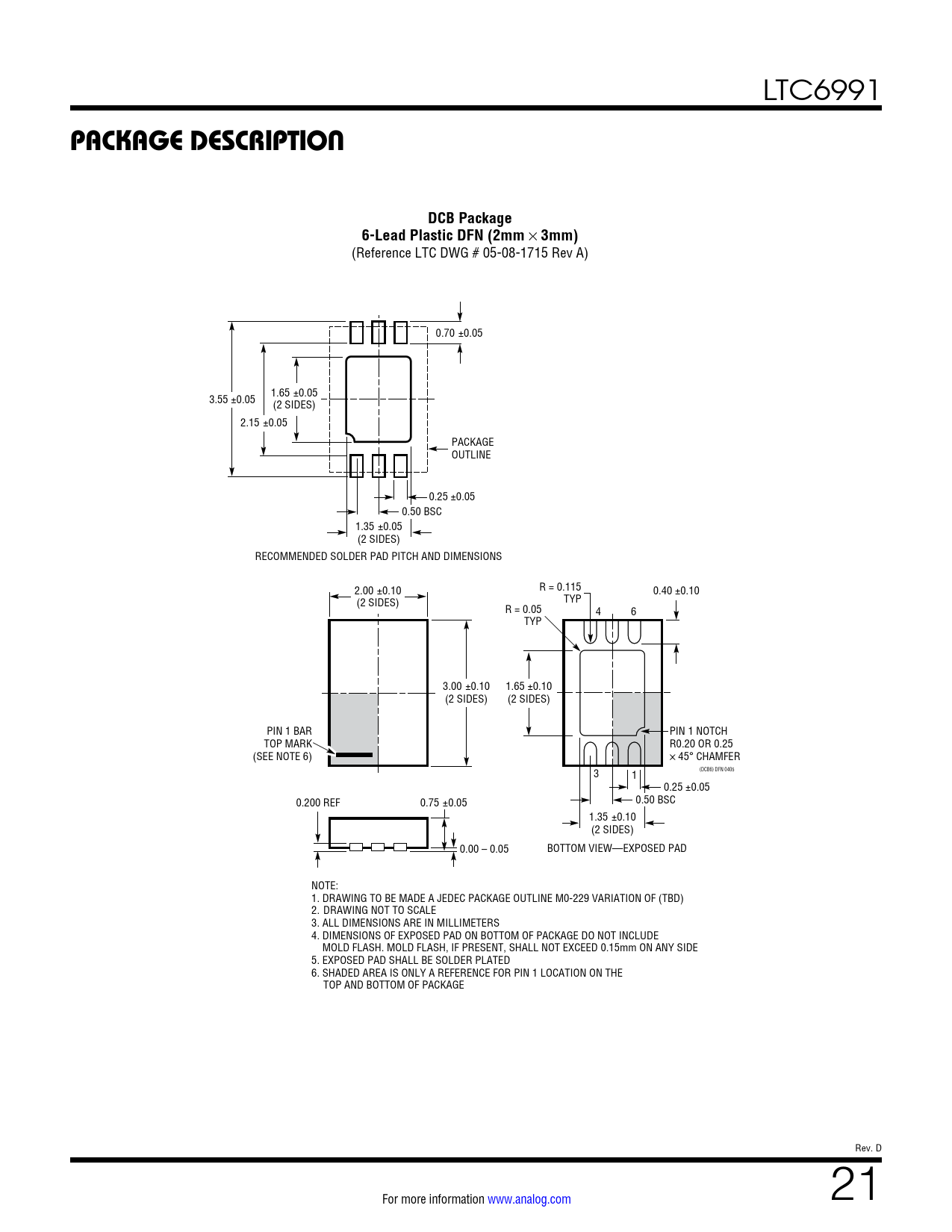

PACKAGE DESCRIPTION. DCB Package. 6-Lead Plastic DFN (2mm. 3mm)
Model Line for this Datasheet
- LTC6991CDCB#TRMPBF LTC6991CDCB#TRPBF LTC6991CS6#TRMPBF LTC6991CS6#TRPBF LTC6991HDCB#TRMPBF LTC6991HDCB#TRPBF LTC6991HS6#TRMPBF LTC6991HS6#TRPBF LTC6991HS6#WTRMPBF LTC6991HS6#WTRPBF LTC6991IDCB#TRMPBF LTC6991IDCB#TRPBF LTC6991IS6#TRMPBF LTC6991IS6#TRPBF LTC6991IS6#WTRMPBF LTC6991IS6#WTRPBF LTC6991MPS6#TRMPBF LTC6991MPS6#TRPBF
Text Version of Document
LTC6991
PACKAGE DESCRIPTION DCB Package 6-Lead Plastic DFN (2mm
×
3mm)
(Reference LTC DWG # 05-08-1715 Rev A) 0.70 ±0.05 1.65 ±0.05 3.55 ±0.05 (2 SIDES) 2.15 ±0.05 PACKAGE OUTLINE 0.25 ±0.05 0.50 BSC 1.35 ±0.05 (2 SIDES) RECOMMENDED SOLDER PAD PITCH AND DIMENSIONS 2.00 ±0.10 R = 0.115 0.40 ±0.10 (2 SIDES) TYP R = 0.05 4 6 TYP 3.00 ±0.10 1.65 ±0.10 (2 SIDES) (2 SIDES) PIN 1 BAR PIN 1 NOTCH TOP MARK R0.20 OR 0.25 (SEE NOTE 6) × 45° CHAMFER 3 1 (DCB6) DFN 0405 0.25 ±0.05 0.200 REF 0.75 ±0.05 0.50 BSC 1.35 ±0.10 (2 SIDES) 0.00 – 0.05 BOTTOM VIEW—EXPOSED PAD NOTE: 1. DRAWING TO BE MADE A JEDEC PACKAGE OUTLINE M0-229 VARIATION OF (TBD) 2. DRAWING NOT TO SCALE 3. ALL DIMENSIONS ARE IN MILLIMETERS 4. DIMENSIONS OF EXPOSED PAD ON BOTTOM OF PACKAGE DO NOT INCLUDE MOLD FLASH. MOLD FLASH, IF PRESENT, SHALL NOT EXCEED 0.15mm ON ANY SIDE 5. EXPOSED PAD SHALL BE SOLDER PLATED 6. SHADED AREA IS ONLY A REFERENCE FOR PIN 1 LOCATION ON THE TOP AND BOTTOM OF PACKAGE Rev. D For more information www.analog.com 21 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
