MAX30102 High-Sensitivity Pulse Oximeter and Heart-Rate Sensor for Wearable Health

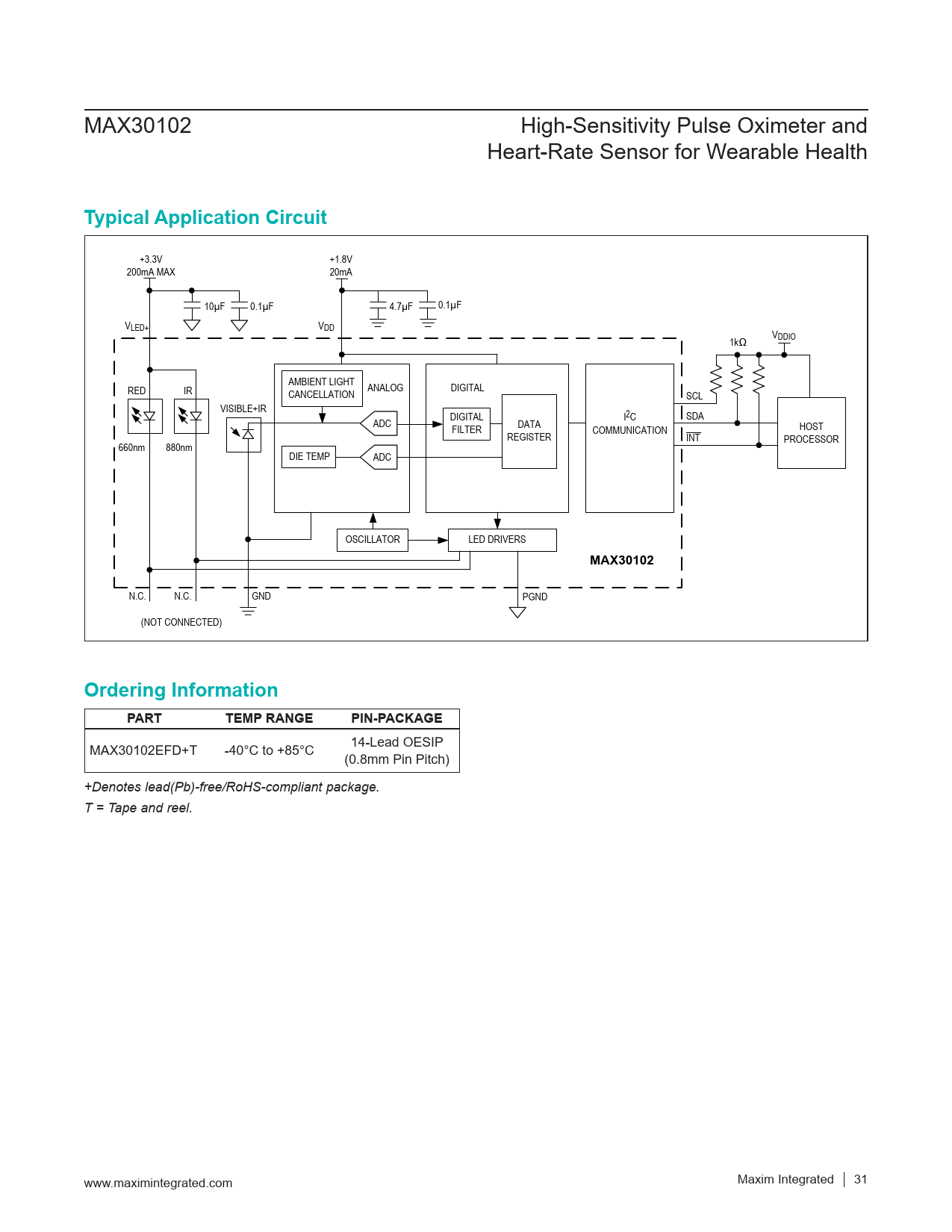

Typical Application Circuit
+3.3V +1.8V 200mA MAX 20mA 10µF 0.1µF 4.7µF 0.1µF VLED+ VDD V 1kΩ DDIO AMBIENT LIGHT RED IR CANCELLATION ANALOG DIGITAL SCL VISIBLE+IR SDA ADC DIGITAL I2C FILTER DATA HOST REGISTER COMMUNICATION INT PROCESSOR 660nm 880nm DIE TEMP ADC OSCILLATOR LED DRIVERS
MAX30102
N.C. N.C. GND PGND (NOT CONNECTED)
Ordering Information PART TEMP RANGE PIN-PACKAGE
MAX30102EFD+T -40°C to +85°C 14-Lead OESIP (0.8mm Pin Pitch) +Denotes lead(Pb)-free/RoHS-compliant package. T = Tape and reel. www.maximintegrated.com Maxim Integrated │ 31
