Datasheet LT3092 (Analog Devices) - 17
| Manufacturer | Analog Devices |
| Description | 200mA 2-Terminal Programmable Current Source |
| Pages / Page | 24 / 17 — Typical applicaTions. Remote Temperature Sensor. DAC Controlled Current … |
| File Format / Size | PDF / 460 Kb |
| Document Language | English |
Typical applicaTions. Remote Temperature Sensor. DAC Controlled Current Source. Active Load
Model Line for this Datasheet
Text Version of Document
LT3092

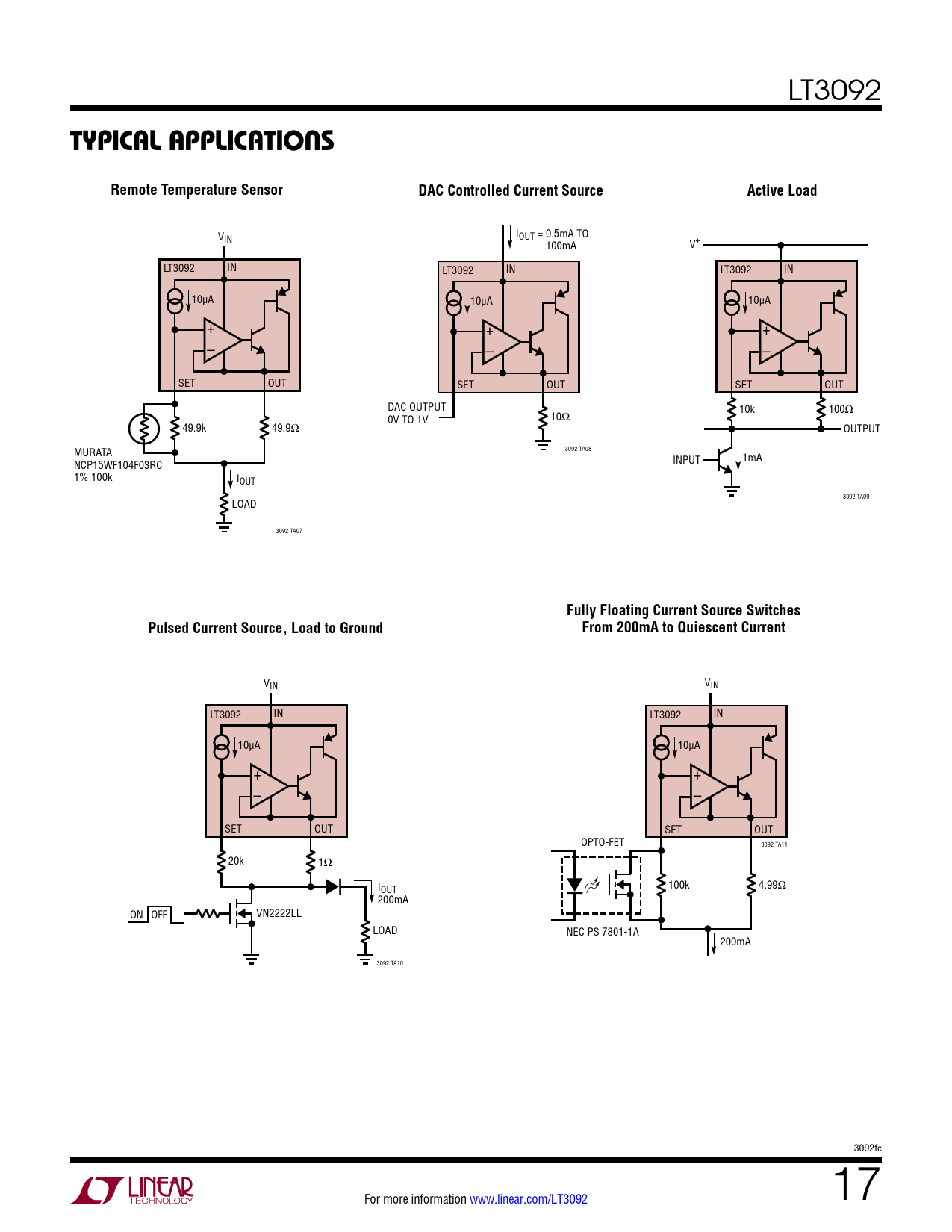

Typical applicaTions Remote Temperature Sensor DAC Controlled Current Source Active Load
V I IN OUT = 0.5mA TO 100mA V+ LT3092 IN LT3092 IN LT3092 IN 10µA 10µA 10µA + + + – – – SET OUT SET OUT SET OUT DAC OUTPUT 10k 100Ω 0V TO 1V 10Ω 49.9k 49.9Ω OUTPUT MURATA 3092 TA08 INPUT 1mA NCP15WF104F03RC 1% 100k IOUT LOAD 3092 TA09 3092 TA07
Fully Floating Current Source Switches Pulsed Current Source, Load to Ground From 200mA to Quiescent Current
V V IN IN LT3092 IN LT3092 IN 10µA 10µA + + – – SET OUT SET OUT OPTO-FET 3092 TA11 20k 1Ω I 100k 4.99Ω OUT 200mA ON OFF VN2222LL LOAD NEC PS 7801-1A 200mA 3092 TA10 3092fc For more information www.linear.com/LT3092 17 Document Outline Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Related Parts
