Typical applicaTions. Pulsed Current Source, Load to VIN. 2-Terminal AC Current Limiter. Voltage Clamp
Model Line for this Datasheet
Text Version of Document
LT3092

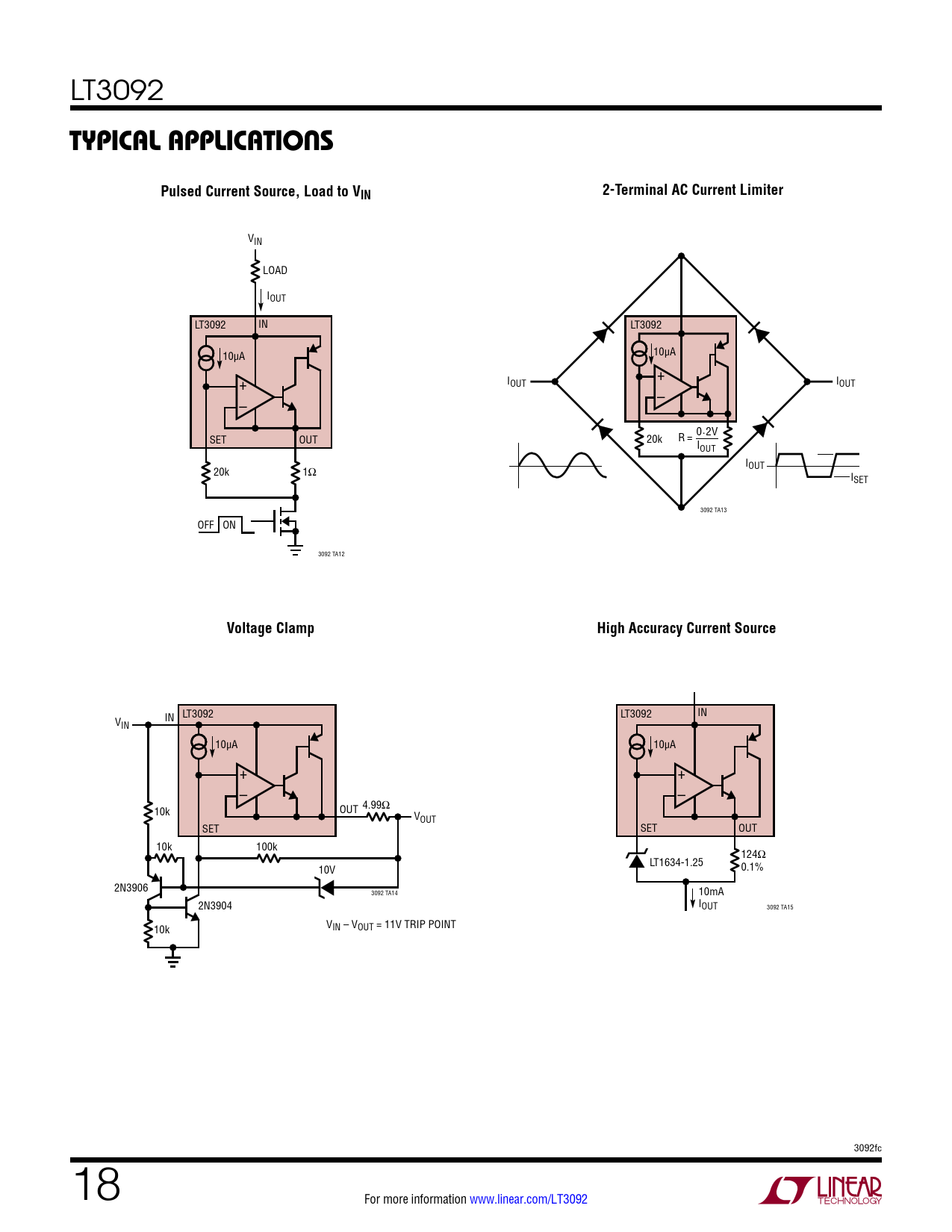

Typical applicaTions Pulsed Current Source, Load to VIN 2-Terminal AC Current Limiter
VIN LOAD IOUT LT3092 IN LT3092 10µA 10µA + + IOUT IOUT – – . SET OUT 20k R V = 0 2 IOUT I 20k 1Ω OUT ISET 3092 TA13 OFF ON 3092 TA12
Voltage Clamp High Accuracy Current Source
IN LT3092 LT3092 IN VIN 10µA 10µA + + – – 10k OUT 4.99Ω VOUT SET SET OUT 10k 100k 124Ω LT1634-1.25 10V 0.1% 2N3906 3092 TA14 10mA 2N3904 IOUT 3092 TA15 10k VIN – VOUT = 11V TRIP POINT 3092fc 18 For more information www.linear.com/LT3092 Document Outline Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Related Parts
