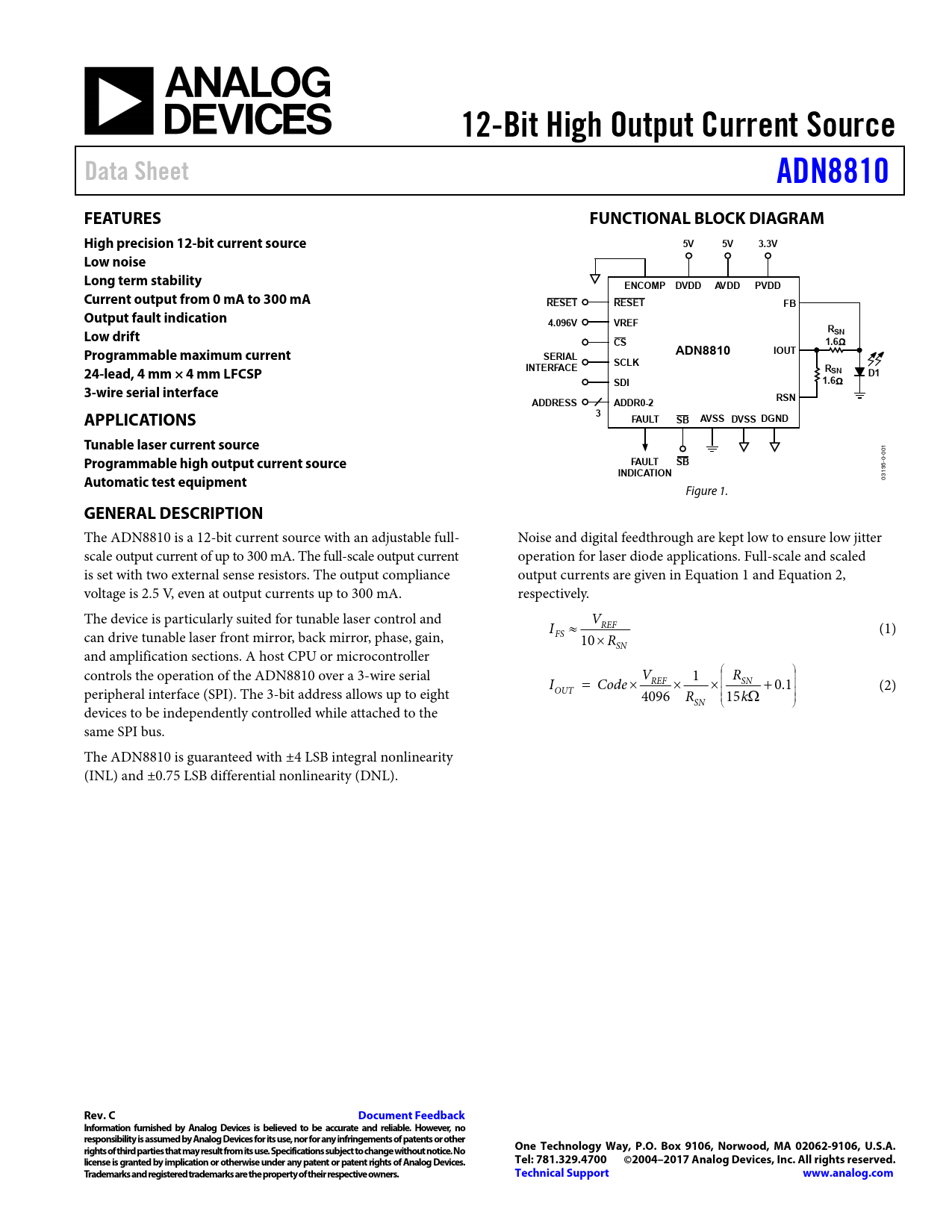

12-Bit High Output Current Source. Data Sheet. ADN8810. FEATURES. FUNCTIONAL BLOCK DIAGRAM. High precision 12-bit current source

Datasheet ADN8810 Analog Devices, Revision: C

Model Line for this Datasheet

Text Version of Document

12-Bit High Output Current Source Data Sheet ADN8810 FEATURES FUNCTIONAL BLOCK DIAGRAM High precision 12-bit current source 5V 5V 3.3V Low noise Long term stability ENCOMP DVDD AVDD PVDD Current output from 0 mA to 300 mA RESET RESET FB Output fault indication 4.096V VREF R Low drift SN CS 1.6 Programmable maximum current ADN8810 IOUT SERIAL INTERFACE SCLK R 24-lead, 4 mm × 4 mm LFCSP SN D1 SDI 1.6 3-wire serial interface ADDRESS ADDR0-2 RSN 3 APPLICATIONS FAULT SB AVSS DVSS DGND Tunable laser current source
1 00
Programmable high output current source
0-
FAULT SB
95-
INDICATION Automatic test equipment
031 Figure 1.
GENERAL DESCRIPTION
The ADN8810 is a 12-bit current source with an adjustable full- Noise and digital feedthrough are kept low to ensure low jitter scale output current of up to 300 mA. The full-scale output current operation for laser diode applications. Full-scale and scaled is set with two external sense resistors. The output compliance output currents are given in Equation 1 and Equation 2, voltage is 2.5 V, even at output currents up to 300 mA. respectively. The device is particularly suited for tunable laser control and VREF I  (1) can drive tunable laser front mirror, back mirror, phase, gain, FS 10  RSN and amplification sections. A host CPU or microcontroller   controls the operation of the ADN8810 over a 3-wire serial   V 1 R REF  SN  I  Code     0.1 (2) peripheral interface (SPI). The 3-bit address allows up to eight OUT   4096 R  15 k  SN   devices to be independently controlled while attached to the same SPI bus. The ADN8810 is guaranteed with ±4 LSB integral nonlinearity (INL) and ±0.75 LSB differential nonlinearity (DNL).
