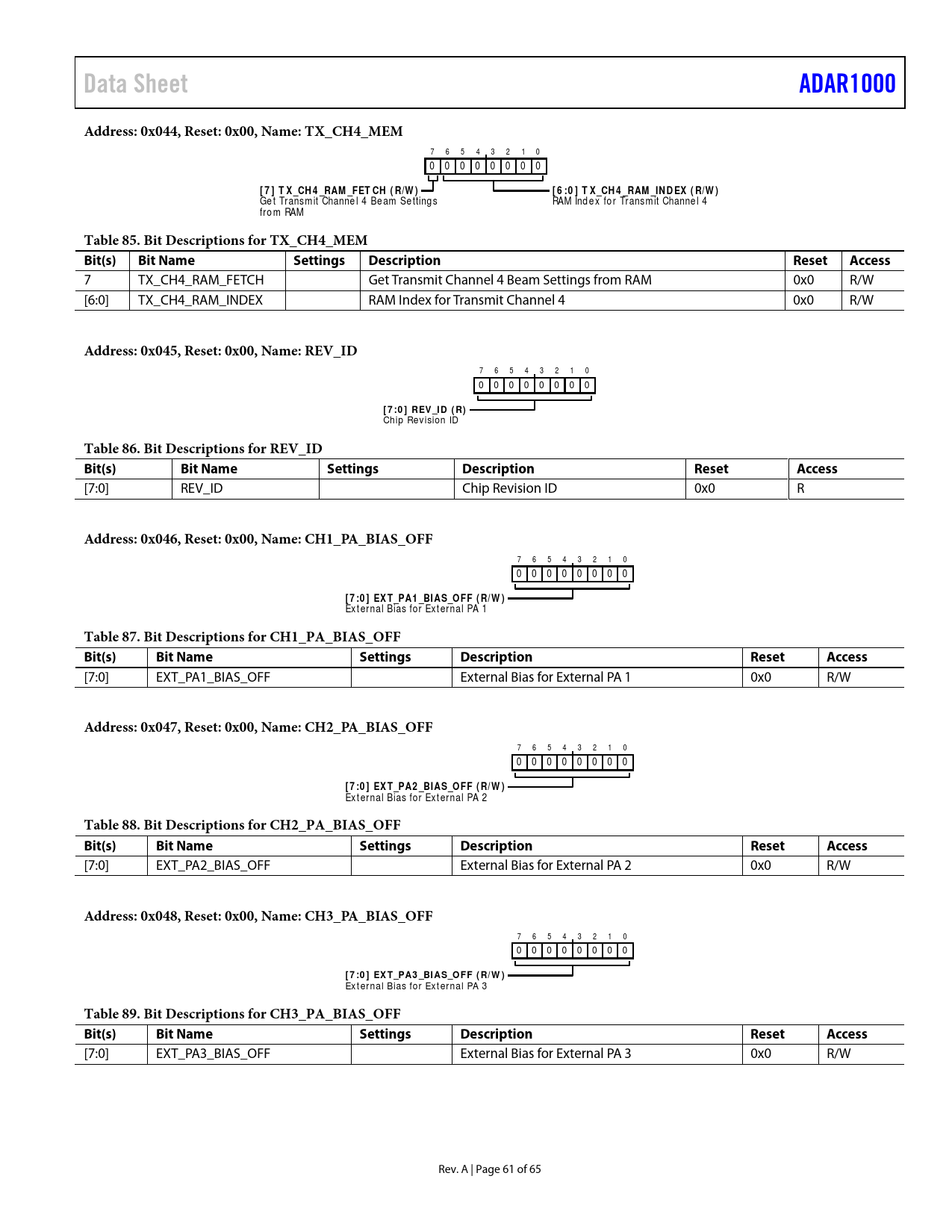

Data Sheet. ADAR1000. Address: 0x044, Reset: 0x00, Name: TX_CH4_MEM. [ 7 ] T X _CH 4 _RAM _FET CH ( R/W )
Model Line for this Datasheet
Text Version of Document
Data Sheet ADAR1000 Address: 0x044, Reset: 0x00, Name: TX_CH4_MEM
7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0
[ 7 ] T X _CH 4 _RAM _FET CH ( R/W ) [ 6 :0 ] T X _CH 4 _RAM _IN D EX ( R/W )
Ge t Trans m it Channe l 4 Be am Se tting s RAM Ind e x fo r Trans m it Channe l 4 fro m RAM
Table 85. Bit Descriptions for TX_CH4_MEM Bit(s) Bit Name Settings Description Reset Access
7 TX_CH4_RAM_FETCH Get Transmit Channel 4 Beam Settings from RAM 0x0 R/W [6:0] TX_CH4_RAM_INDEX RAM Index for Transmit Channel 4 0x0 R/W
Address: 0x045, Reset: 0x00, Name: REV_ID
7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0
[ 7 :0 ] REV _I D ( R)
Chip Rev ision ID
Table 86. Bit Descriptions for REV_ID Bit(s) Bit Name Settings Description Reset Access
[7:0] REV_ID Chip Revision ID 0x0 R
Address: 0x046, Reset: 0x00, Name: CH1_PA_BIAS_OFF
7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0
[ 7 :0 ] EX T_PA1 _BI AS_OFF ( R/W )
Ex t ernal Bias for Ex t ernal PA 1
Table 87. Bit Descriptions for CH1_PA_BIAS_OFF Bit(s) Bit Name Settings Description Reset Access
[7:0] EXT_PA1_BIAS_OFF External Bias for External PA 1 0x0 R/W
Address: 0x047, Reset: 0x00, Name: CH2_PA_BIAS_OFF
7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0
[ 7 :0 ] EX T_PA2 _BI AS_OFF ( R/W )
Ex t ernal Bias for Ex t ernal PA 2
Table 88. Bit Descriptions for CH2_PA_BIAS_OFF Bit(s) Bit Name Settings Description Reset Access
[7:0] EXT_PA2_BIAS_OFF External Bias for External PA 2 0x0 R/W
Address: 0x048, Reset: 0x00, Name: CH3_PA_BIAS_OFF
7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0
[ 7 :0 ] EX T_PA3 _BI AS_OFF ( R/W )
Ex t ernal Bias for Ex t ernal PA 3
Table 89. Bit Descriptions for CH3_PA_BIAS_OFF Bit(s) Bit Name Settings Description Reset Access
