Datasheet ADA4691-2, ADA4691-4, ADA4692-2, ADA4692-4 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Low Power, 3.6 MHz, Low Noise, Rail-to-Rail Output, Operational Amplifiers |
| Pages / Page | 19 / 5 — Data Sheet. ADA4691-2/ADA4691-4/ADA4692-2/ADA4692-4. Parameter. Symbol. … |
| Revision | E |
| File Format / Size | PDF / 805 Kb |
| Document Language | English |

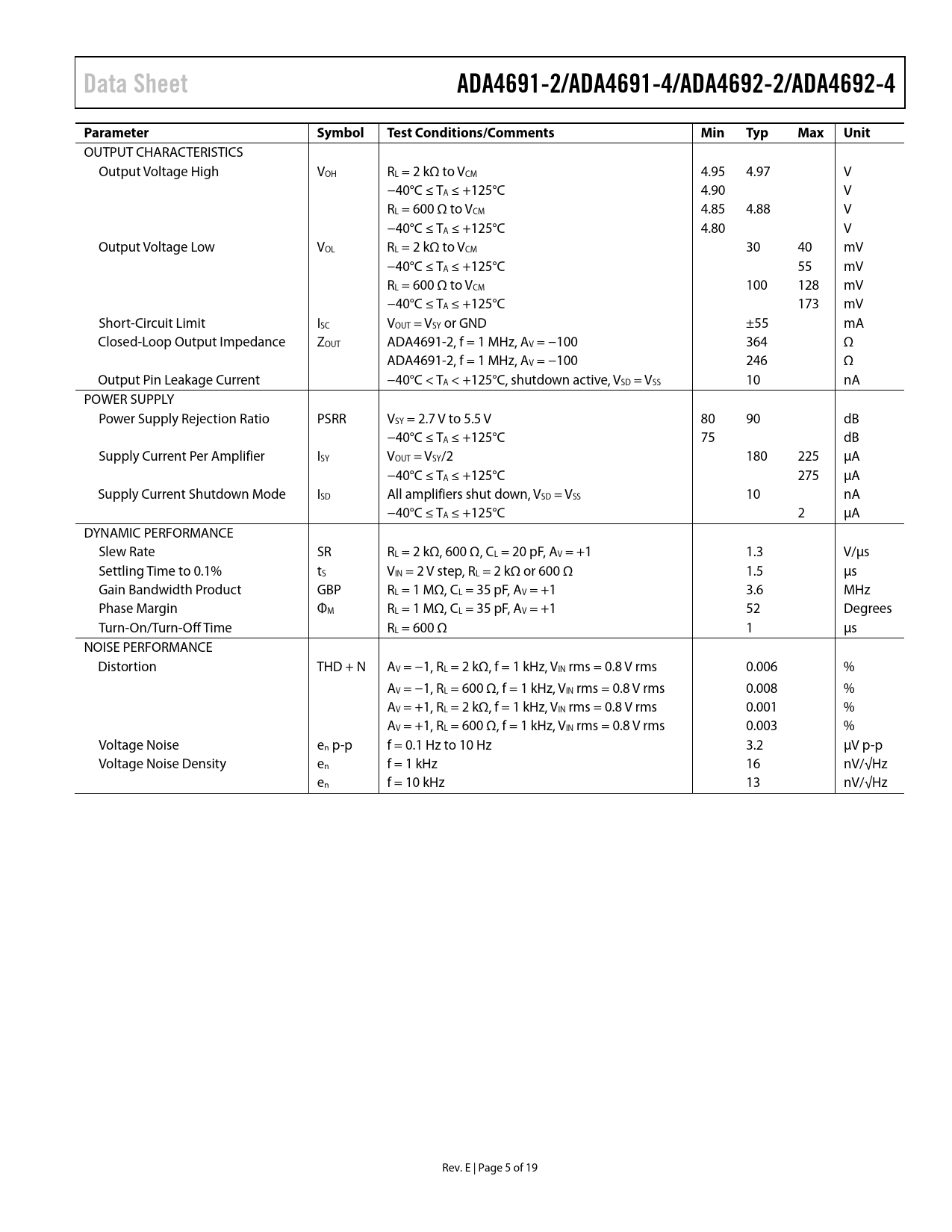

Data Sheet. ADA4691-2/ADA4691-4/ADA4692-2/ADA4692-4. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADA4691-2/ADA4691-4/ADA4692-2/ADA4692-4 Parameter Symbol Test Conditions/Comments Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 2 kΩ to VCM 4.95 4.97 V −40°C ≤ TA ≤ +125°C 4.90 V RL = 600 Ω to VCM 4.85 4.88 V −40°C ≤ TA ≤ +125°C 4.80 V Output Voltage Low VOL RL = 2 kΩ to VCM 30 40 mV −40°C ≤ TA ≤ +125°C 55 mV RL = 600 Ω to VCM 100 128 mV −40°C ≤ TA ≤ +125°C 173 mV Short-Circuit Limit ISC VOUT = VSY or GND ±55 mA Closed-Loop Output Impedance ZOUT ADA4691-2, f = 1 MHz, AV = −100 364 Ω ADA4691-2, f = 1 MHz, AV = −100 246 Ω Output Pin Leakage Current −40°C < TA < +125°C, shutdown active, VSD = VSS 10 nA POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = 2.7 V to 5.5 V 80 90 dB −40°C ≤ TA ≤ +125°C 75 dB Supply Current Per Amplifier ISY VOUT = VSY/2 180 225 µA −40°C ≤ TA ≤ +125°C 275 µA Supply Current Shutdown Mode ISD All amplifiers shut down, VSD = VSS 10 nA −40°C ≤ TA ≤ +125°C 2 µA DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ, 600 Ω, CL = 20 pF, AV = +1 1.3 V/µs Settling Time to 0.1% tS VIN = 2 V step, RL = 2 kΩ or 600 Ω 1.5 µs Gain Bandwidth Product GBP RL = 1 MΩ, CL = 35 pF, AV = +1 3.6 MHz Phase Margin ΦM RL = 1 MΩ, CL = 35 pF, AV = +1 52 Degrees Turn-On/Turn-Off Time RL = 600 Ω 1 µs NOISE PERFORMANCE Distortion THD + N AV = −1, RL = 2 kΩ, f = 1 kHz, VIN rms = 0.8 V rms 0.006 % AV = −1, RL = 600 Ω, f = 1 kHz, VIN rms = 0.8 V rms 0.008 % AV = +1, RL = 2 kΩ, f = 1 kHz, VIN rms = 0.8 V rms 0.001 % AV = +1, RL = 600 Ω, f = 1 kHz, VIN rms = 0.8 V rms 0.003 % Voltage Noise en p-p f = 0.1 Hz to 10 Hz 3.2 µV p-p Voltage Noise Density en f = 1 kHz 16 nV/√Hz en f = 10 kHz 13 nV/√Hz Rev. E | Page 5 of 19 Document Outline Features Applications General Description Revision History Specifications Electrical Characteristics—2.7 V Operation Electrical Characteristics—5 V Operation Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations Typical Performance Characteristics Shutdown Operation Input Pin Characteristics Input Threshold Outline Dimensions Ordering Guide
