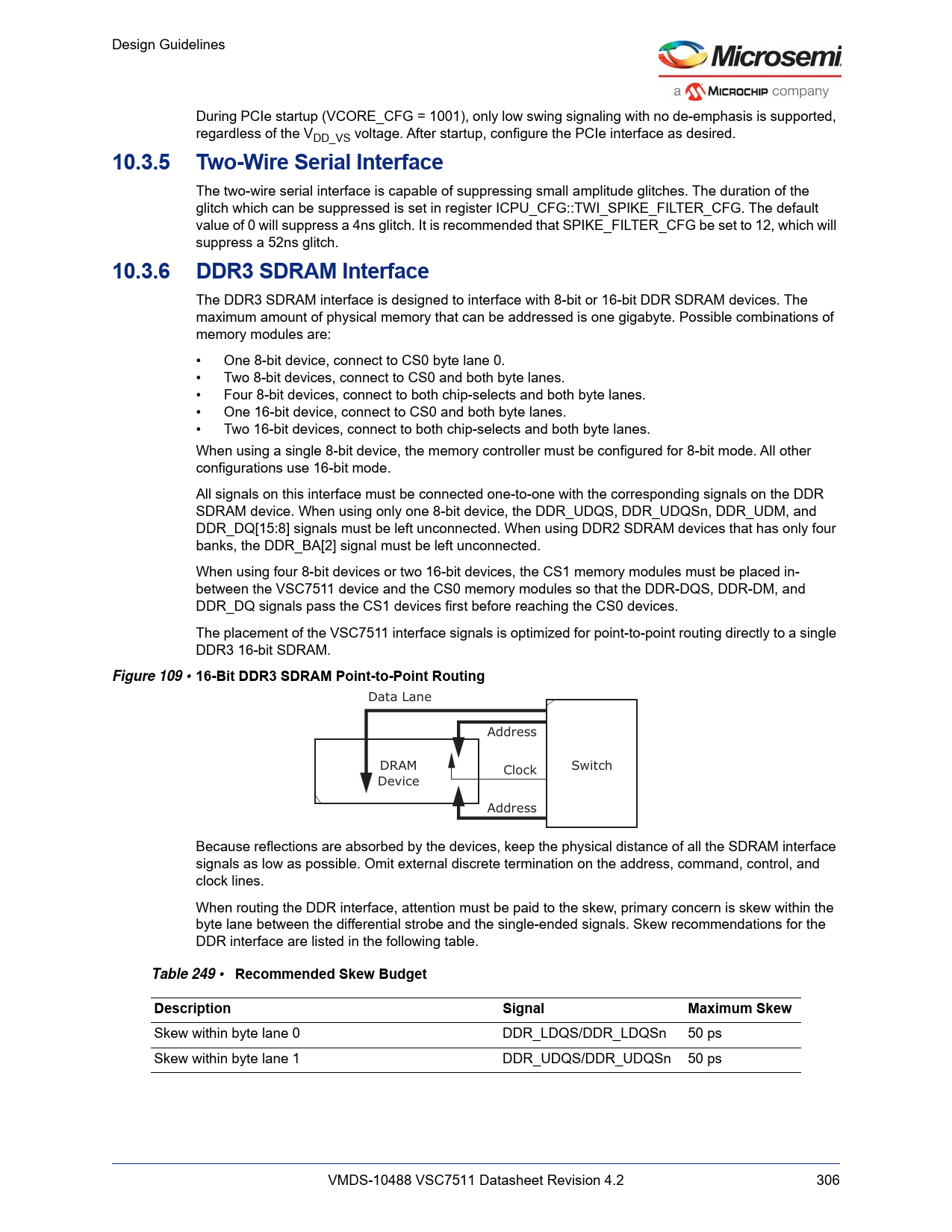

10.3.5. Two-Wire Serial Interface. 10.3.6. DDR3 SDRAM Interface. Figure 109 •. 16-Bit DDR3 SDRAM Point-to-Point Routing
Model Line for this Datasheet
Text Version of Document
Design Guidelines During PCIe startup (VCORE_CFG = 1001), only low swing signaling with no de-emphasis is supported, regardless of the VDD_VS voltage. After startup, configure the PCIe interface as desired.
10.3.5 Two-Wire Serial Interface
The two-wire serial interface is capable of suppressing small amplitude glitches. The duration of the glitch which can be suppressed is set in register ICPU_CFG::TWI_SPIKE_FILTER_CFG. The default value of 0 will suppress a 4ns glitch. It is recommended that SPIKE_FILTER_CFG be set to 12, which will suppress a 52ns glitch.
10.3.6 DDR3 SDRAM Interface
The DDR3 SDRAM interface is designed to interface with 8-bit or 16-bit DDR SDRAM devices. The maximum amount of physical memory that can be addressed is one gigabyte. Possible combinations of memory modules are: • One 8-bit device, connect to CS0 byte lane 0. • Two 8-bit devices, connect to CS0 and both byte lanes. • Four 8-bit devices, connect to both chip-selects and both byte lanes. • One 16-bit device, connect to CS0 and both byte lanes. • Two 16-bit devices, connect to both chip-selects and both byte lanes. When using a single 8-bit device, the memory controller must be configured for 8-bit mode. All other configurations use 16-bit mode. All signals on this interface must be connected one-to-one with the corresponding signals on the DDR SDRAM device. When using only one 8-bit device, the DDR_UDQS, DDR_UDQSn, DDR_UDM, and DDR_DQ[15:8] signals must be left unconnected. When using DDR2 SDRAM devices that has only four banks, the DDR_BA[2] signal must be left unconnected. When using four 8-bit devices or two 16-bit devices, the CS1 memory modules must be placed in- between the VSC7511 device and the CS0 memory modules so that the DDR-DQS, DDR-DM, and DDR_DQ signals pass the CS1 devices first before reaching the CS0 devices. The placement of the VSC7511 interface signals is optimized for point-to-point routing directly to a single DDR3 16-bit SDRAM.
Figure 109 • 16-Bit DDR3 SDRAM Point-to-Point Routing
Data Lane Address DRAM Switch Clock Device Address Because reflections are absorbed by the devices, keep the physical distance of all the SDRAM interface signals as low as possible. Omit external discrete termination on the address, command, control, and clock lines. When routing the DDR interface, attention must be paid to the skew, primary concern is skew within the byte lane between the differential strobe and the single-ended signals. Skew recommendations for the DDR interface are listed in the following table.
Table 249 • Recommended Skew Budget Description Signal Maximum Skew
