Datasheet LTM8078 (Analog Devices) - 24
| Manufacturer | Analog Devices |
| Description | Dual 1.4A, Single 2.8A Step-Down Silent Switcher μModule Regulator |
| Pages / Page | 26 / 24 — PACKAGE DESCRIPTION. BGA Package. 49-Lead (6.25mm. 6.25mm. 2.22mm). … |
| Revision | A |
| File Format / Size | PDF / 3.5 Mb |
| Document Language | English |

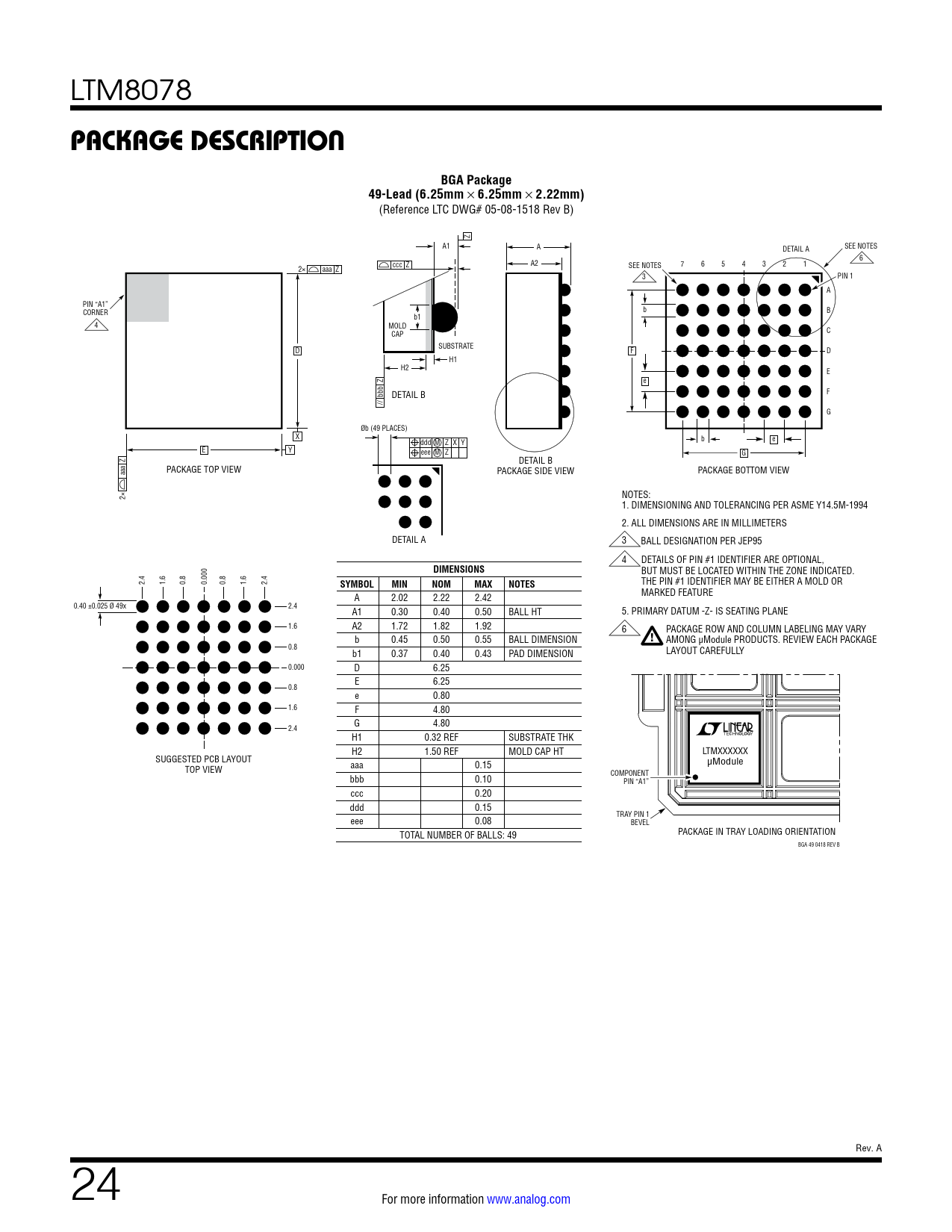

PACKAGE DESCRIPTION. BGA Package. 49-Lead (6.25mm. 6.25mm. 2.22mm). DIMENSIONS. SYMBOL. NOM. MAX. NOTES. MIN
Model Line for this Datasheet
Text Version of Document
LTM8078
PACKAGE DESCRIPTION BGA Package 49-Lead (6.25mm
×
6.25mm
×
2.22mm)
(Reference LTC DWG# 05-08-1518 Rev B) Z A1 A DETAIL A SEE NOTES 6 ccc Z A2 SEE NOTES 7 6 5 4 3 2 1 2× aaa Z 3 PIN 1 A PIN “A1” CORNER b B b1 4 MOLD C CAP D SUBSTRATE F D H1 H2 E e F DETAIL B // bbb Z G Øb (49 PLACES) X b e ddd M Z X Y E Y eee M Z G DETAIL B PACKAGE TOP VIEW aaa Z PACKAGE SIDE VIEW PACKAGE BOTTOM VIEW 2× NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M-1994 2. ALL DIMENSIONS ARE IN MILLIMETERS DETAIL A BALL DESIGNA 3 TION PER JEP95 4 DETAILS OF PIN #1 IDENTIFIER ARE OPTIONAL,
