Datasheet ADP170, ADP171 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 300 mA, Low Quiescent Current, adjustable output, CMOS Linear Regulator |
| Pages / Page | 20 / 6 — ADP170/ADP171. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. … |
| Revision | C |
| File Format / Size | PDF / 580 Kb |
| Document Language | English |

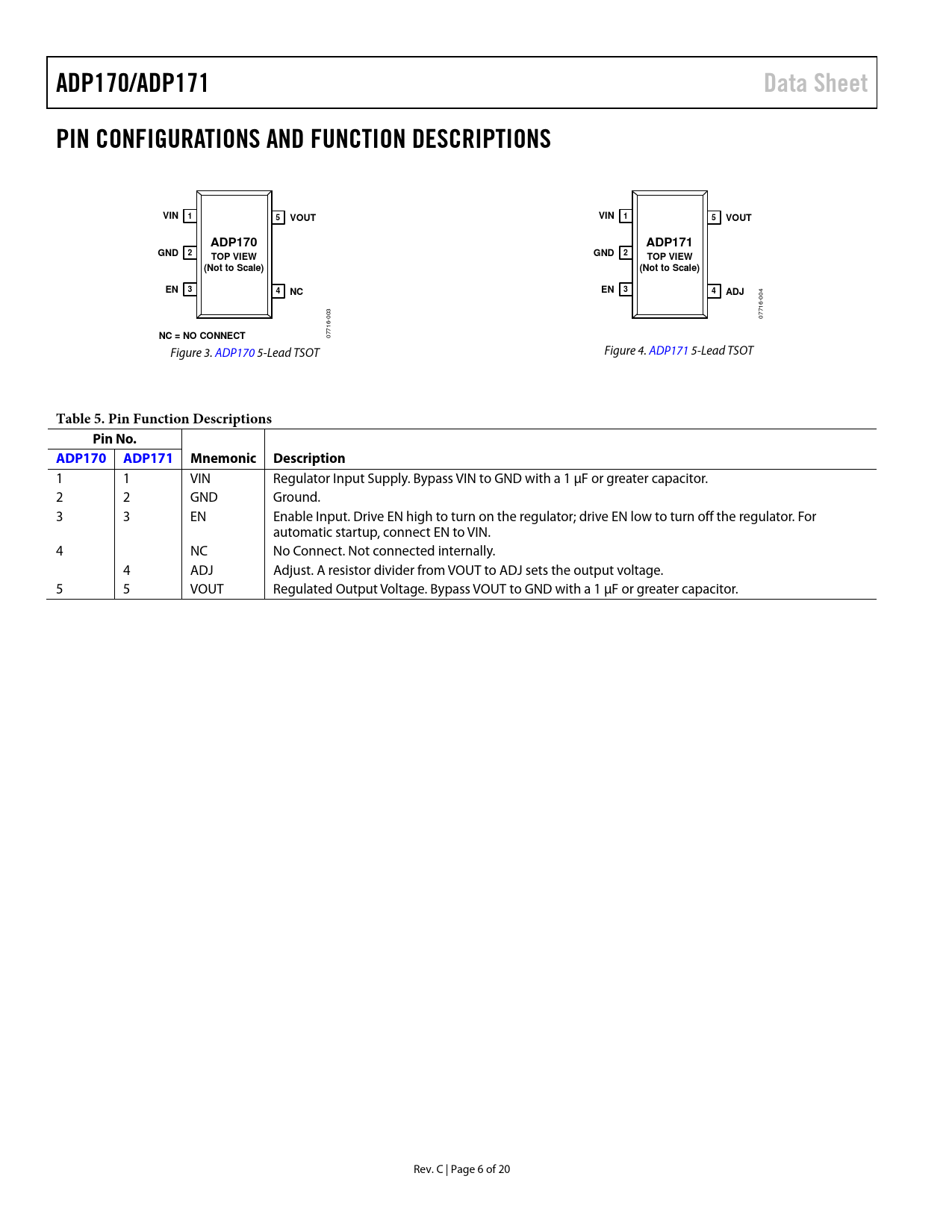

ADP170/ADP171. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. VIN. VOUT. ADP170. ADP171. GND. TOP VIEW. (Not to Scale). ADJ
Model Line for this Datasheet
Text Version of Document
ADP170/ADP171 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS VIN 1 5 VOUT VIN 1 5 VOUT ADP170 ADP171 GND 2 TOP VIEW GND 2 TOP VIEW (Not to Scale) (Not to Scale) EN 3 4 NC EN 3 4 ADJ
04 0 6- 71 03 0 07 6- 71
NC = NO CONNECT
07 Figure 3. ADP170 5-Lead TSOT Figure 4. ADP171 5-Lead TSOT
Table 5. Pin Function Descriptions Pin No. ADP170 ADP171 Mnemonic Description
1 1 VIN Regulator Input Supply. Bypass VIN to GND with a 1 μF or greater capacitor. 2 2 GND Ground. 3 3 EN Enable Input. Drive EN high to turn on the regulator; drive EN low to turn off the regulator. For automatic startup, connect EN to VIN. 4 NC No Connect. Not connected internally. 4 ADJ Adjust. A resistor divider from VOUT to ADJ sets the output voltage. 5 5 VOUT Regulated Output Voltage. Bypass VOUT to GND with a 1 μF or greater capacitor. Rev. C | Page 6 of 20 Document Outline Features Applications Typical Application Circuits General Description Table of Contents Revision History Specifications Input and Output Capacitor, Recommended Specifications Absolute Maximum Ratings Thermal Data Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Capacitor Selection Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties Undervoltage Lockout Enable Feature Current Limit and Thermal Overload Protection Thermal Considerations Printed Circuit Board Layout Considerations Outline Dimensions Ordering Guide
