DescriptionHigh-Performance, 10 A, Dual-Phase DC-DC Converter
Pages / Page44 / 3 — DA9130-A. High-Performance, 10 A, Dual-Phase DC-DC. Converter. System …
File Format / SizePDF / 1.0 Mb
Document LanguageEnglish

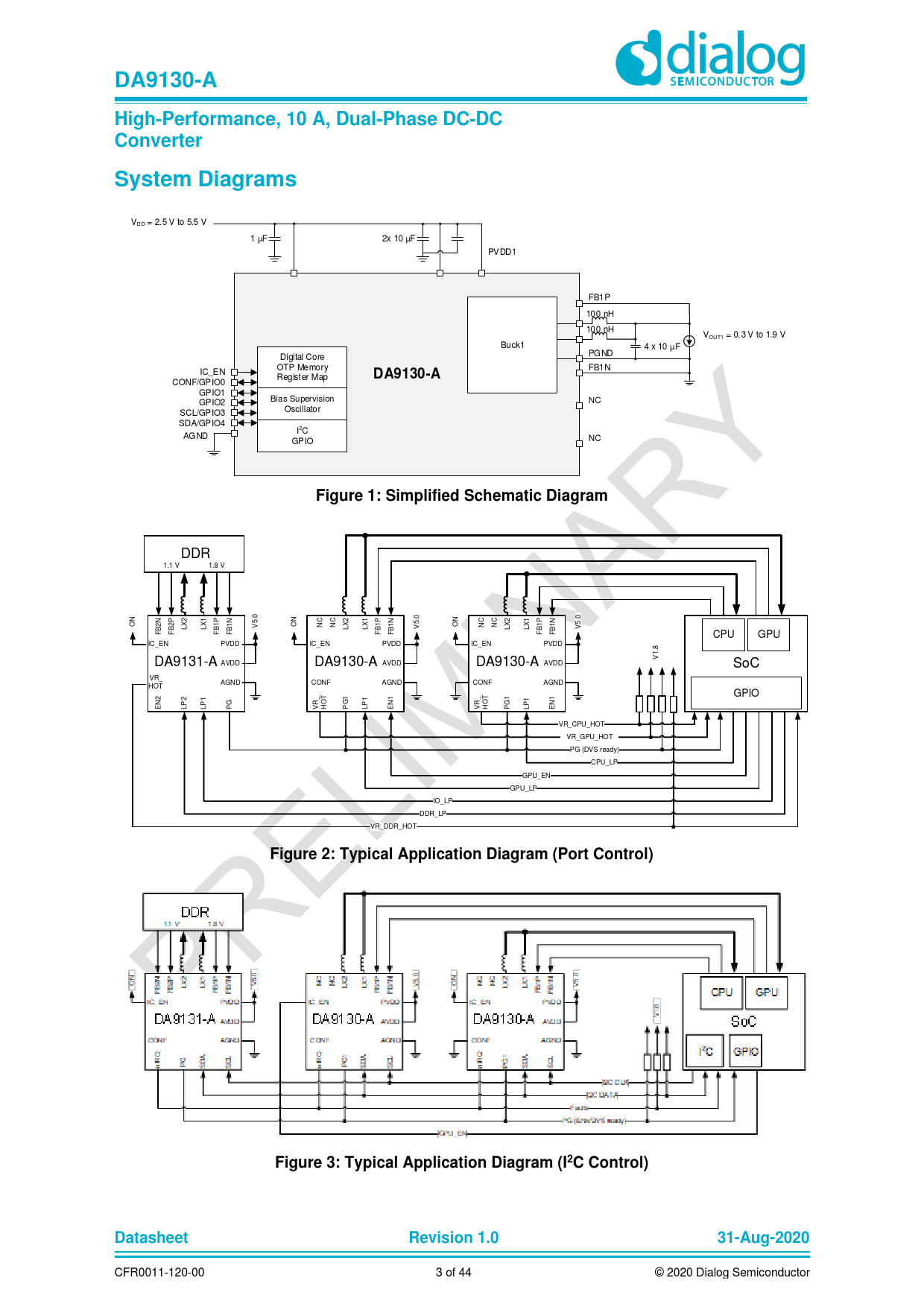

DA9130-A. High-Performance, 10 A, Dual-Phase DC-DC. Converter. System Diagrams. Figure 1: Simplified Schematic Diagram

DA9130-A High-Performance, 10 A, Dual-Phase DC-DC Converter System Diagrams Figure 1: Simplified Schematic Diagram

Model Line for this Datasheet

Text Version of Document

DA9130-A High-Performance, 10 A, Dual-Phase DC-DC Converter System Diagrams
VDD = 2.5 V to 5.5 V 1 µF 2x 10 µF PVDD1 FB1P 100 nH 100 nH VOUT1 = 0.3 V to 1.9 V Buck1 4 x 10 µF Digital Core PGND OTP Memory FB1N IC_EN Register Map
DA9130-A
CONF/GPIO0 GPIO1 Bias Supervision GPIO2 NC SCL/GPIO3 Oscillator SDA/GPIO4 I2C AG ND NC GPIO
Figure 1: Simplified Schematic Diagram
DDR 1.1 V 1.8 V 0. 0 N P 2 1 P 2 1 P . 2 1 0 N 5 N P 5 N . ON 2 2 X X 1 1 V ON X X 1 NC NC 1 ON X X 1 5 V NC NC 1 B B L L B B L L B B L L B B V F F F F F F F F CPU GPU IC_EN PVDD IC_EN PVDD IC_EN PVDD 8.1 DA9131-A AVDD DA9130-A AVDD DA9130-A V AVDD SoC VR_ AGND CONF AGND CONF AGND HOT GPIO 2 2 1 _ T 1 1 1 _ T 1 1 1 N P P R O G P N R O G P N E L L PG V H P L E V H P L E VR_CPU_HOT VR_GPU_HOT PG (DVS ready) CPU_LP GPU_EN GPU_LP IO_LP DDR_LP VR_DDR_HOT
Figure 2: Typical Application Diagram (Port Control) Figure 3: Typical Application Diagram (I2C Control) Datasheet Revision 1.0 31-Aug-2020
CFR0011-120-00 3 of 44 © 2020 Dialog Semiconductor
