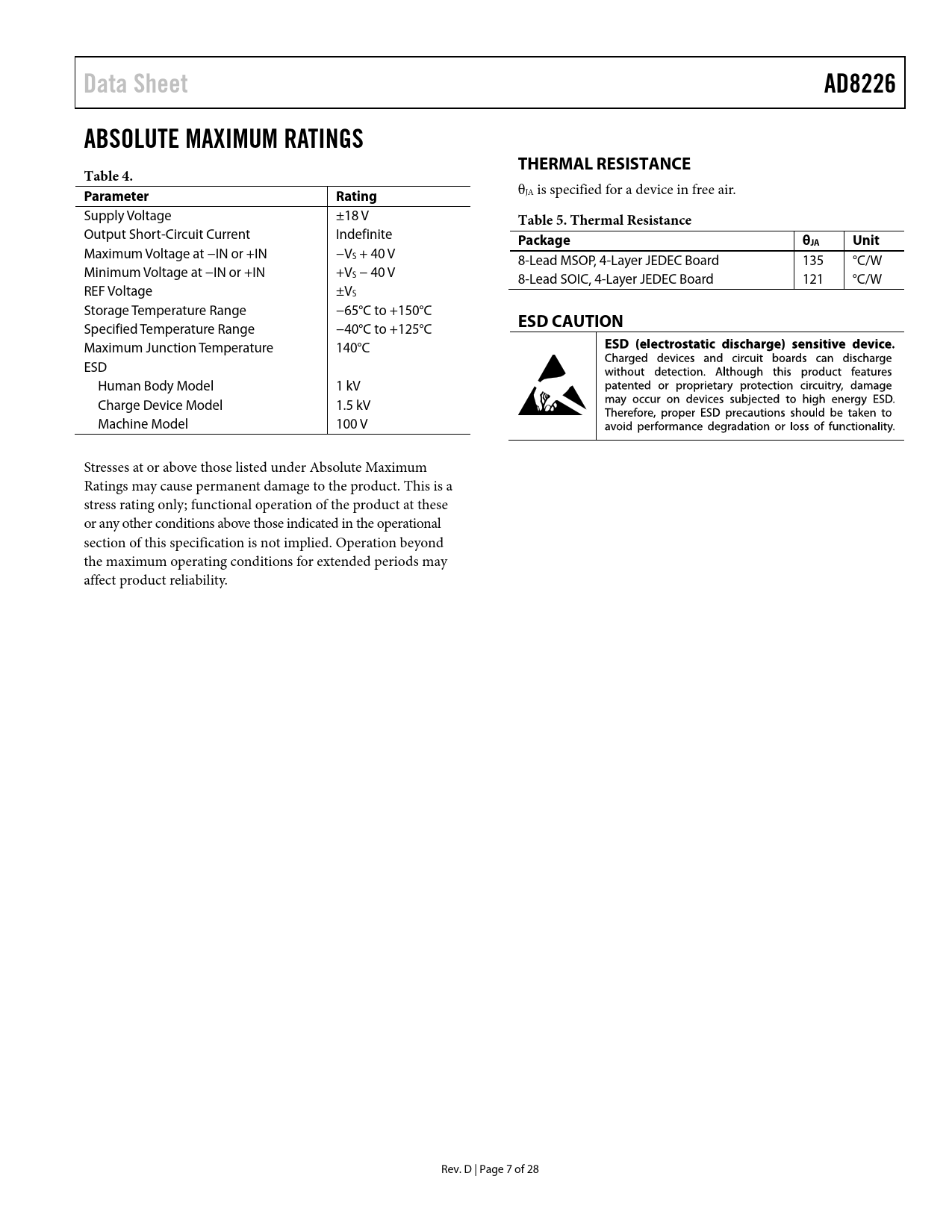

Data Sheet. AD8226. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. Parameter. Rating. Table 5. Thermal Resistance. Package. θJA
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8226 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4. Parameter Rating
θJA is specified for a device in free air. Supply Voltage ±18 V
Table 5. Thermal Resistance
Output Short-Circuit Current Indefinite
Package θJA Unit
Maximum Voltage at −IN or +IN −VS + 40 V 8-Lead MSOP, 4-Layer JEDEC Board 135 °C/W Minimum Voltage at −IN or +IN +VS − 40 V 8-Lead SOIC, 4-Layer JEDEC Board 121 °C/W REF Voltage ±VS Storage Temperature Range −65°C to +150°C Specified Temperature Range −40°C to +125°C
ESD CAUTION
Maximum Junction Temperature 140°C ESD Human Body Model 1 kV Charge Device Model 1.5 kV Machine Model 100 V Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. D | Page 7 of 28 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ARCHITECTURE GAIN SELECTION REFERENCE TERMINAL INPUT VOLTAGE RANGE Performance Across Temperature Recommendation for Best Performance LAYOUT Common-Mode Rejection Ratio Over Frequency Power Supplies References INPUT BIAS CURRENT RETURN PATH INPUT PROTECTION RADIO FREQUENCY INTERFERENCE (RFI) APPLICATIONS INFORMATION DIFFERENTIAL DRIVE Tips for Best Differential Output Performance PRECISION STRAIN GAGE DRIVING AN ADC OUTLINE DIMENSIONS ORDERING GUIDE
