| Manufacturer | Analog Devices |
| Description | Precision Instrumentation Amplifier |
| Pages / Page | 16 / 15 — AD624. OUTLINE DIMENSIONS. Side-Brazed Solder Lid Ceramic DIP. (D-16). … |
| Revision | C |
| File Format / Size | PDF / 397 Kb |
| Document Language | English |

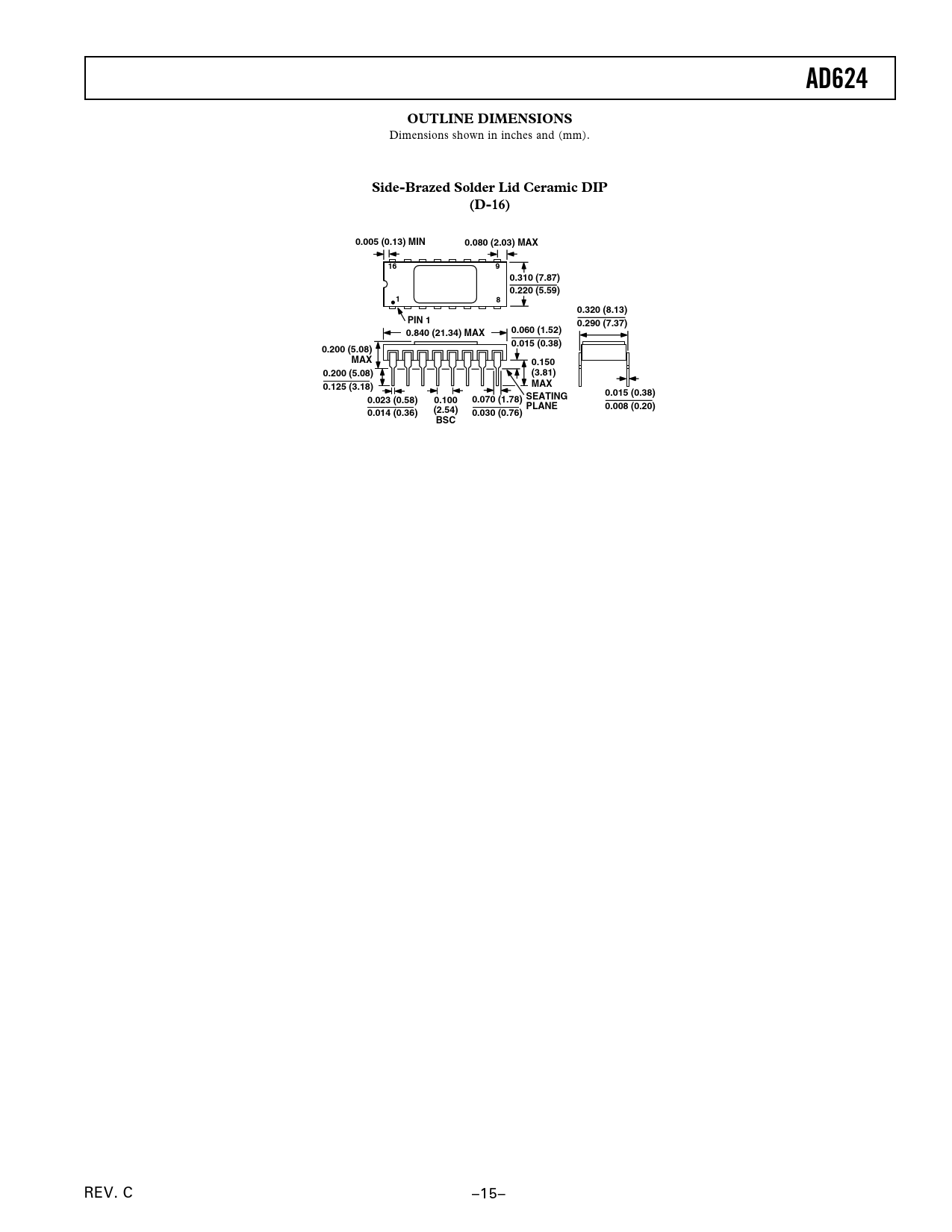

AD624. OUTLINE DIMENSIONS. Side-Brazed Solder Lid Ceramic DIP. (D-16). 0.005 (0.13) MIN. 0.080 (2.03) MAX. 0.310 (7.87). 0.220 (5.59)
Model Line for this Datasheet
Text Version of Document
AD624 OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
Side-Brazed Solder Lid Ceramic DIP (D-16) 0.005 (0.13) MIN 0.080 (2.03) MAX 16 9 0.310 (7.87) 0.220 (5.59) 1 8 0.320 (8.13) PIN 1 0.290 (7.37) 0.060 (1.52) 0.840 (21.34) MAX 0.015 (0.38) 0.200 (5.08) MAX 0.150 0.200 (5.08) (3.81) 0.125 (3.18) MAX 0.015 (0.38) 0.023 (0.58) 0.100 SEATING 0.070 (1.78) (2.54) PLANE 0.008 (0.20) 0.014 (0.36) 0.030 (0.76) BSC
