Datasheet PA22 (Apex) - 6
| Manufacturer | Apex |
| Description | High Voltage Power Operational Amplifiers |
| Pages / Page | 14 / 6 — PA22. OUTPUT. Parameter. Test Conditions. Min. Typ. Max. Units. POWER … |
| File Format / Size | PDF / 3.1 Mb |
| Document Language | English |

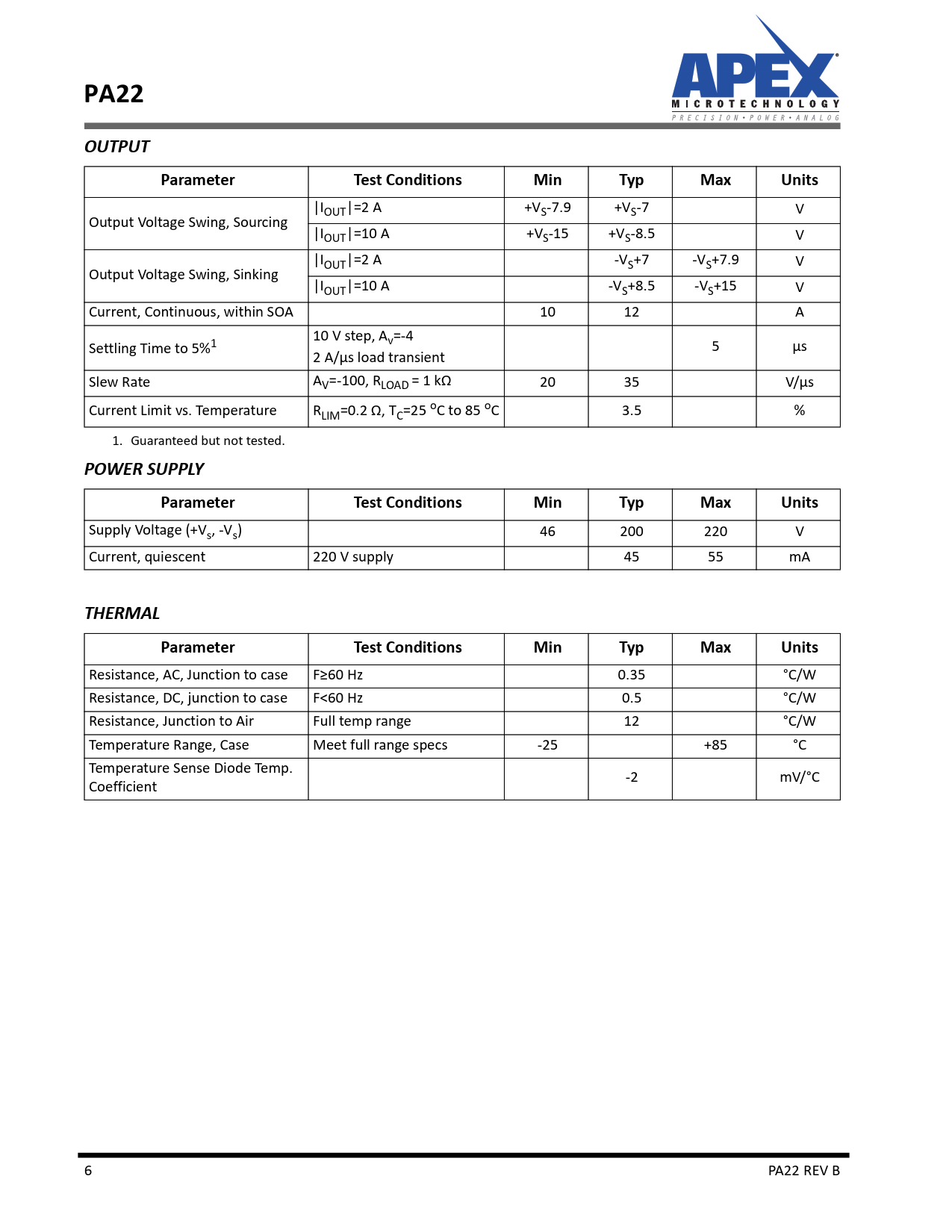

PA22. OUTPUT. Parameter. Test Conditions. Min. Typ. Max. Units. POWER SUPPLY. THERMAL
Model Line for this Datasheet
Text Version of Document
PA22 OUTPUT Parameter Test Conditions Min Typ Max Units
|I Output Voltage Swing, Sourcing OUT|=2 A +VS-7.9 +VS-7 V |IOUT|=10 A +VS-15 +VS-8.5 V |I Output Voltage Swing, Sinking OUT|=2 A -VS+7 -VS+7.9 V |IOUT|=10 A -VS+8.5 -VS+15 V Current, Continuous, within SOA 10 12 A 10 V step, A Settling Time to 5%1 v=-4 5 µs 2 A/µs load transient Slew Rate AV=-100, RLOAD = 1 kΩ 20 35 V/µs Current Limit vs. Temperature RLIM=0.2 Ω, TC=25 oC to 85 oC 3.5 % 1. Guaranteed but not tested.
POWER SUPPLY Parameter Test Conditions Min Typ Max Units
Supply Voltage (+Vs, -Vs) 46 200 220 V Current, quiescent 220 V supply 45 55 mA
THERMAL Parameter Test Conditions Min Typ Max Units
Resistance, AC, Junction to case F≥60 Hz 0.35 °C/W Resistance, DC, junction to case F<60 Hz 0.5 °C/W Resistance, Junction to Air Ful temp range 12 °C/W Temperature Range, Case Meet ful range specs -25 +85 °C Temperature Sense Diode Temp. Coefficient -2 mV/°C 6 PA22 REV B Document Outline Features Applications Description Figure 1: Equivalent Schematic Typical Connection Figure 2: Typical Connection Pinout and Description Table Figure 3: External Connections Specifications Absolute Maximum Ratings Input Gain Output Power Supply Thermal Figure 14: Temp Sense vs Time General Safe operating area (SOA) Figure 15: Safe Operating Area (SOA) typical application Figure 16: Typical Application Schematic current limit overvoltage protection Figure 17: Overvoltage Protection power supply bypassing phase Compensation Temperature Sense Package Options Package Outline (Style LL)
