Datasheet NCR420PAS, NCR421PAS (Nexperia) - 10
| Manufacturer | Nexperia |
| Description | 150 mA LED driver in DFN2020D-6 |
| Pages / Page | 18 / 10 — Nexperia. NCR420PAS / NCR421PAS. 150 mA LED driver in DFN2020D-6. Fig. … |
| Revision | 13052020 |
| File Format / Size | PDF / 438 Kb |
| Document Language | English |
Nexperia. NCR420PAS / NCR421PAS. 150 mA LED driver in DFN2020D-6. Fig. 18. NCR421PAS: Output current as a function of
Model Line for this Datasheet
Text Version of Document
Nexperia NCR420PAS / NCR421PAS 150 mA LED driver in DFN2020D-6
aaa-029351 0.015 aaa-029352 0.06 (3) (2) Iout Iout (1) (A) (3) (A) 0.010 (2) 0.04 (1) 0.005 0.02 0 0 0 4 8 12 0 4 8 12 Vout (V) Vout (V) VEN = 3.3 V; Rext = open VEN = 3.3 V; Rext = 20 Ω (1) Rext = 85 °C (1) Rext = 85 °C (2) Rext = 25 °C (2) Rext = 25 °C (3) Rext = -40 °C (3) Rext = -40 °C

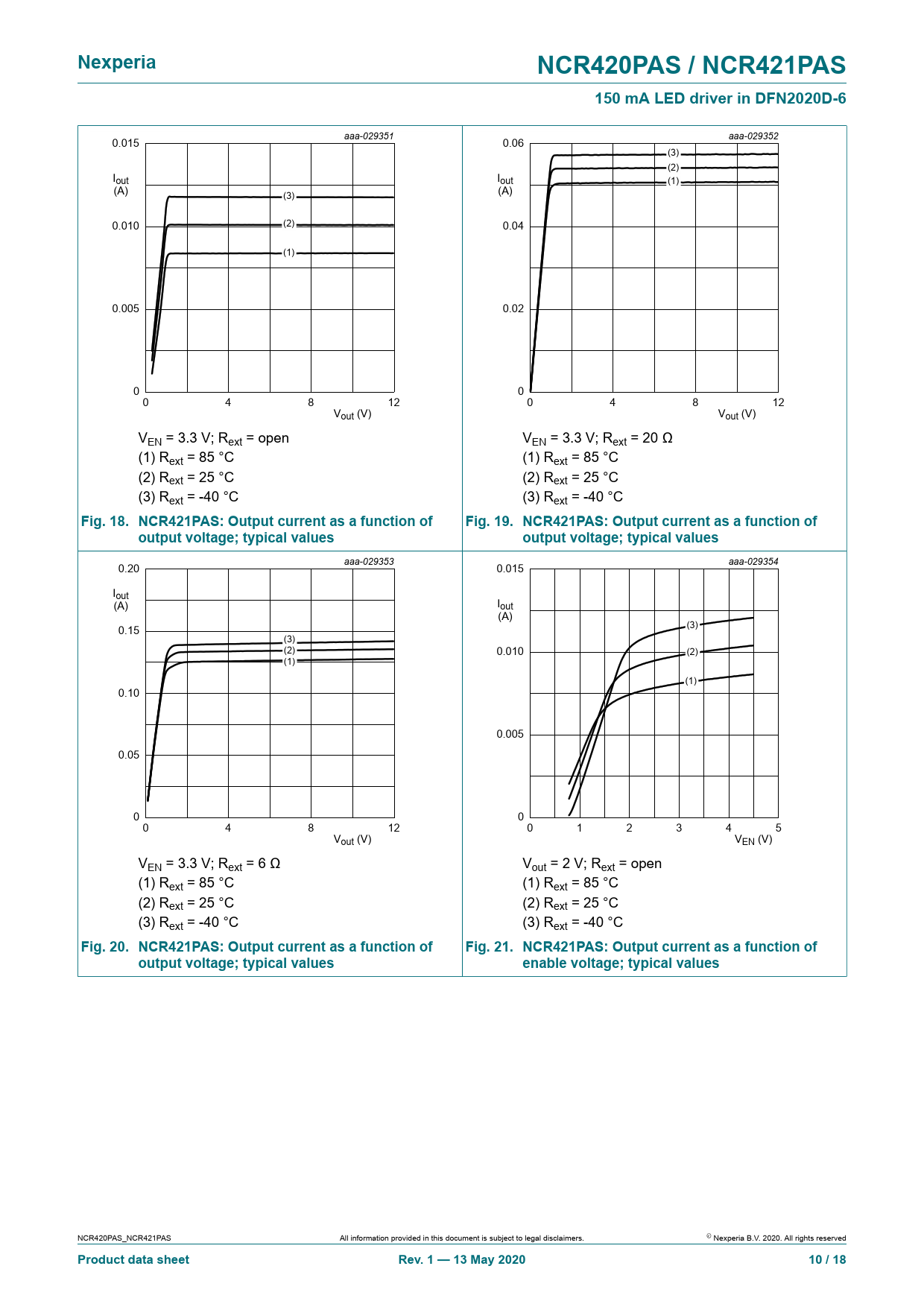

Fig. 18. NCR421PAS: Output current as a function of Fig. 19. NCR421PAS: Output current as a function of output voltage; typical values output voltage; typical values
aaa-029353 0.20 aaa-029354 0.015 Iout (A) Iout (A) 0.15 (3) (3) (2) 0.010 (2) (1) (1) 0.10 0.005 0.05 0 0 0 4 8 12 0 1 2 3 4 5 Vout (V) VEN (V) VEN = 3.3 V; Rext = 6 Ω Vout = 2 V; Rext = open (1) Rext = 85 °C (1) Rext = 85 °C (2) Rext = 25 °C (2) Rext = 25 °C (3) Rext = -40 °C (3) Rext = -40 °C
Fig. 20. NCR421PAS: Output current as a function of Fig. 21. NCR421PAS: Output current as a function of output voltage; typical values enable voltage; typical values
